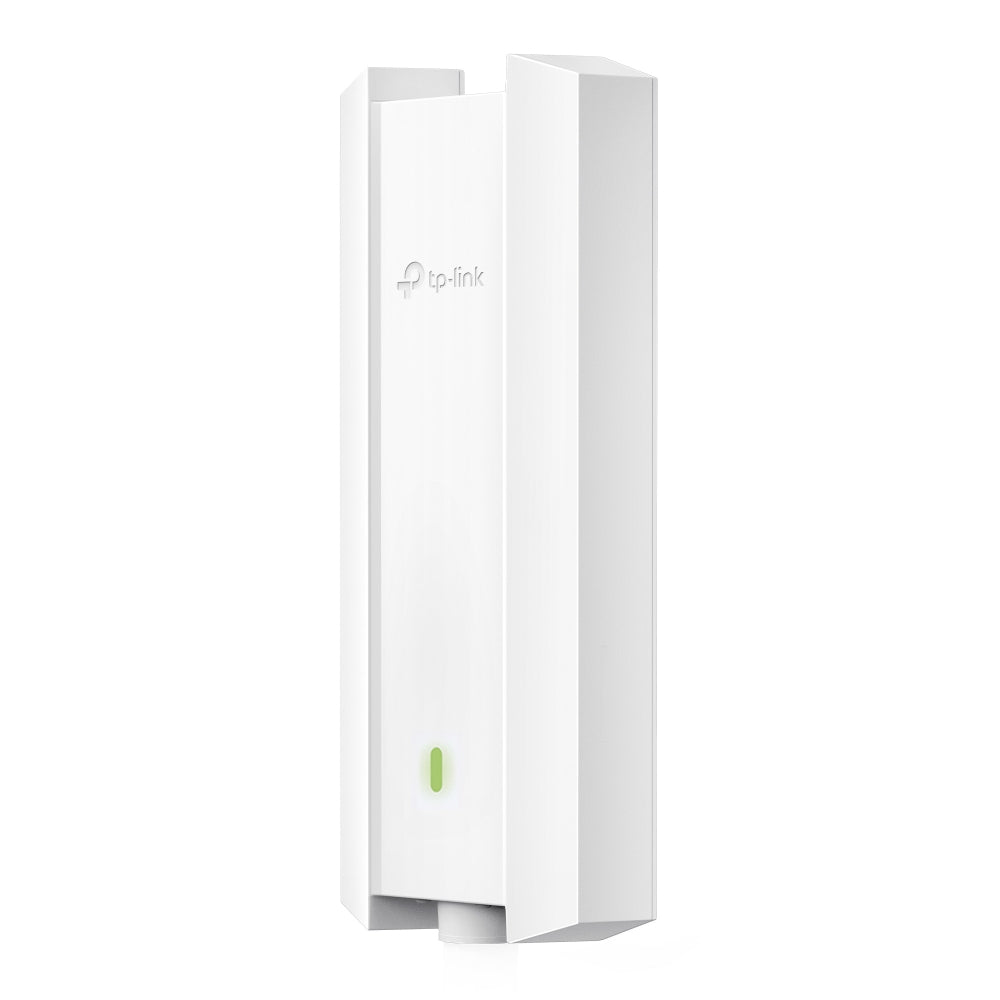

TP-LINK OMADA AX1800 IN/OUT WIFI6 AP

FEATURES • Up to 1.8Gbps Wi-Fi 6 Speeds: 574Mbps on 2.4GHz + 1201Mbps on 5GHz. • Supports Wi-Fi 6 technologies, such as 1024-QAM and OFDMA, etc. • High-density connectivity up to 1,000+ clients. • Long-range coverage with the high-power amplifier and smart antennas. • IP67 weatherproof enclosure for various outdoor environments. • Advanced Functions: Centralised management, Omada mesh, and seamless roaming. • PoE+ Powered: Supports 802.3at PoE (adapter not included). SPECIFICATIONS HARDWARE FEATURES • Interface: 1x Gigabit Ethernet Port • Button: Reset • Power Supply: 802.3at PoE, 48V Passive PoE Note: PoE adapter is not included. • Dimensions ( W x D x H ): 106.5 × 57 × 281mm • Antenna: 2× Internal Dual-Band Omni Antennas • 2.4GHz: 4.0 dBi • 5GHz: 5.0 dBi • Weatherproof Enclosure: IP67 • Mounting: Pole/Wall Mounting (Kits included) WIRELESS FEATURES • Concurrent Clients: 1,020+ • Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax • Frequency: 5GHz, and 2.4GHz • Signal Rate: 5GHz Up to 1201Mbps, 2.4GHz: Up to 574Mbps WIRELESS FUNCTIONS • Mesh • Seamless Roaming (802.11k/v/r) • Automatic Channel Assignment • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDs: 16 (8 for each band) • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • MAC Authentication • Static IP/Dynamic IP WIRELESS SECURITY • VLAN • Access Control • Rogue AP Detection • Captive Portal Authentication • Maximum number of MAC Filter: 4,000 • Wireless Isolation between Clients • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise • 802.1X Support TRANSMISSION POWER • CE: < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP); • FCC: < 25 dBm (2.4 GHz), < 25 dBm (5 GHz) MANAGEMENT FEATURES • Omada App: Yes • Restore & Backup: Yes • Firmware update via Web: Yes • NTP: Yes CENTRALISED MANAGEMENT • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller • Cloud Access: Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller • Email Alerts: Yes • LED ON/OFF Control: Yes • Management MAC Access Control: Yes • SNMP: v1, v2c, v3 • SSH: Yes • Web-based Management: Yes OTHERS • Certification: CE, FCC, RoHS ENVIRONMENT • Operating Temperature: -30 °C–70 °C • Storage Temperature: -40 °C–70 °C • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing
