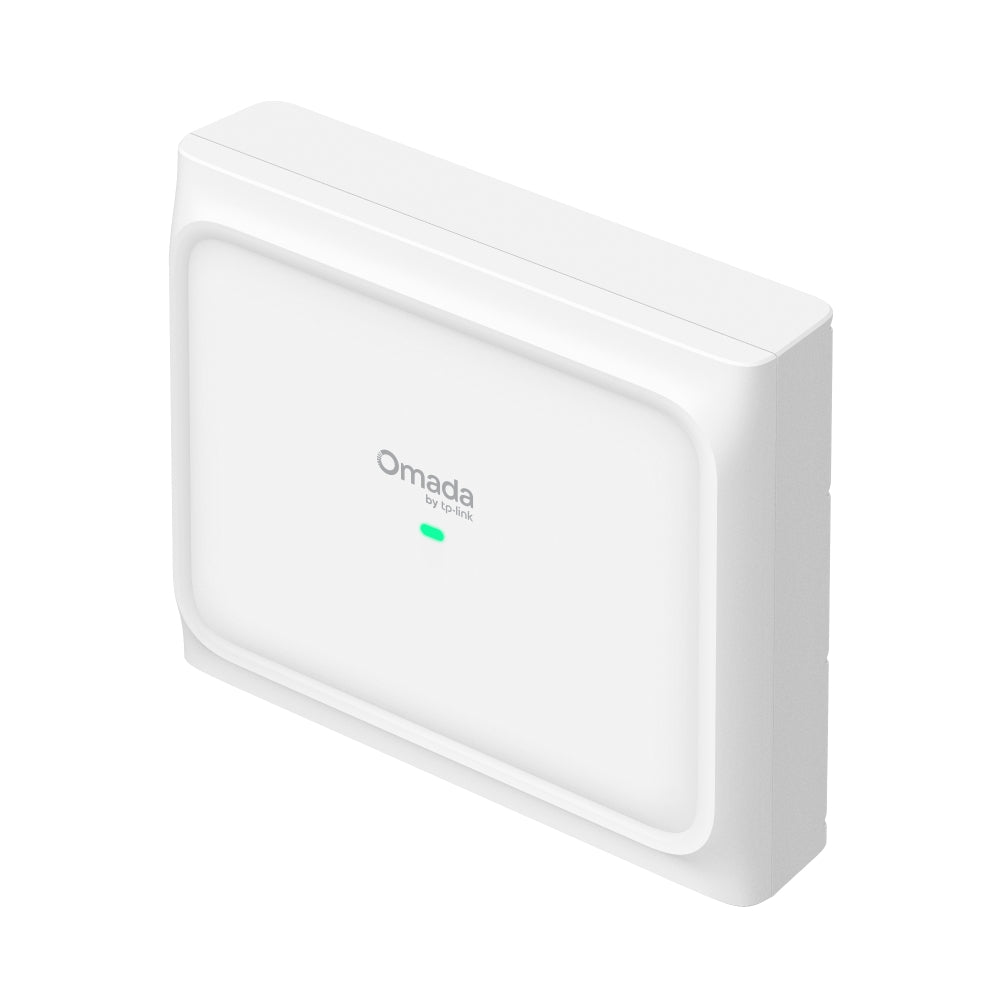

TP-LINK OMADA WIFI6 DUAL BAND OUTDOOR AP

FEATURES • AX3000 Wi-Fi 6 Performance - up to 2,402Mbps (5.0GHz) + 574Mbps (2.4GHz) for high-speed outdoor connectivity • Directional Ultra-Range Coverage - 30° high-gain directional antennas for focused, extended signal reach • IP68 Weatherproof Design - Fully sealed enclosure for reliable operation in harsh outdoor environments • 802.3at PoE+ Support - Simplified deployment with power and data over a single Ethernet cable • 802.11k/v/r Seamless Roaming - Smooth handover for uninterrupted connectivity (ideal for AGVs and mobile devices) • Omada Mesh Technology - Flexible wireless expansion for scalable outdoor networks • Centralised Cloud Management - Full control via Omada SDN platform (cloud or controller-based) • Advanced Security - WPA3 encryption with multi-SSID network segmentation • Flexible Installation - Pole and wall mounting options for versatile deployment SPECIFICATIONS • Wireless Standards: IEEE 802.11a/b/g/n/ac/ax • Frequency: 2.4GHz, 5.0GHz • Signal Rate: Up to 574Mbps (2.4GHz) + 2,402Mbps (5.0GHz) • Concurrent Clients: Up to 250+ • Antenna: Built-In Directional High-Gain Antennas • Built-In Directional Antennas: 2.4GHz: 2× 12dBi; 5.0GHz: 2× 15dBi • Beamwidth: 30° Horizontal; 30° Vertical • Coverage: Directional Ultra-Range Coverage • Wireless Features: DL/UL OFDMA, MU-MIMO, Beamforming, Band Steering, Airtime Fairness • Mesh Technology: Omada Mesh • Roaming: 802.11k/v/r Seamless Roaming • Wireless Security: WPA/WPA2/WPA3-Personal/Enterprise, Captive Portal, MAC Filtering • Interface: 1× Gigabit Ethernet Port • PoE: 802.3at PoE+ or 48V Passive PoE • Max. Power Consumption: 12.5W (802.3at PoE or Passive PoE) • Weatherproof Rating: IP68 • Mounting: Wall/Pole/Ceiling Mount • Bluetooth: Yes • Management: Omada Cloud, Hardware/Software Controller, App, Web UI • Features: VLAN, QoS, Guest Network, RADIUS, Remote Management • Dimensions (W × D × H): 207.5 × 58 × 230mm • Operating Temperature: -30~70°C • Storage Temperature: -40~70°C • Operating Humidity: 10~90% RH, Non-Condensing • Storage Humidity: 5~90% RH, Non-Condensing
