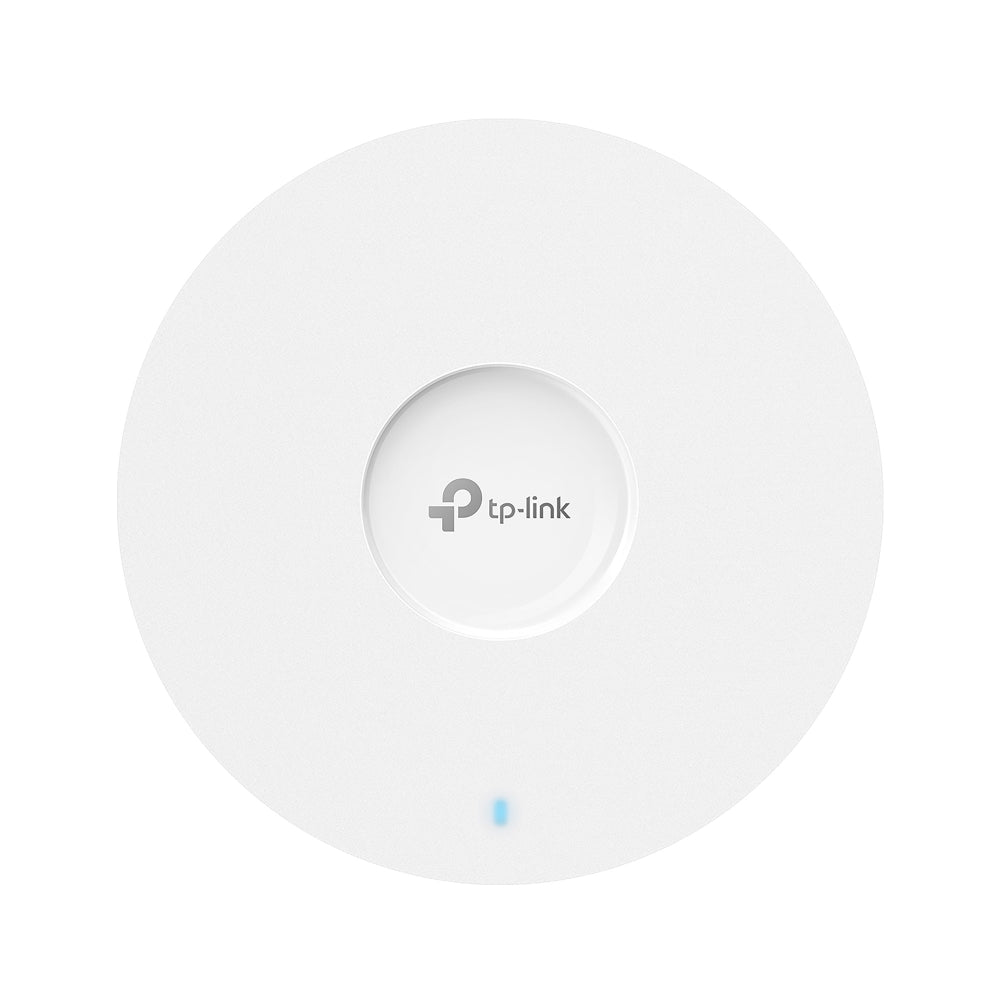

TP-LINK AX5400 CEILING MOUNT WIFI 6 AP

FEATURES • Blazing-Fast Wi-Fi 6 Speeds - 574Mbps on 2.4GHz plus 4,804Mbps on 5.0GHz • Integrated into Omada SDN - Supporting centralised cloud management, ZTP and more • 160MHz Channel - Double the data at peak transmission times on a single stream • Advanced Features - Supports seamless roaming, Omada Mesh and more • Supports both 802.3at PoE+ and DC (Adapter Not Included) Power Supply - For flexible installations SPECIFICATIONS HARDWARE FEATURES • Interface: 1× 2.5Gb Ethernet (RJ45) Port (Supports IEEE 802.3at PoE+) • Button: Reset • Power Supply: 802.3at PoE+ or 12V DC (Adapter Not Included) • Power Consumption: 14.7W • Dimensions: 220 × 220 × 32.5mm • Antennas: Internal Omni Antennas - 2.4GHz: 2× 3dBi - 5.0GHz: 4× 4dBi • Mounting: Ceiling/Wall Mounting Kits Included WIRELESS FEATURES • Wireless Standards: IEEE 802.11ax/ac/n/g/b/a • Frequency: 2.4GHz and 5.0GHz • Signal Rate: - 5.0GHz: up to 4804Mbps - 2.4GHz: up to 574Mbps • 1024-QAM: Yes • OFDMA: Yes • MU-MIMO: Yes • 160MHz Channel Support: Yes • SSIDs: up to 16× SSIDs (8× per Band) • Seamless Roaming: Yes • Omada Mesh: Yes • Band Steering: Yes • Load Balance: Yes • Airtime Fairness: Yes • Beamforming: Yes • QoS (WMM): Yes • Rate Limit: Yes • Reboot Schedule and Wireless Schedule: Yes • Wireless Statistics: Based on SSID/AP/Client WIRELESS SECURITY • Captive Portal Authentication • Access Control • Wireless MAC Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • Encryption: WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise TRANSMISSION POWER • CE: ≤20dBm (2.4GHz, EIRP), ≤23dBm (5.0GHz, EIRP) • FCC: ≤25dBm (2.4GHz), ≤25dBm (5.0GHz) MANAGEMENT • Omada App: Yes • Centralised Management: Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller • Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller or Omada Software Controller) • Email Alerts: Yes • LED On/Off Control: Yes • Management MAC Access Control: Yes • SNMP: v1, v2c, v3 • System Logging: Local/Remote Syslog • SSH: Yes • Web-Based Management: HTTP/HTTPS • L3 Management: Yes • Multi-Site Management: Yes • Management VLAN: Yes • Zero-Touch Provisioning: Yes (Requires Omada Cloud-Based Controller) CERTIFICATION • CE • FCC • RoHS ENVIRONMENT • Operating Temperature: 0~40°C • Storage Temperature: -40~70°C • Operating Humidity: 10~90% RH (Non-Condensing) • Storage Humidity: 5~90% RH (Non-Condensing)
