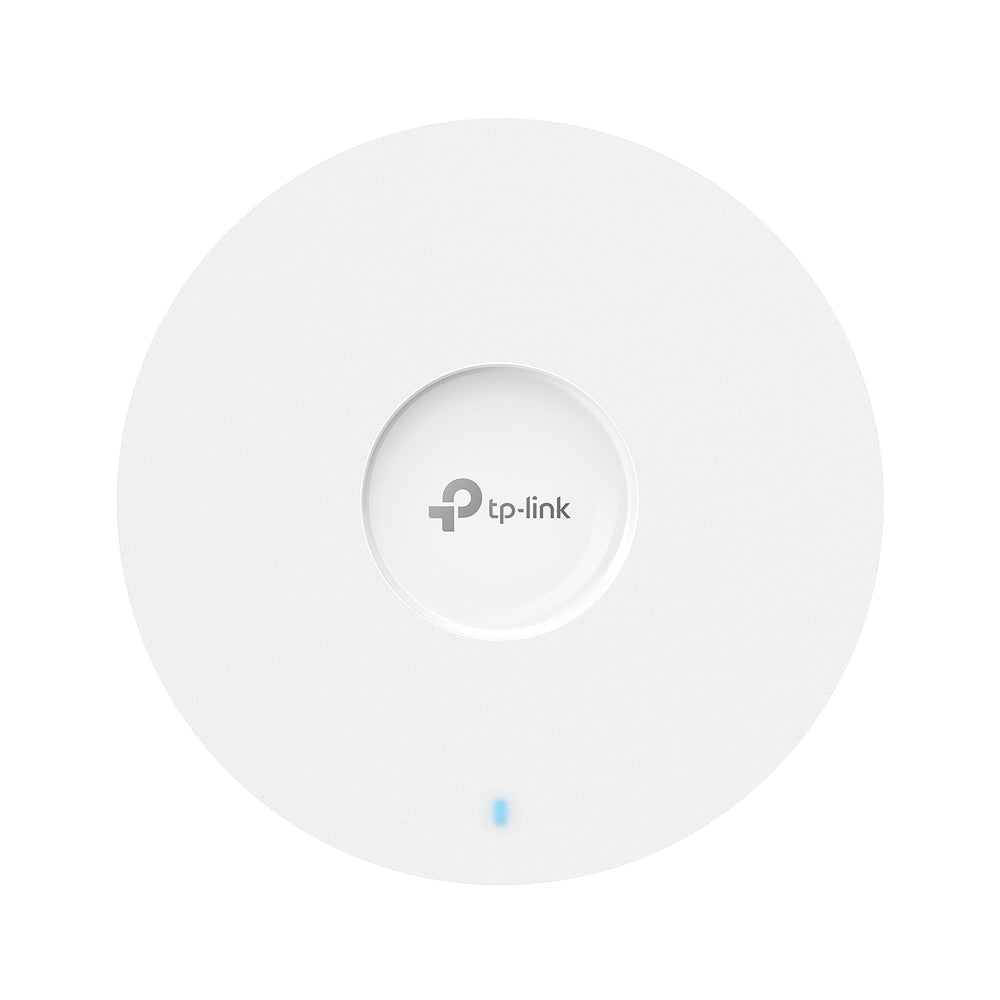

TP-LINK OMADA AX6000 WIFI6 AP ULTRA

FEATURES • Up to 5952Mbps Wi-Fi 6 Speeds: 1148Mbps on 2.4GHz + 4804Mbps on 5GHz • Ultra-range wireless coverage by 4×4 MIMO dual-band internal antennas with high transmission power • Supports Wi-Fi 6 technologies, such as HE160, 1024-QAM, etc • Integrates with the Omada SDN platform for centralized management • Advanced Features: Omada Mesh, Seamless Roaming, and more • PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included) SPECIFICATIONS HARDWARE FEATURES • Interface: 1× 2.5 Gigabit PoE+ Port • Button: Reset • Power Supply: - 802.3at PoE - 12 V / 2 A DC Note：Power adapter is not included • Max. Power Consumption: 20.43W • Dimensions ( W x D x H ): 220 × 220 × 32.5mm • Antenna: Internal Omni: - 2.4GHz: 4× 4dBi - 5GHz: 4× 5dBi • Bluetooth: Yes • Mounting: Ceiling / Wall Mounting (Kits included) WIRELESS FEATURES • Coverage: 185m² • Concurrent Clients: 510+ • Wireless Standards: IEEE 802.11ax/ac/n/g/b/a • Frequency: 2.4GHz and 5GHz • Signal Rate: - 5GHz: Up to 4804Mbps - 2.4GHz: Up to 1148Mbps WIRELESS FUNCTIONS • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • MU-MIMO • HE160 (160MHz Bandwidth) • Seamless Roaming • Omada Mesh • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client WIRELESS SECURITY • Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise • Transmission Power: - CE: <20 dBm(2.4 GHz, EIRP) - <23 dBm(5 GHz, band1 & band2, EIRP) - <28 dBm(5 GHz, band3, EIRP) - FCC: <26 dBm (2.4 GHz) - <26 dBm (5 GHz) MANAGEMENT FEATURES • Omada App: Yes • CentraliSed Management: - Omada Hardware Controller (OC300) - Omada Hardware Controller (OC200) - Omada Software Controller - Omada Cloud-Based Controller • Cloud Access: Yes Require the use of OC300, OC200, Omada Cloud-Based Controller or Omada Software Controller • Email Alerts: Yes • LED ON/OFF Control: Yes • Management MAC Access Control: Yes • SNMP: v1, v2c, v3 • System Logging Local/Remote Syslog: Local/Remote Syslog • SSH: Yes • Web-based Management: HTTP/HTTPS • L3 Management: Yes • Multi-site Management: Yes • Management VLAN: Yes • Zero-Touch Provisioning: Yes. Require the use of Omada Cloud-Based Controller OTHERS • Certification: CE,FCC,RoHS • System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux • Environment: - Operating Temperature: 0–40 °C - Storage Temperature: -40–70 °C - Operating Humidity: 10–90% RH non-condensing - Storage Humidity: 5–90% RH non-condensing
