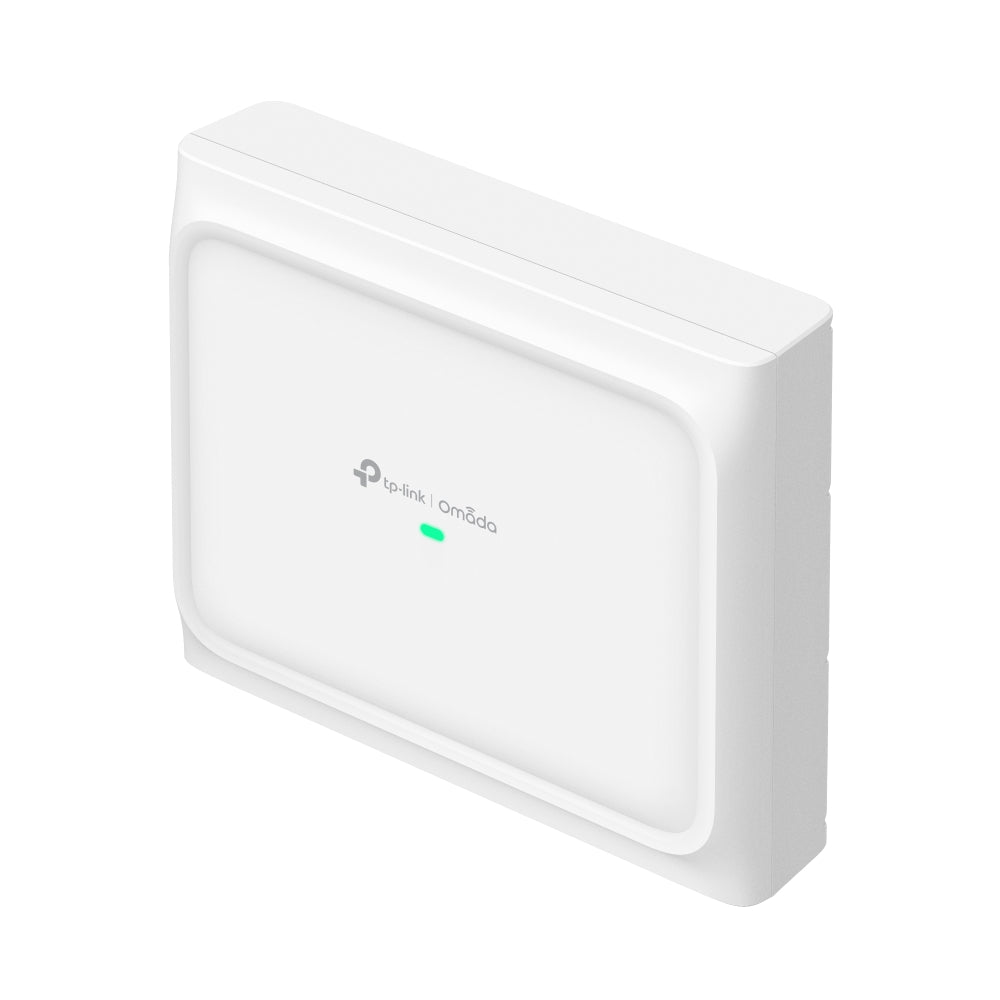

TP-LINK OMADA BE9300 TRI-BAND WIFI7 OUTDOOR AP

FEATURES • BE9300 Tri-Band Wi-Fi 7 (5765Mbps on 6GHz + 2882Mbps on 5GHz + 688Mbps on 2.4GHz) • A clear 6GHz band brings cleaner and wider band resources • 1× 2.5G Port unlocks the full potential of Wi-Fi 7 • 320MHz bandwidth enables many more simultaneous transmissions • Multi-Link Operation and Multi-RUs ensure the high performance of your network • Advanced Functions: Centralized management, mesh, and AI roaming SPECIFICATIONS HARDWARE FEATURES • Interface: 1× 2.5G Ethernet Port • Button: Reset • Power Supply: 802.3at PoE or 12V/2.5A DC • Max. Power Consumption: - 24.05 W (For PoE); - 20.92 W (For DC) • Dimensions ( W x D x H ): 220 × 220 × 32.5mm • Antenna: - 2.4 GHz: 2× 4.0 dBi - 5 GHz: 2× 5.0 dBi - 6 GHz: 2× 5.0 dBi • Bluetooth: 1 × 4.0 dBi, Bluetooth 5.2 • Mounting: Ceiling / Wall Mounting (Kits Included) WIRELESS FEATURES • Coverage: 140m² • Concurrent Clients: 380 • Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be • Frequency: 6GHz, 5GHz, and 2.4GHz • Signal Rate: 688Mbps (2.4GHz) + 2882Mbps (5GHz) + 5765Mbps (6GHz) WIRELESS FUNCTIONS • MLO • 4K-QAM • Seamless Roaming (802.11k/v/r) • MU-MIMO • EHT320 • Mesh • BSS Coloring • OFDMA • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS: 24 (8 on each band) • Wireless Schedule • Reboot Schedule • QoS (WMM) • Rate Limit • Static IP/Dynamic IP • RADIUS Accounting • MAC Authentication Wireless Security: • Captive Portal Authentication • Access Control • Maximum number of MAC Filter: 4,000 • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise • Transmission Power: - < 20 dBm (2.4 GHz, EIRP) - < 23 dBm (5 GHz, band 1&band 2, EIRP) - < 28 dBm (5 GHz, band 3, EIRP) - < 23dBm (6 GHz, EIRP) MANAGEMENT FEATURES • Omada App: Yes • Centralized Management: - Omada Cloud-Based Controller - Omada Hardware Controller (OC300) - Omada Hardware Controller (OC200) - Omada Software Controller • Cloud Access: Yes. Require the use of an OC300, OC200, Omada Software Controller or an Omada Cloud-Based Controller • Email Alerts: Yes • LED ON/OFF Control: Yes • Management MAC Access Control: Yes • SNMP: v1, v2c, v3 • System Logging Local/Remote Syslog: Yes • Web-based Management: Yes OTHERS • Certification: CE, FCC, RoHS, IC • Environment: - Operating Temperature: 0°C–40°C; - Storage Temperature: -40°C–70°C; - Operating Humidity: 10%–90% non-condensing; - Storage Humidity: 5%–90% non-condensing; Note: Power Adapter is NOT included
