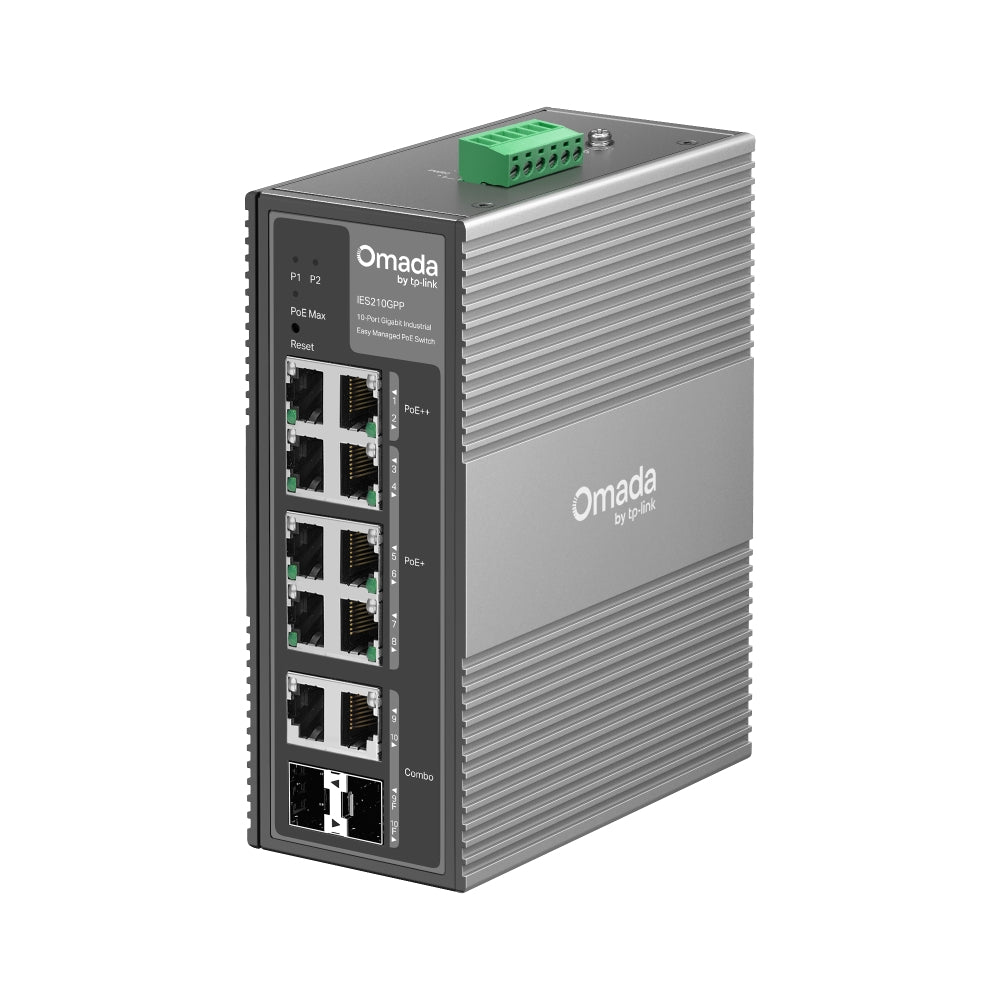

TP-LINK OMADA INDUSTRIAL 10P MANAGED 8P POE

FEATURES • 8× Gigabit RJ45 Ports (2× PoE++, 6× PoE+) • 2× Gigabit Combo RJ45/SFP Slots • 240W Power Budget* with up to 60W for Each PoE++ Port • Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input • Abundant Features: Up to 820ft (250m) PoE, VLAN, QoS, and STP/RSTP • Centralized Cloud Management via the Web or Omada App • Durable IP40 Aluminium Casing and DIN-rail / Wall-mount Design SPECIFICATIONS HARDWARE FEATURES Interface: • 2× 10/100/1000 Mbps PoE++ RJ45 Ports • 6× 10/100/1000 Mbps PoE+ RJ45 Ports • 2× Gigabit SFP/RJ45 Combo Slots • Auto-Negotiation/Auto MDI/MDIX Fan Quantity: Fanless Installation: • DIN-rail mounting • Wall mounting Physical Security Lock: Yes Power Supply: 12-57V 1+1 Redundant DC Power Input PoE Ports (RJ45): • Standard: 802.3af/at/bt compliant • PoE++ Ports (802.3af/at/bt PoE): 2 Ports, up to 60W per port • PoE+ Ports (802.3af/at PoE): 6 Ports, up to 30W per port • PoE Budget: - 60W (Input: 12V / 7.2A - 21V / 3.7A)) - 120W (Input: 21V / 6.7A - 46V / 3.1A) - 240W (Input: 46V / 5.7A - 57V / 4.4A) Dimensions ( W x D x H ): 155 × 120 × 60mm Surge Protection: • ±6 kV in common mode for Ethernet ports • ±4 kV in common mode for DC power input ports PERFORMANCE Switching Capacity: 20Gbps Packet Forwarding Rate: 14.88 Mpps MAC Address Table: 8K Packet Buffer Memory: 4 Mbit Jumbo Frame: 15 KB SOFTWARE FEATURES Quality of Service: • 802.1p DSCP Priority • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rate Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control L2 Features: • Link Aggregation - Static Link Aggregation - Up to 4 aggregation groups and up to 6 ports per group • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP • Spanning Tree - STP (802.1d) - RSTP (802.1w) L2 Multicast: • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave VLAN: • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID Transmission Method: Store-And-Forward MANAGEMENT FEATURES Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Centralized Management: • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller Cloud Access: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller Zero-Touch Provisioning: Yes. Requires the use of Omada Cloud-Based Controller Management Features: • Web-based GUI • DHCP Client • Cable Diagnostics • Digital Diagnostic Monitoring (DDM) • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Unified Configuration OTHERS Certification: FCC, CE, RoHS Environment • Operating Temperature: -40°C~75°C • Storage Temperature: -40°C~85°C • Operating Humidity: 5%~95% non-condensing • Storage Humidity: 5%~95% non-condensing
