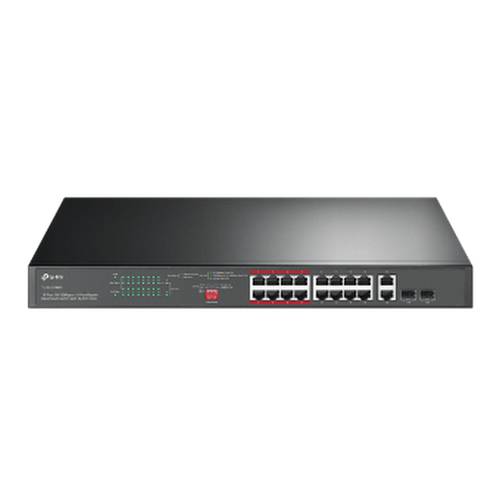

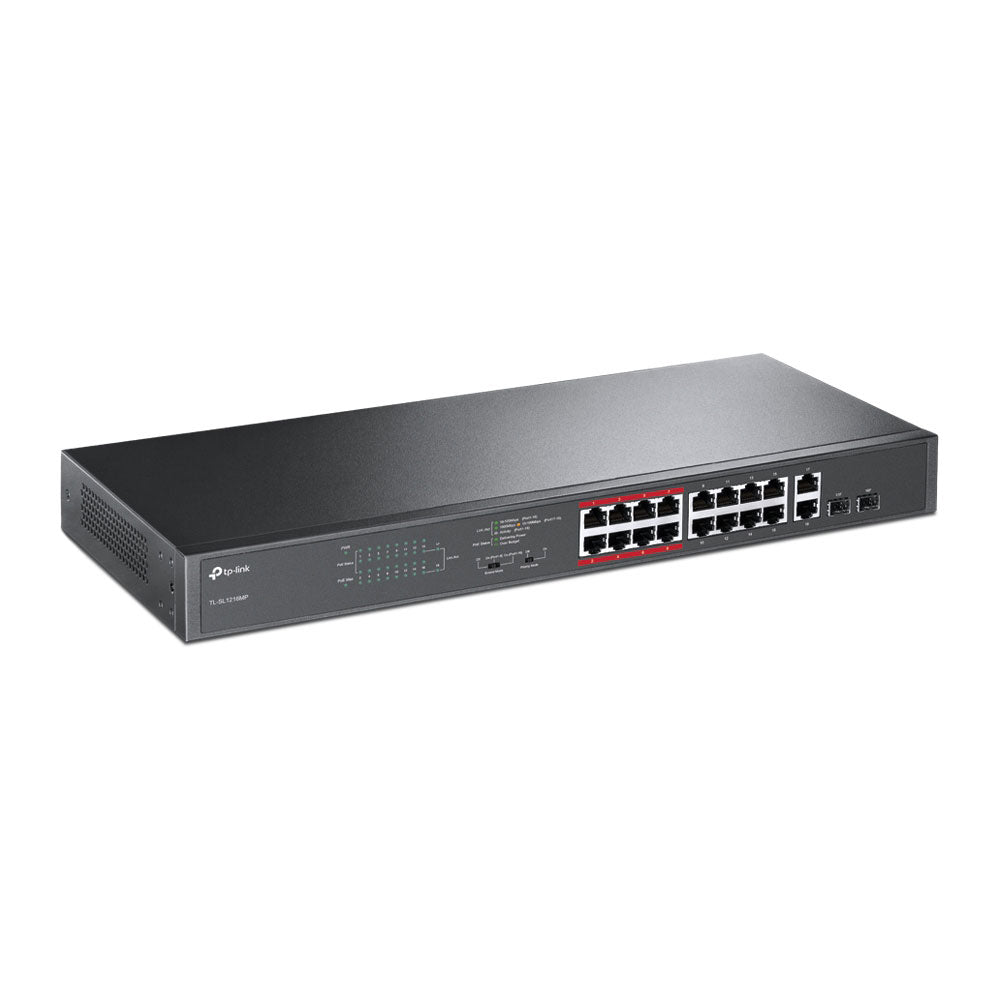

TP-LINK 16-PORT ADV FE POE+ 2P GBE, 2P GBE SFP

FEATURES • 16 PoE+ 10/100Mbps RJ45 ports, 2 Gigabit RJ45 ports and 2 combo Gigabit SFP slots • Up to 250m data and power transmission under extend mode specially designed for surveillance system • Priority mode for port1-8 to guarantees the quality of sensitive applications like video monitor • High PoE power budget with up to 30W for each PoE port and 192W for all PoE ports • Easy to use, with no configuration and installation needed SPECIFICATIONS HARDWARE FEATURES • Interface: 16 PoE+ 10/100Mbps RJ45 Ports • 2 10/100/1000Mbps RJ45 Ports • 2 Combo Gigabit SFP Slots • Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-X MMF, SMF • Fan Quantity: 2 Fans • Physical Security Lock: Yes • Power Supply: 100-240V AC, 50/60 Hz • Backup Bandwidth: 7.2 Gbps • PoE+ Ports(RJ45): Standard: 802.3at/802.3af compliant • PoE Ports: Port1- Port16 • PoE Power Budget: 192W • Mac Address Table: 8K • Dimensions (W x D x H) 440 × 180 × 44mm • Max Power Consumption: 18.73W (220/50Hz. no PD connected) • 217.22 W (220/50Hz. with 192W PD connected) • Max Heat Dissipation: 63.89 BTU/h (no PD connected) • 741.15 BTU/h (with 192W PD connected) SOFTWARE FEATURES • Advanced Features: Compatible With IEEE 802.3at/af Compliant PDs • Port Priority Mode • Extend Mode (Up to 250m PoE power supply and data transmission) • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control • Transmission Method: Store-And-Forward OTHERS • Certification: CE, FCC, RoHS
