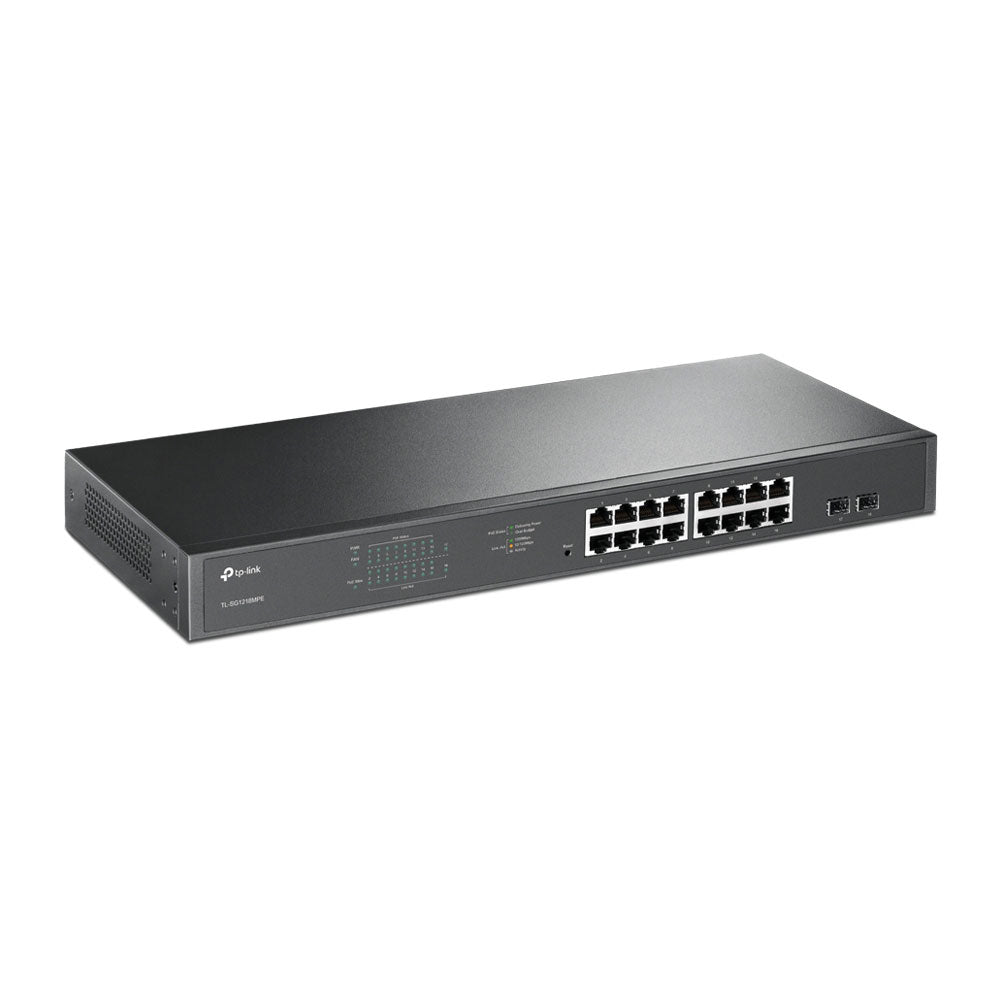

TP-LINK 16-P GBIT POE+ SMART SWITCH

FEATURES • 16 10/100/1000Mbps RJ45 POE+ Ports Switch • PoE power budget is up to 192W, making it ideal for small to medium business surveillance systems • Port Priority is able to  guarantee the quality of sensitive application like video monitor • Intelligent power management can protect the switch from overload • QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimising traffic for IPTV SPECIFICATIONS HARDWARE FEATURES • Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x • IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p • Interface: 16 10/100/1000 Mbps RJ45 Ports • (Auto Negotiation/Auto MDI/MDIX) • 2 Gigabit SFP Ports • Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-X MMF, SMF • Fan Quantity: 2 Fans • Physical Security Lock: Yes • Power Supply: 100-240V AC, 50/60 Hz • PoE+ Ports(RJ45): Standard: 802.3at/802.3af compliant • PoE+ Ports: 16 Ports • Power Supply: 192W • Dimensions (W x D x H): 440 × 180 × 44mm • Mounting: Rack Mountable • Max Power Consumption: 18.73 W (220/50Hz. no PD connected) • 217.22 W (220/50Hz. with 192W PD connected) • Max Heat Dissipation63.89 BTU/h (no PD connected) • 741.15 BTU/h (with 192W PD connected) PERFORMANCE • Switching Capacity: 36 Gbps • Packet Forwarding Rate: 23.8 Mbps • MAC Address Table: 8K • Packet Buffer Memory: 4.1 Mbit • Jumbo Frame: 9 KB SOFTWARE FEATURES • Quality of Service: Support Port-based 802.1p/DSCP priority • Support 4 priority queues • Rate Limit • Storm Control • L2 Features: IGMP Snooping V1/V2/V3 • Static Link Aggregation • Port Mirroring • Cable Diagnostics • Loop Prevention • VLAN: Support up to 32 VLANs simultaneously (out of 4K VLAN IDs) • MTU/Port/Tag VLAN • Management: Web-based GUI • Easy Smart Configuration Utility • Transmission Method: Store-And-Forward OTHERS • Certification: CE, FCC, RoHS
