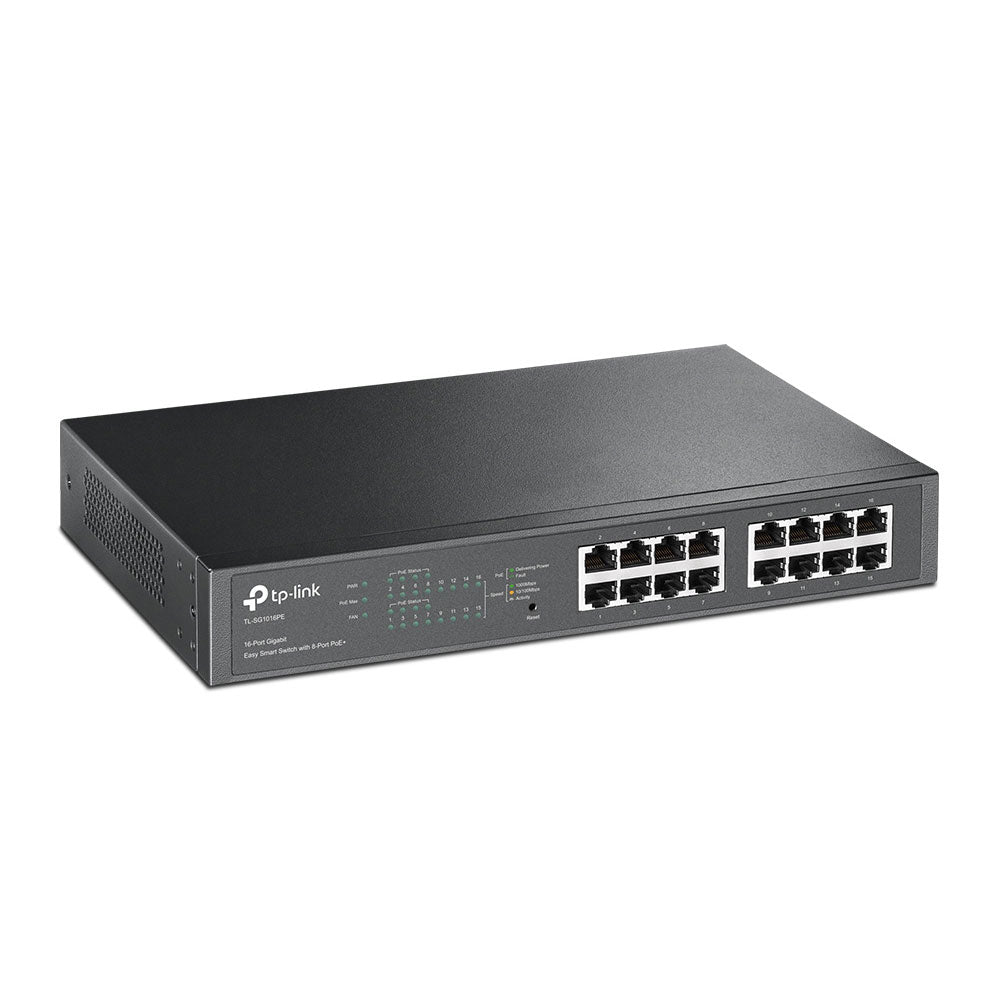

TP-LINK 16-PORT GBE 8-PORT POE+ EASY SMART SWITCH

FEATURES • 16 10/100/1000Mbps RJ45 ports • Equipped with 8 PoE+ supported ports to transfer data and power over a single cable • With a total PoE power budget of 110W, up to 30W per port • Works with IEEE 802.3af/at compliant devices, expanding home and office networks • Simple network set-up on top of plug-and-play connectivity • Web-based user interface and management utility simplify configuration SPECIFICATIONS HARDWARE FEATURES • Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p • Interface: 16 10/100/1000Mbps RJ45 Ports • AUTO Negotiation/AUTO MDI/MDIX • Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • Fan Quantity: 1 • Physical Security Lock: Yes • Power Consumption: Maximum: 124.4W (220V/50Hz) • PoE Ports (RJ45): Standard: 802.3 at compliant • PoE Ports: Port 1- Port 8 • PoE Power Budget: 110W • Dimensions (W x D x H): 294 x 180 x 44mm • Mounting: Rack Mountable • Max Power Consumption: 14.72W (110V/60Hz with no PD connected) • 131.42W (110V/60Hz with 110W PD connected) • Max Heat Dissipation: 50.22 BTU/h (with no PD connected) • 448.41 BTU/h (with 110W PD connected) PERFORMANCE • Switching Capacity: 32Gbps • Packet Forwarding Rate: 23.8Mbps • MAC Address Table: 8K • Packet Buffer Memory: 4.1Mbit • Jumbo Frame: 9KB SOFTWARE FEATURES • Quality of Service: Support Port-Based/802.1p/DSCP priority • Support 4 priority queues • Rate Limit • Storm Control • L2 Features: IGMP Snooping V1/V2/V3 • Static Link Aggregation • Port Mirroring • Cable Diagnostics • Loop Prevention • VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) • MTU/Port/Tag VLAN • Management: Web-based GUI • Easy Smart Configuration Utility • Transmission Method: Store-And-Forward OTHERS • Certification: FCC, CE, RoHS • System Requirements: Microsoft Windows for running Utility
