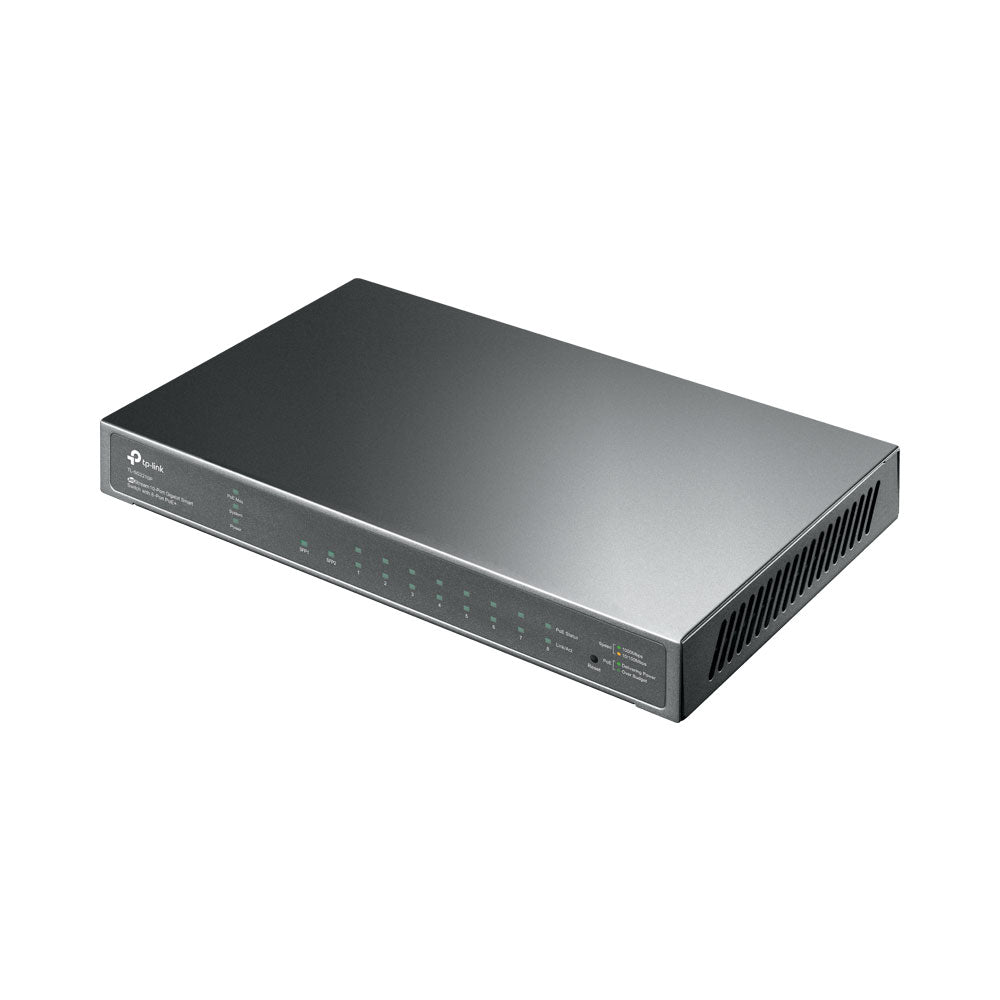

TP-LINK 8-PORT POE VLAN QOS DESKTOP SWITCH

FEATURES Features 8 PoE+ ports, with total PoE power budget of 58W and useful PoE power management features • Gigabit Ethernet connections on all ports provide full speed of data transferring • Integrated security strategy including 802.1Q VLAN, ACL, Port Security and Storm control help protect LAN area investment • L2/L3/L4 QoS and IGMP snooping optimise voice and video applications • WEB/CLI managed modes, SNMP, RMON bring abundant management features • Innovative energy-efficient technology saves up to 50% of power consumption SPECIFICATIONS HARDWARE FEATURES • Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, • IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, • IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x • Interface: 8 10/100/1000Mbps RJ45 Ports • 2 1000Mbps SFP Slots • (Auto-Negotiation/Auto MDI/MDIX) • Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) • 1000BASE-X: MMF, SMF • Fan Quantity: Fanless • Power Supply: 100~240VAC, 50/60Hz • External Power Adapter(Output: 53.5VDC/1.31A) • Power Consumption: Maximum (PoE on): 75.3W (220V/50Hz) • Maximum (PoE off): 10.5W (220V/50Hz) • PoE Ports (RJ45)Standard: 802.3af/at compliant • PoE Ports: 8 Ports • Power Supply: 58W* • Dimensions ( W x D x H ) 209 x 126 x 26mm PERFORMANCE • Bandwidth/Backplane: 20Gbps • Packet Forwarding Rate: 14.88Mpps • MAC Address Table8k • Packet Buffer Memory: 512KB • Jumbo Frame: 9216 Bytes SOFTWARE FEATURES • Quality of Service: Support 802.1p CoS/DSCP priority • Support 8 priority queues • Queue scheduling: SP, WRR, SP+WRR • Port/Flow- based Rate Limiting • Voice VLAN • VLAN: Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs) • Access Control List: L2~L4 package filtering based on source and destination • MAC address, IP address, TCP/UDP ports, 802.1p, • DSCP, protocol and VLAN ID • Time Range Based • Security: SSH v1/v2 • SSL v2/v3/TLSv1 • Port Security • Broadcast/Multicast/Unknown unicast Storm Control • 802.1x and Radius Authentication、IP-Mac-Port-VID Binding、ARP Inspection、DHCP Snooping、DoS Defend • L2 Switching Features: IGMP Snooping V1/V2/V3 • 802.3ad LACP (Up to 6 aggregation groups, • containing 4 ports per group) • Spanning Tree STP/RSTP/MSTP • BPDU Filtering/Guard • TC/Root Protect • Loop back detection • 802.3x Flow Control • LLDP(LLDP-MED) • Management: Web-based GUI and CLI management • SNMP v1/v2c/v3, compatible with public MIBs and • TP-LINK private MIBs • RMON (1, 2, 3, 9 groups) • CPU Monitoring • Port Mirroring • Time Setting: SNTP • Firmware Upgrade: TFTP & Web • System Diagnose: VCT • SYSLOG & Public MIBS OTHERS • Certification: CE, FCC, RoHS • Environment: Operating Temperature: 0~40°C • Storage Temperature: -40~70°C • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing • System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8, MAC OS, NetWare, UNIX or Linux
