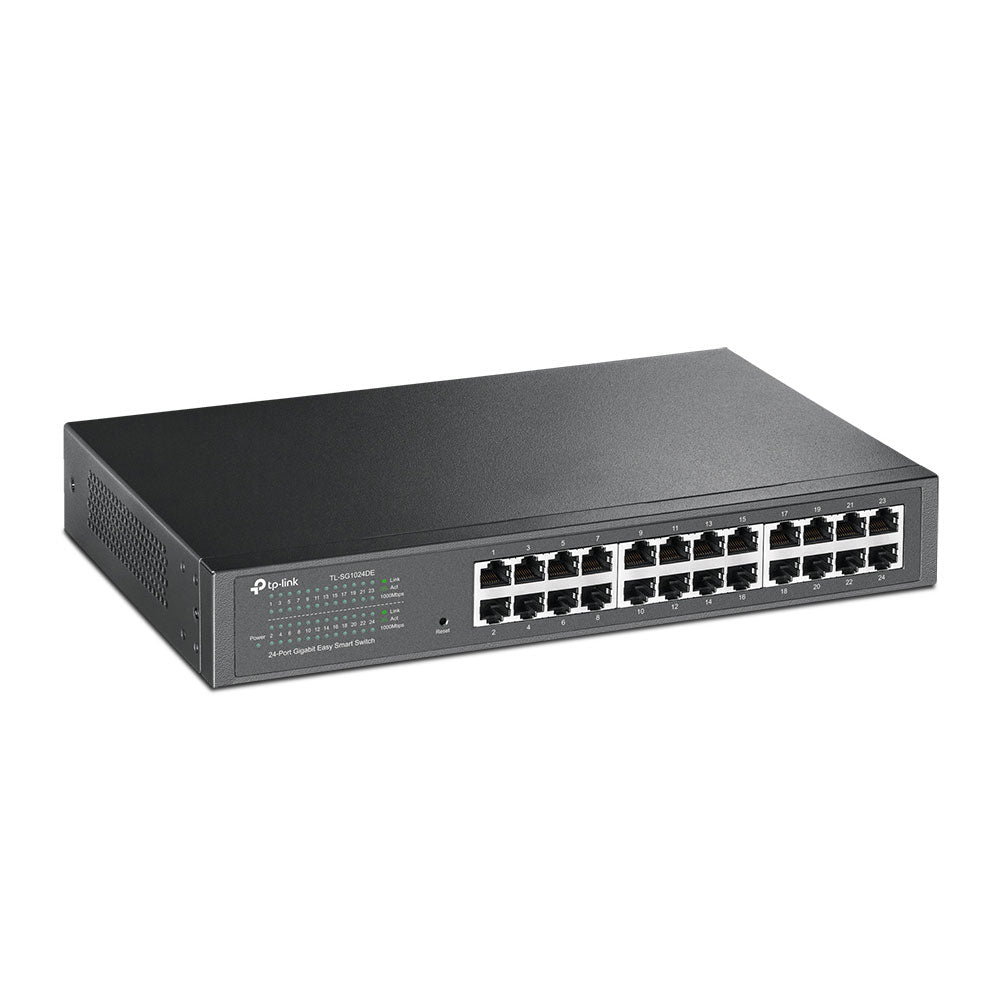

TP-LINK 24-PORT GIGABIT EASY SMART SWITCH

FEATURES • 24 10/100/1000Mbps RJ45 ports • Provides network monitoring, traffic prioritisation and VLAN features • Innovative energy-efficient technology reduces power output by up to 18% • Simple network set-up on top of plug-and-play connectivity • Web-based user interface and management utility simplify configuration SPECIFICATIONS HARDWARE FEATURES • Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p • Interface: 24 10/100/1000Mbps RJ45 Ports • AUTO Negotiation/AUTO MDI/MDIX • Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • Fan Quantity: Fanless • Physical Security Lock: No • Power Supply: 100-240VAC, 50/60Hz • Power Consumption: Maximum: 14.86W (220V/50Hz) • Dimensions (W x D x H): 294 x 180 x 44mm • Mounting: Rack Mountable • Max Power Consumption: 33.52W (220V/50Hz) • Max Heat Dissipation: 114.37 BTU/h PERFORMANCE • Switching Capacity: 48Gbps • Packet Forwarding Rate: 35.7Mpps • MAC Address Table: 8K • Packet Buffer Memory: 512KB • Jumbo Frame: 9KB SOFTWARE FEATURES • Quality of Service: Support Port-based/ 802.1p/DSCP priority • Support 4 priority queues • Rate Limit • Storm Control • L2 Features: IGMP Snooping V1/V2/V3 • Static Link Aggregation • Port Mirroring • Cable Diagnostics • Loop Prevention • VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) • MTU/Port/Tag VLAN • Transmission Method: Store-And-Forward OTHERS • Certification: FCC, CE, RoHS • System Requirements: Microsoft Windows for running Utility
