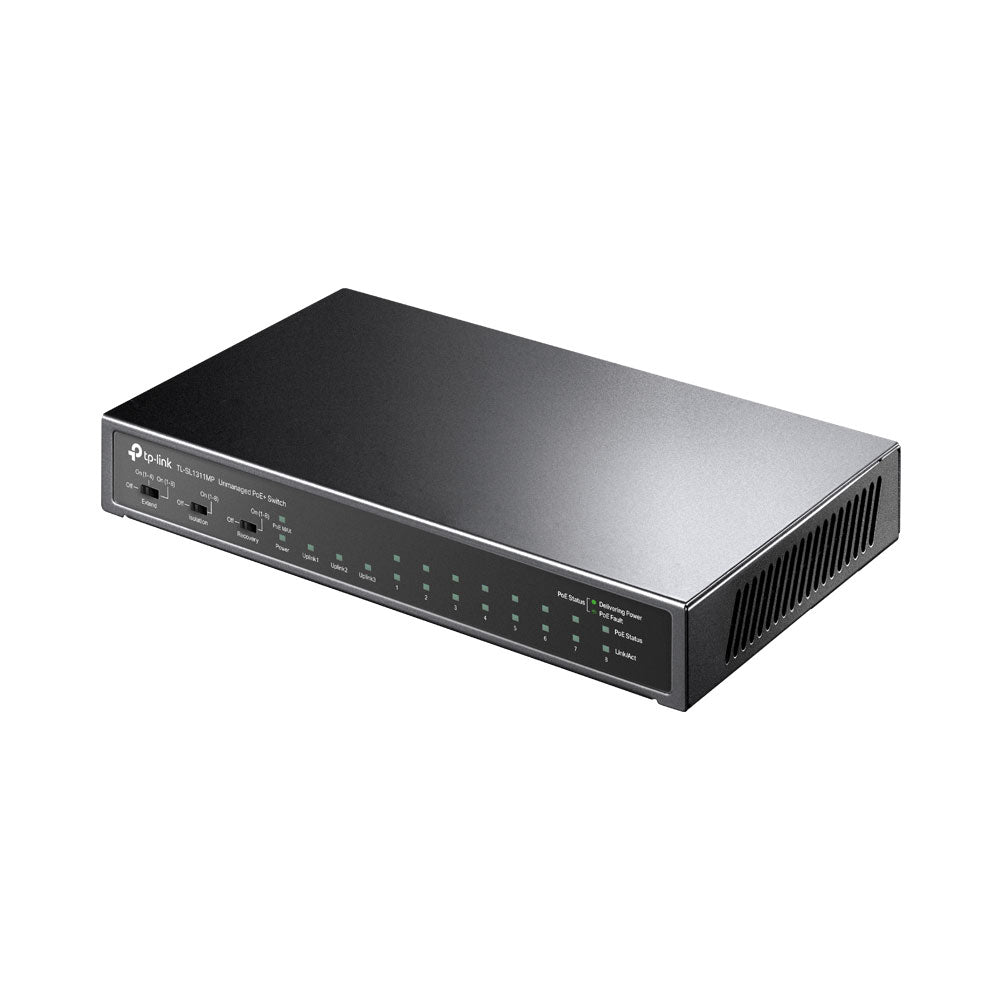

TP-LINK 8-PORT 10/100MBPS + 3-PORT GIGABIT

FEATURES • 8x 10/100 Mbps RJ45 Ports, 2x Gigabit RJ45 Ports, 1x Gigabit SFP Port • 8x PoE+ ports transfer data and power on individual cables • Works with IEEE 802.3af/at compliant PDs • Supports PoE Power up to 30W for each PoE port • Supports PoE Power up to 124W for 8 PoE ports • Up to 250m data and power transmitting range under Extend Mode • Isolation Mode allows one-click client traffic separation for higher security and performance • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices • Fanless Design reduces power consumption and works silently in its location • Plug and play with no configuration required SPECIFICATIONS HARDWARE FEATURES • Interface: 8× 10/100 Mbps 802.3af/at PoE+ Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port • AUTO Negotiation • AUTO MDI/MDIX • Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • Fan Quantity: Fanless • Physical Security Lock: Yes • External Power Supply: External Power Adapter (Output: 53.5VDC / 2.43A) • Packet Forwarding Rate: 5.6544Mpps • PoE Ports (RJ45): Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8 • Power Supply: 124W • Mac Address Table: 2K • Jumbo Frame: 16KB • Switching Capacity: 7.6Gbps • Dimensions (W x D x H) 209 × 126 × 26mm • Max Power Consumption: 5.95W (220/50 Hz. no PD connected) • 140.92W (220/50 Hz. with 124 W PD connected) • Max Heat Dissipation: 20.29 BTU/h (no PD connected) • 480.54 BTU/h (220/50Hz. with 124W PD connected) SOFTWARE FEATURES • Transmission Method: Store-And-Forward • Advanced Functions • Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission) • Isolation Mode Button (Ports 1–8) • PoE Auto Recovery Button (Ports 1–8) • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode OTHERS • Certification: FCC, CE, RoHS • Environment: Operating Temperature: 0–40 °C (32–104 ℉) • Storage Temperature: -40–70 °C (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
