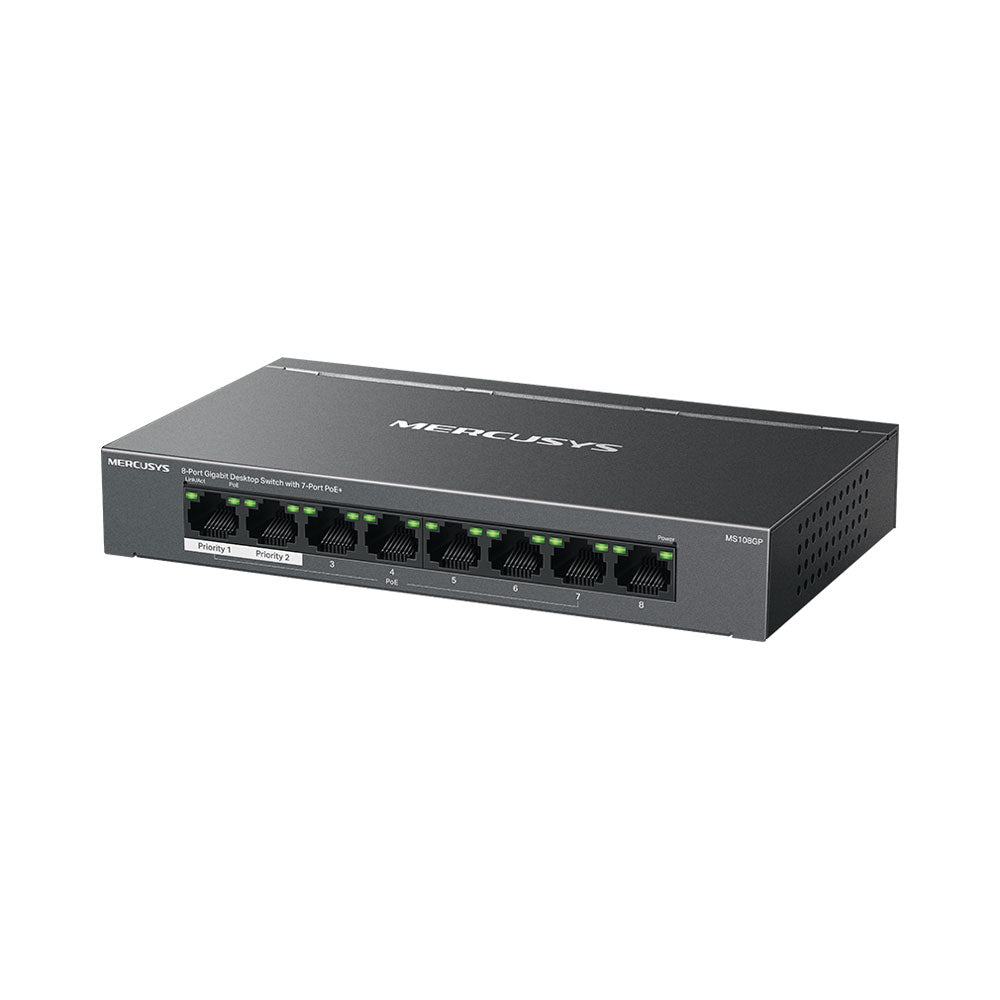

MERCUSYS 8-PORT GB DESKTOP SWITCH WITH 7-PORT POE+

FEATURES • Full Gigabit Ports - 5× 10/100/1000Mbps RJ45 ports • Two Cables in One - With four PoE+ ports, transfers data and power on one single cable • High Power PoE+ - Support PoE Power up to 30W for each PoE port and 65W for all PoE ports • Long-Range up to 250m - Increases PoE transmission distance up to 250m with Extend Mode (Speed decreasing to 10Mbps) • Isolation Mode - One click to divide traffic for specific ports for stability and security • Compliant with Powered Devices - Works with IEEE 802.3af/at compliant PDs • Durable Metal Casing - Allows for efficient heat dissipation and long network life • Plug-and-Play - Simple to use and saves time and effort SPECIFICATIONS DIMENSIONS (W × D × H) • 171 × 98 × 27mm POE PORTS • 7× PoE+ Ports (Ports 1~7) • Standard: IEEE 802.3af/at Powered Devices • PoE Power Budget: 65W INTERFACES • 8× RJ45 Gigabit Ethernet Ports EXTERNAL POWER SUPPLY • External Power Adapter (Output: 53.5V 1.31A) INSTALLATION • Desktop • Wall Mount STANDARDS AND PROTOCOLS • IEEE 802.3x Flow Control DATA RATES • 10/100/1000Mbps at Half-Duplex • 20/200/2000Mbps at Full-Duplex JUMBO FRAME • 15KB MAC ADDRESS TABLE • 8K MAX POWER CONSUMPTION • 5.07W (220V 50Hz, No PD Connected) • 77.33W (220V 50Hz, With 65W PD Connected) MAX HEAT DISSIPATION • 17.238 BTU/h (No PD Connected) • 262.922 BTU/h (With 65W PD Connected) ENVIRONMENT • Operating Temperature: 0~40°C • Storage Temperature: -40~70°C • Operating Humidity: 10~90% RH Non-Condensing • Storage Humidity: 5~95% RH Non-Condensing
