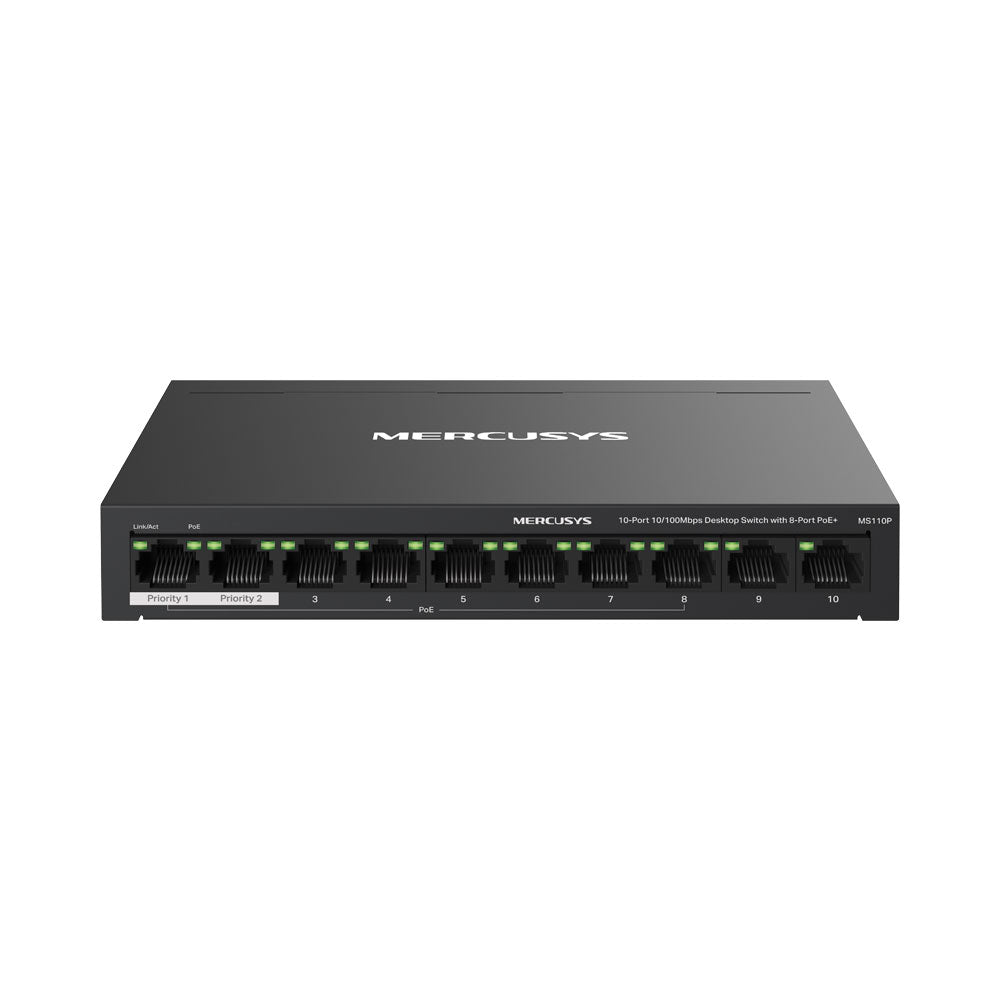

MERCUSYS 10-PORT DESKTOP SWITCH WITH 8-PORT POE+

FEATURES • 8× PoE+ Ports - Supports IEEE 802.3af/at standards to power devices such as IP cameras, access points and VoIP phones • 65W PoE Power Budget - Provides up to 30W per PoE port with a total power budget of 65W for stable device deployment • PoE Auto Recovery - Automatically reboots your dropped or unresponsive PoE powered devices • Fast Ethernet Connectivity - 10× 10/100Mbps RJ45 ports deliver reliable wired networking for homes, offices and surveillance systems • Extend Mode up to 250m - Extends PoE transmission distance up to 250m for flexible camera and device placement • Durable Metal Housing - Robust metal design with desktop or wall-mount installation for long-term reliability SPECIFICATIONS DIMENSIONS (W × D × H) • 171 × 98 × 27mm POE PORTS • 8× PoE+ Ports (Ports 1~8) • Standard: IEEE 802.3af/at Powered Devices • PoE Power Budget: 65W INTERFACES • 10× 10/100Mbps RJ45 Ports • Auto-Negotiation, Auto MDI/MDIX EXTERNAL POWER SUPPLY • External Power Adapter (Output: 53.5V 1.31A) INSTALLATION • Desktop • Wall Mount STANDARDS AND PROTOCOLS • IEEE 802.3x Flow Control DATA RATES • 10/100Mbps at Half-Duplex • 20/200Mbps at Full-Duplex JUMBO FRAME • 2KB MAC ADDRESS TABLE • 2K MAX HEAT DISSIPATION • 10.064 BTU/h (No PD Connected) • 263.568 BTU/h (With 65W PD Connected) ENVIRONMENT • Operating Temperature: 0~40°C • Storage Temperature: -40~70°C • Operating Humidity: 10~90% RH Non-Condensing • Storage Humidity: 5~95% RH Non-Condensing
