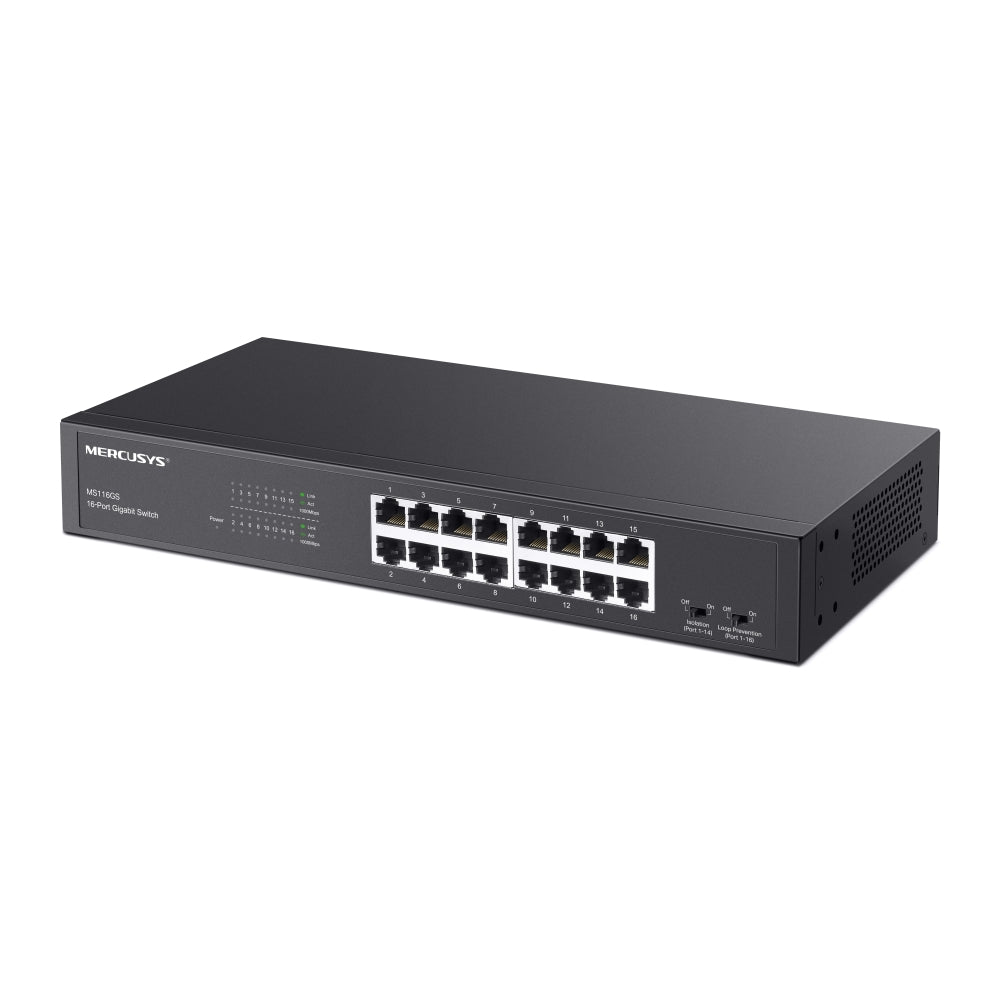

MERCUSYS 16-PORT GIGABIT DESKTOP/RACKMOUNT SWITCH

FEATURES • 16× Full Gigabit Ports - 16× 10/100/1000Mbps auto-negotiation RJ45 ports supporting Auto-MDI/MDIX for high-speed wired connectivity • Plug-and-Play Operation - Simple setup with no configuration required, saving time and effort • Isolation Mode - One-click client traffic separation for improved security and stable network performance • Loop Prevention - Detects and prevents loop-related issues to maintain a reliable network structure • Durable Metal Casing - Robust housing with efficient heat dissipation for long-term stability • Flexible Desktop Design - Compact form factor suitable for home, office or small business networking environments SPECIFICATIONS STANDARDS • IEEE 802.3i • IEEE 802.3u • IEEE 802.3ab • IEEE 802.3x • IEEE 802.1p INTERFACE • 16× 10/100/1000Mbps RJ45 Ports NETWORK MEDIA (CABLE) • 10BASE-T: UTP CAT3, 4, 5 Cable (Max. 100m) • 100BASE-TX/1000BASE-T: UTP CAT5, 5e or Above Cable (Max. 100m) AUTO-NEGOTIATION • Yes AUTO MDI/MDIX • Yes POWER SUPPLY • 100~240VAC, 50/60Hz FORWARDING MODE • Store and Forward SWITCHING CAPACITY • 32Gbps MAC ADDRESS TABLE • 8K ADVANCED FEATURES • 802.3X Flow Control • 802.1P/DSCP QoS • Loop Prevention • Isolation LED INDICATORS • Power • Link/Act • 1,000Mbps DIMENSIONS (W × H × D) • 294 × 140 × 44mm ENVIRONMENT • Operating Temperature: 0~40°C • Storage Temperature: -40~70°C • Operating Humidity: 10~90% Non-Condensing • Storage Humidity: 5~90% Non-Condensing CERTIFICATIONS • CE • RoHS
