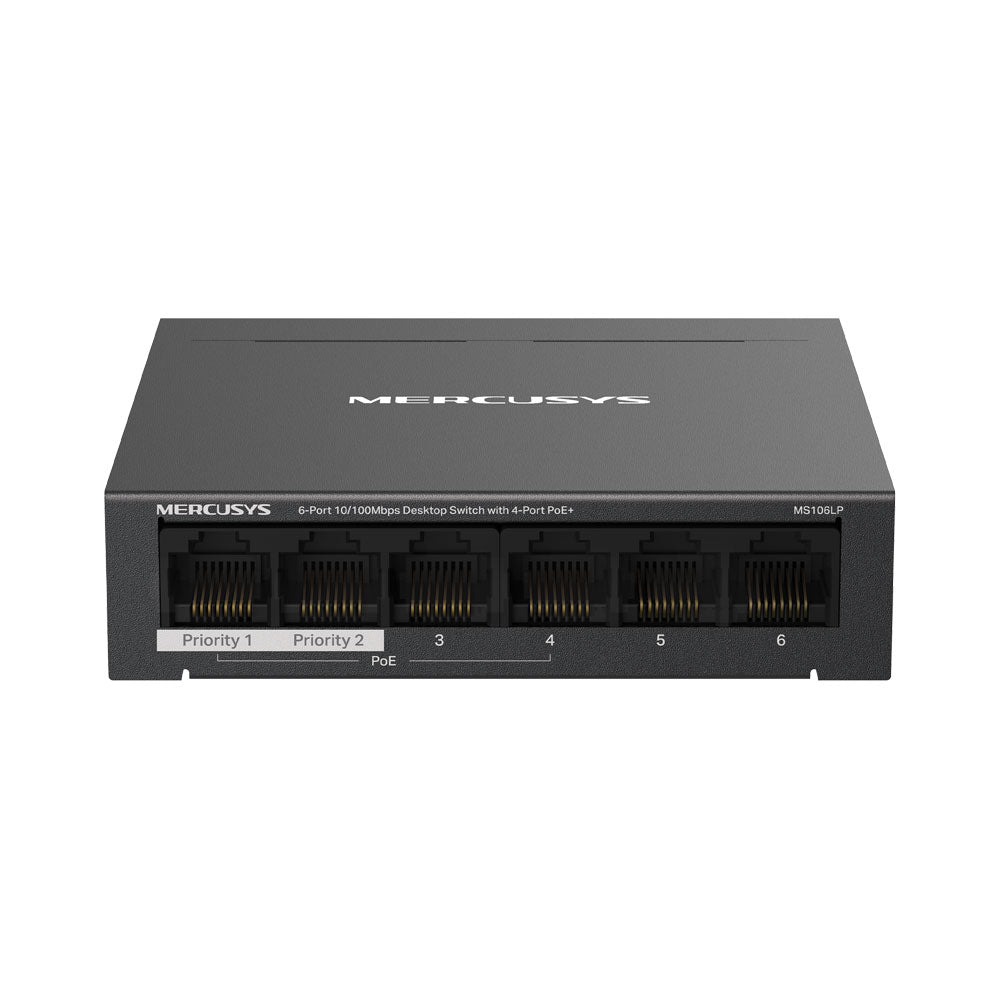

MERCUSYS 6-PORT DESKTOP SWITCH WITH 4-PORT POE+

FEATURES • 4× PoE+ Ports - Supports IEEE 802.3af/at standards to power devices such as IP cameras, access points and VoIP phones • 40W PoE Power Budget - Provides up to 30W per PoE port with a total power budget of 40W for reliable device deployment • PoE Auto Recovery - Automatically reboots your dropped or unresponsive PoE-powered devices • Fast Ethernet Connectivity - 6× 10/100Mbps RJ45 ports deliver stable wired networking for home or small business setups • Extend Mode up to 250m - Extend Mode allows PoE transmission and data up to 250m, ideal for surveillance deployments • Durable Metal Housing - Compact, robust metal design with desktop or wall-mount installation options SPECIFICATIONS DIMENSIONS (W × D × H) • 99.8 × 98 × 25mm POE PORTS • 4× PoE+ Ports (Ports 1~4) • Standard: IEEE 802.3af/at Powered Devices • PoE Power Budget: 40W INTERFACES • 6× 10/100Mbps RJ45 Ports • Auto-Negotiation, Auto MDI/MDIX EXTERNAL POWER SUPPLY • External Power Adapter (Output: 53.5V 0.81A) INSTALLATION • Desktop • Wall Mount STANDARDS AND PROTOCOLS • IEEE 802.3x Flow Control DATA RATES • 10/100Mbps at Half-Duplex • 20/200Mbps at Full-Duplex JUMBO FRAME • 2KB MAC ADDRESS TABLE • 2K MAX POWER CONSUMPTION • 1.87W (220V 50Hz, No PD Connected) • 44.8W (220V 50Hz, With 40W PD Connected) MAX HEAT DISSIPATION • 6.34 BTU/h (No PD Connected) • 152.32 BTU/h (With 40W PD Connected) ENVIRONMENT • Operating Temperature: 0~40°C • Storage Temperature: -40~70°C • Operating Humidity: 10~90% RH Non-Condensing • Storage Humidity: 5~95% RH Non-Condensing
