SKU:DS-2DF8225IX-AEL(T5)_C

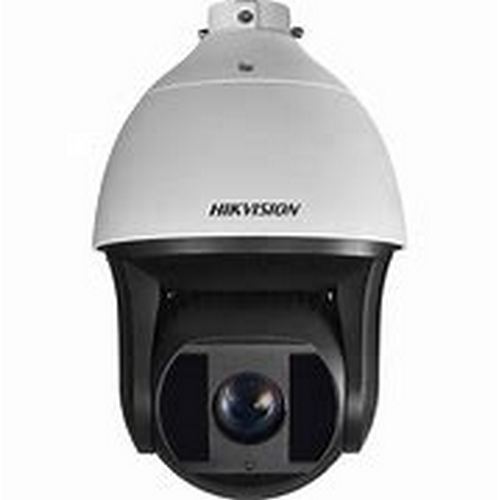

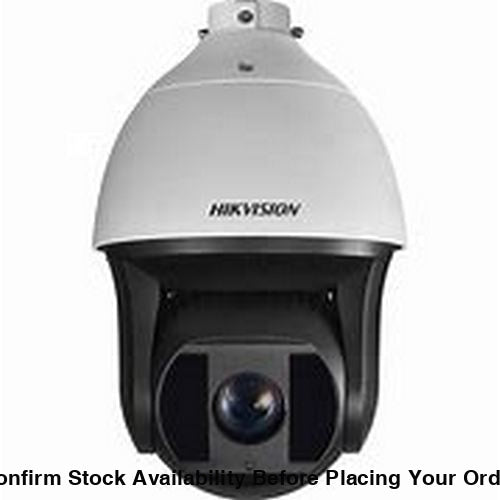

Hikvision 8 Series 2 MP 25X DarkFighter IR Network Speed Dome
- 1/1.8" Progressive Scan CMOS
- High quality imaging with 2 MP resolution
- Excellent low-light performance with DarkFighter technology
- 25× optical zoom and 16× digital zoom provide close up views over expansive areas
- Expansive night view with up to 400 m IR distance
- Water and dust resistant (IP67) and vandal resistant (IK10)
- Supports face capture to detect, capture, grade, and select faces in motion
- Supports road traffic to detect vehicles
-
- Camera
- Image Sensor1/1.8" progressive scan CMOS
- Min. Illumination Color: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ ((F1.5, AGC ON), 0 Lux with IR
- Shutter Speed1/1 s to 1/30,000 s
- Day & Night IR cut filter
- Zoom25x optical, 16x digital
- Max. Resolution1920 × 1080
- Lens
- Focus Auto, semi-auto, manual, rapid focus
- Focal Length5.9 mm to 147.5 mm
- Zoom Speed Approx. 4.8 s (optical, wide-tele)
-
FOV
Horizontal field of view: 59.8° to 3.3° (wide-tele),
Vertical field of view: 33.7° to 1.9° (wide-tele),
Diagonal field of view: 65° to 3.8° (wide-tele)
- Aperture Max. F1.5
- Illuminator
- Supplement Light Type IR
- Supplement Light Range Up to 400 m
- Smart Supplement Light Yes
- PTZ
- Movement Range (Pan)360°
- Movement Range (Tilt)-20° to 90° (auto flip)
- Pan Speed Pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
- Tilt Speed Tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
- Proportional Pan Yes
- Presets300
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans, record time over 10 minutes for each scan
- Power-off Memory Yes
- Park Action Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
- 3D Positioning Yes
- PTZ Status Display Yes
- Preset Freezing Yes
- Scheduled Task Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
- Video
-
Main Stream
50 Hz: 25 fps ( 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
-
Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
-
Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
-
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
- H.264 Type Baseline Profile/Main Profile/High Profile
- H.265 Type Main profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)8 fixed regions for each stream
- Audio
- Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
- Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32~192 Kbps (MP2L2)
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
- APIISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T)
- Simultaneous Live View Up to 20 channels
- User/Host Up to 32 users. 3 levels: Administrator, Operator and User
- Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address)
- Client Hik Central, iVMS-4200, Hik-Connect
- Web BrowserIE11, Chrome 57.0+, Firefox 52.0+, Safari 11+
- Image
- Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Image Enhancement BLC, HLC, 3D DNR
- Wide Dynamic Range (WDR)140 dB WDR
- Image Stabilization Yes. Built-in gyroscope to improve EIS performance.
- Regional Exposure Yes
- Regional Focus Yes
- Privacy Mask Up to 24 masks, polygon region, mosaic mask, mask color configurable
- Interface
- Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port; Hi-PoE
- On-board Storage Built-in memory card slot, support MicroSD/Micro SDHC/Micro SDXC, up to 256 GB
- Alarm7 inputs, 2 outputs
- Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
- Video Output1.0V[p-p]/75Ω, PAL, NTSC, BNC connector
- RS-485HIKVISION, Pelco-P, Pelco-D, self-adaptive
- Event
- Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
- Basic Event Motion detection, video tampering alarm, alarm input and output
- Smart Event Line crossing detection, region entrance detection, parking detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, vandal-proof alarm, audio exception detection
- Smart Tracking Manual tracking, auto-tracking
- Deep Learning Function
- Face Capture Detects up to 30 faces simultaneously. Supports detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face
-
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
- Road Traffic and Vehicle Detection
- Road Traffic Support vehicle detection (license plate number, vehicle model, and vehicle color recognition)
- General
- General Function Mirror, password protection, watermark, IP address filter
- Power24 VAC (Max. 60 W, including max. 18 W for IR and max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 18 W for IR and max. 6 W for heater)
- Operating Condition Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
- Dimension⌀ 266.6 mm × 410 mm (⌀ 10.50" × 16.14")
- Weight Approx. 8 kg (17.64 lb.)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
