SKU:DS-2DF8442IXS-AEL(T5)_C

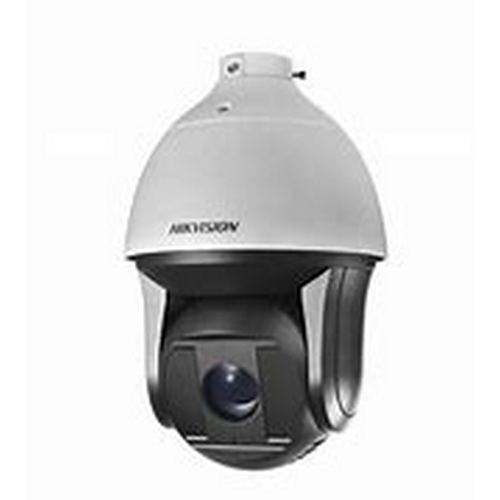

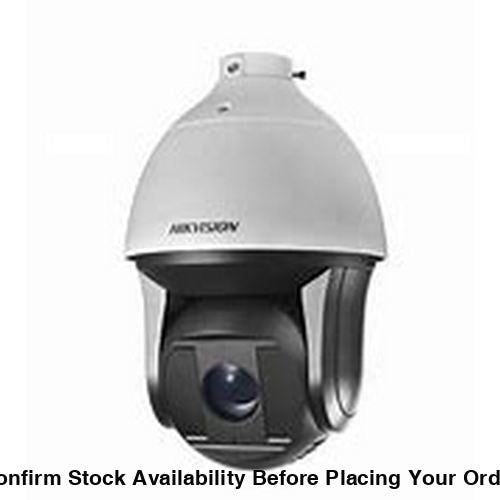

Hikvision 8 Series 4MP 42X DarkFighter IR Network Speed Dome
- 1/1.8" Progressive Scan CMOS
- High quality imaging with 4 MP resolution
- Excellent low-light performance with DarkFighter technology
- 42× optical zoom and 16× digital zoom provide close up views over expansive areas
- Expansive night view with up to 400 m IR distance
- Water and dust resistant (IP67) and vandal resistant (IK10)
- Supports face capture to detect, capture, grade, and select faces in motion
- Supports road traffic to detect vehicles
-
- Camera
- Image Sensor1/1.8" progressive scan CMOS
- Min. Illumination Color: 0.001 Lux @ (F1.2, AGC ON), B/W: 0.0005 Lux @ (F1.2,AGC ON), 0 Lux with IR
- Shutter Speed1/1 s to 1/30,000 s
- Day & Night IR cut filter
- Zoom42x optical, 16x digital
- Max. Resolution2560 × 1440
- Lens
- Focus Auto, semi-auto, manual, rapid focus
- Focal Length 6.0 mm to 252 mm
- Zoom Speed Approx. 4.5 s (optical, wide-tele)
-
FOV
Horizontal field of view: 56.6° to 1.7° (wide-tele),
Vertical field of view: 33.7° to 0.9° (wide-tele),
Diagonal field of view: 63.4° to 1.9° (wide-tele)
- ApertureMax. F1.2
- Illuminator
- Supplement Light Type IR
- Supplement Light Range Up to 400 m
- Smart Supplement Light Yes
- PTZ
- Movement Range (Pan)360°
- Movement Range (Tilt)-20° to 90° (auto flip)
- Pan Speed Pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
- Tilt Speed Tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
- Proportional Pan Yes
- Presets300
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans, record time over 10 minutes for each scan
- Power-off Memory Yes
- Park Action Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
- 3D Positioning Yes
- PTZ Status Display Yes
- Preset Freezing Yes
- Scheduled Task Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
- Video
-
Main Stream
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
-
Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
-
Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
-
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
- H.264 Type Baseline Profile/Main Profile/High Profile
- H.265 Type Main profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)8 fixed regions for each stream
- Audio
- Audio Compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
- Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32~192 Kbps (MP2L2)
- Network
- Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
- APIISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T)
- Simultaneous Live View Up to 20 channels
- User/Host Up to 32 users. 3 levels: Administrator, Operator and User
- Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address)
- Client Hik Central, iVMS-4200, Hik-Connect
- Web BrowserIE11, Chrome 57.0+, Firefox 52.0+, Safari 11+
- Image
- Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Defog Optical Defog
- Image Enhancement BLC, HLC, 3D DNR
- Wide Dynamic Range (WDR)140 dB WDR
- Image Stabilization Yes. Built-in gyroscope to improve EIS performance.
- Regional Exposure Yes
- Regional Focus Yes
- Privacy Mask Up to 24 masks, polygon region, mosaic mask, mask color configurable
- Interface
- Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port; Hi-PoE
- On-board Storage Built-in memory card slot, support MicroSD/Micro SDHC/Micro SDXC, up to 256 GB
- Alarm7 inputs, 2 outputs
- Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
- Video Output1.0V[p-p]/75Ω, PAL, NTSC, BNC connector
- RS-485HIKVISION, Pelco-P, Pelco-D, self-adaptive
- Event
- Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
- Basic Event Motion detection, video tampering alarm, alarm input and output, exception
- Smart Event Line crossing detection, region entrance detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, vandal-proof alarm, audio exception detection
- Smart Tracking Manual tracking, auto-tracking
- Deep Learning Function
- Face Capture Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face
- Face Comparison Yes
-
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
- Road Traffic and Vehicle Detection
- Road Traffic Support vehicle detection (license plate number, vehicle model, and vehicle color recognition)
- General
- General Function Mirror, password protection, watermark, IP address filter
- Power24 VAC (Max. 60 W, including max. 18 W for IR and max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 18 W for IR and max. 6 W for heater)
- Operating Condition Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
- Dimension ⌀ 266.6 mm × 410 mm (⌀ 10.50" × 16.14")
- Weight Approx. 8 kg (17.64 lb.)
- Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
