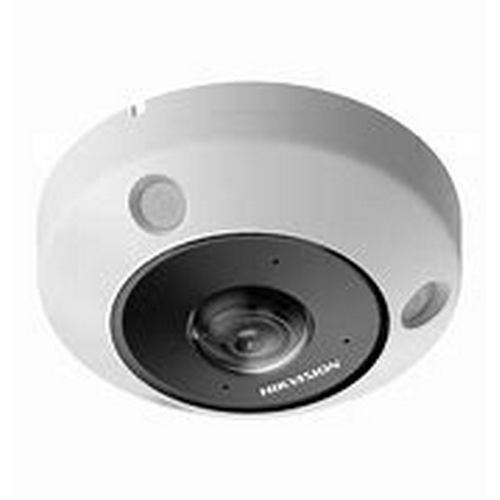

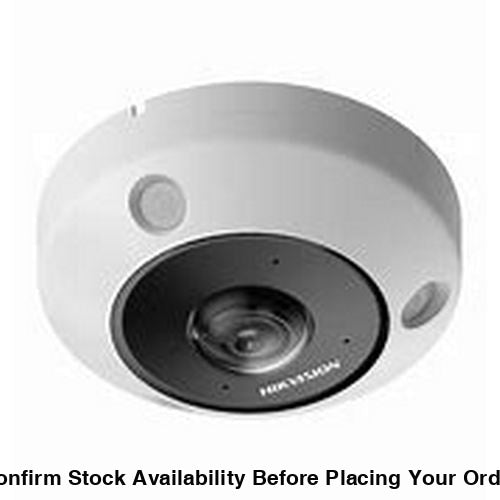

Hikvision 6 MP DeepinView Fisheye Network Camera

Name: Hikvision 6 MP DeepinView Fisheye Network Camera
Brand: Sensor Security
SKU: DS-2CD6365G1-IVS 1.16MM
Price: 14035.00 ZAR
Availability: InStock

R 14,035.00 ZAR

Sale Sold out

Shipping calculated at checkout.

Quantity

Master Card
Visa Card
Visa Electron

Maestro Card
Instant Eft
MobiCred

SKU:DS-2CD6365G1-IVS 1.16MM

Hikvision 6 MP DeepinView Fisheye Network Camera

Heatmap: based on deep learning algorithms, the camera counts people and presents an intuitive map
Multi dewarping modes: the image can be dewarped to normal image for viewing intuitively
Built-in mic and speaker: the camera supports two-way audio for real-time audio security monitoring and communication
Built-in IR light: an IR range of 15 meters provides good visibility in low or even zero-light environments
High resolution 6 MP: capturing clear images even when dewarped into 4-image PTZ mode
Each image is clear and detailed
Water and dust resistant (IP67) and vandal resistant (IK10)

- Camera
- Image Sensor1/1.8" Progressive Scan CMOS
- Max. Resolution2560 × 2560
- Min. Illumination Color: 0.01 Lux @ (F2.25, AGC ON),B/W: 0.005 Lux @ (F2.25, AGC ON),B/W: 0 Lux with IR
- Shutter Time1 s to 1/100,000 s
- Day & Night IR cut filter
- Lens
- Lens Type Fixed focal lens, 1.16 mm
- Focal Length & FOV1.16 mm, horizontal FOV 180°, vertical FOV 180°
- Iris Type Fixed
- ApertureF2.25
- Depth of Field0.2 m to ∞
- DORI
- DORI
  D: 23.2 m

  O: 9.2 m

  R: 4.6 m

  I: 2.3 m
- Illuminator
- Supplement Light Type IR
- Supplement Light Range Up to 15 m
- Supplement Light Number3
- IR Wavelength850 nm
- Smart Supplement Light Yes
- HEOP
- Open Resources
  Memory: 60 MB,

  Smart RAM: 800 MB,

  eMMC: 2 GB
- Computing Power2 TOPS
- Open Capability HEOP 2.0 Opendev SDK
- Deep Learning Structure Caffe, Tensor Flow, PyTorch
- Programming Language C,C++
- Video
- Main Stream
  50 Hz: 25 fps/60 Hz: 30 fps:

  Fisheye View:

  2560 × 2560, 2048 × 2048, 1280 × 1280

  180 Panorama View:

  2048 × 1536, 1920 × 1440

  180 Dual Channel Panorama View:

  2048 × 768, 1920 × 720

  Panorama View:

  2048 × 1536, 1920 × 1440

  4PTZ View:

  camera 01/camera 02/camera 03/camera 04: 1024 × 768

  Fisheye + 3PTZ View:

  camera 01: 2048 × 2048, 1024 × 1024

  camera 02/camera 03/camera 04: 1024 × 768

  4PTZ Fusion View:

  2048 × 1536, 1600 × 1200
- Sub-Stream
  50 Hz: 25 fps/60 Hz: 30 fps:

  Fisheye View:

  720 × 720, 480 × 480

  180 Panorama View:

  640 × 480, 320 × 240

  180 Dual Channel Panorama View:

  640 × 480, 320 × 240

  Panorama View:

  640 × 360, 320 × 240

  4PTZ View:

  camera 01/camera 02/camera 03/camera 04: 640 × 480, 320 × 240

  Fisheye + 3PTZ View:

  camera 01: 720 × 720

  camera 02/camera 03/camera 04: 640 × 480, 320 × 240
- Video Compression
  Main stream: H.265+/H.265/H.264+/ H.264,

  Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 Type Baseline Profile, Main Profile ,High Profile
- H.265 Type Main Profile
- Bit Rate Control CBR,VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)4 fixed regions for each stream
- Fisheye Display
- Mount Type Support wall/table/ceiling mounting
- Decoding Mode Support hardware decoding and software decoding
- Display Mode
  20 display modes in total,

  Software decoding: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere, cylinder,

  Hardware decoding: fisheye view, 180 panorama view, 180 dual channel panorama, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion
- Audio
- Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise Filtering Yes
- Network
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, Web Socket, Web Sockets, SIP
- Simultaneous Live View Up to 20 channels
- API
  Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP,

  Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX
- User/Host
  Up to 32 users

  3 user levels: administrator, operator, and user
- Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
- Network Storage
  NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- ClientiVMS-4200,iVMS-4500,iVMS-5200,Hik-Connect
- Web Browser
  Plug-in required live view: IE 10, IE 11,

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,

  Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Parameters Switch Yes
- Image Settings saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser
- Day/Night Switch Day, Night, Auto, Schedule, Alarm Trigger
- Wide Dynamic Range (WDR)120 dB
- Image EnhancementBLC,HLC,3D DNR, Distortion Correction, Defog
- Privacy Mask8 programmable polygon privacy masks
- Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
- Interface
- Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
- On-Board Storage Built-in memory card slot, support microSD/micro SDHC/micro SDXC card, up to 256 GB
- Built-in Microphone Yes, 4 built-in microphones
- Built-in Speaker Yes, 1 built-in speaker
- Audio
  1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

  1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm2 inputs, 2 outputs (max. 24 VDC, 1 A)
- RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Reset Key1 Reset Key
- Event
- Basic Event Motion detection, video tampering alarm, alarm input and output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection ,audio exception detection, defocus detection, unattended baggage detection, object removal detection
- Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
- Deep Learning Function
- People Counting
  Counts people entering, exiting and passing by separately (The data is stored in the flash.)

  Supports real-time uploading and uploading by statistic cycle

  Sends email reports on daily, weekly, monthly or annually basis

  Supports up to 3 detection regions, and independent arming schedule and linkage method
- Queue Management
  Supports up to 8 detection regions, and independent arming schedule and linkage method

  Supports 2 detection modes: regional people queuing-up, waiting time detection

  Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue

  Supports raw data export for further analysis

  Supports real-time data uploading and scheduled data uploading

  Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold

  Waiting time detection: supports 1 alarm trigger condition, including greater than threshold
- Heat Map
  A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,

  Two report types are available, space heat map and time heat map line chart.
- Intersection Analysis
  Detects and analyze flow in an intersection-like scene, and generate reports

  Support one intersection of up to 10 ways
- General
- Power
  12 VDC ± 20%, 1 A, max. 11.5 W,two-core terminal block,

  PoE: IEEE 802.3af, Class 3, max. 12.5 W
- Material Metal
- DimensionØ140.3 mm × 59.4 mm (Ø5.5" × 2.3")
- Package Dimension260 mm × 230 mm × 135 mm (10.2" × 9.1" × 5.3")
- Weight Approx. 715 g (1.58 lb.)
- With Package Weight Approx. 1206 g (2.66 lb.)
- Storage Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function Heartbeat, flash log, password reset via email, password protection, one-key reset, anti-banding
- Heater Yes
- Cable Length0.31 m (1.02 ft.)
