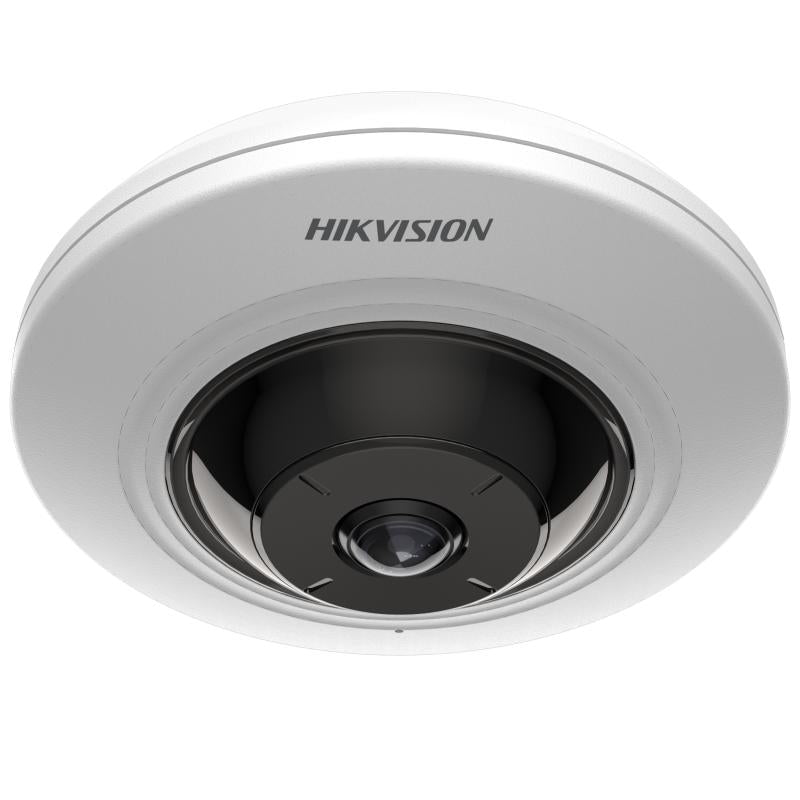

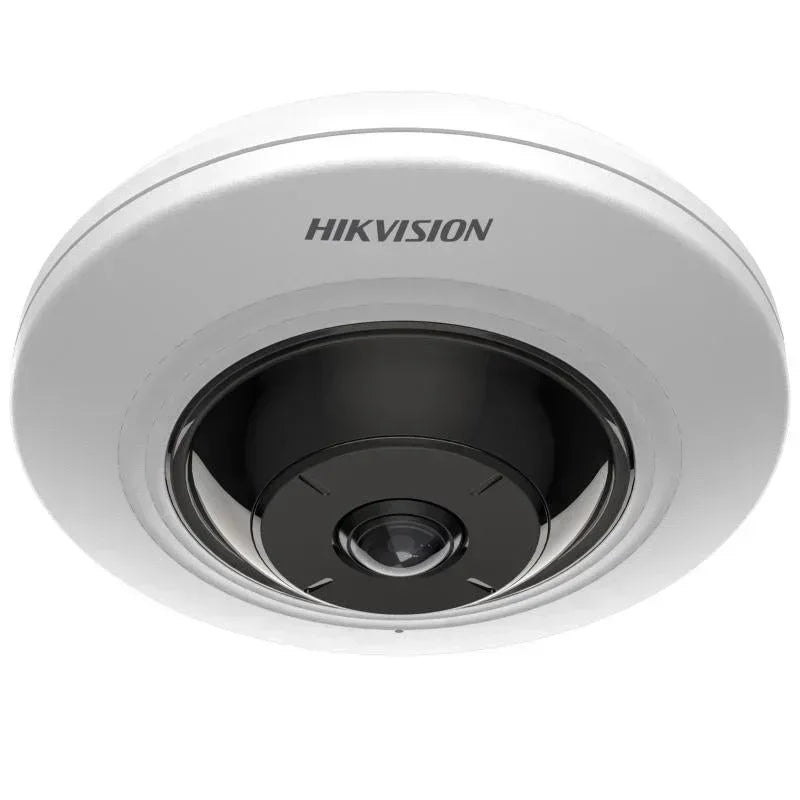

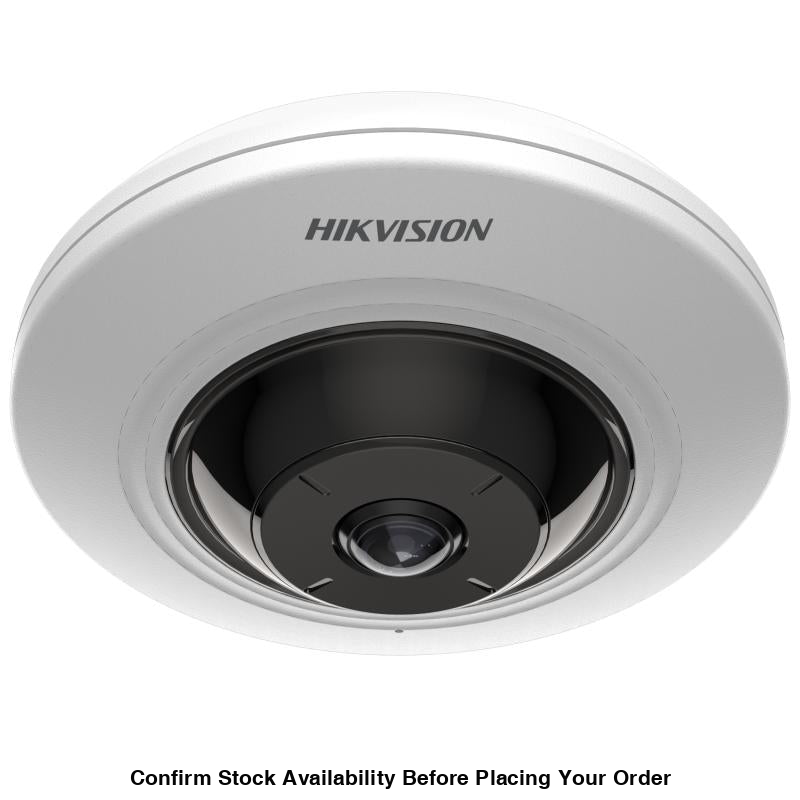

• Hikvision 5 MP AcuSense Fisheye Network Camera
1 1

Hikvision 5 MP AcuSense Fisheye Network Camera

Hikvision 5 MP AcuSense Fisheye Network Camera

R 4,915.00 ZAR
R 4,915.00 ZAR
Sale Sold out
Shipping calculated at checkout.
  • Master Card
  • Visa Card
  • Visa Electron
  • Maestro cardMaestro Card
  • Instant Eft Instant Eft
  • MobiCredMobiCred

DS-2CD3956G2-ISU(1.05mm)

Hikvision 5 MP AcuSense Fisheye Network Camera

  • Supports Hikvision Embedded Open Platform (HEOP) and importing third party applications
  • Supports 1.5 TOPS computing power, 60 MB system memory, 400 MB smart RAM, and 2 GB eMMC storage for sharing resources
  • Efficient H.265+ compression technology
  • 180° fisheye view
  • High quality imaging with 5 MP resolution
  • Up to 4 live view display modes
  • Clear imaging against strong back light due to 120 dB true WDR technology
    • Camera
    • Image Sensor1/2.7" Progressive Scan CMOS
    • Max. Resolution2560 × 1920
    • Min. Illumination Color: 0.017 Lux @ (F2.25, AGC ON),B/W: 0 Lux with IR
    • Shutter Time1/3 s to 1/100,000 s
    • Day & Night IR cut filter
    • Lens
    • Lens Type Fixed focal lens, 1.05 mm
    • Focal Length & FOV1.05 mm, horizontal FOV: 180°, vertical FOV: 180°, diagonal FOV: 180°
    • Lens MountM12
    • Iris Type Fixed
    • ApertureF2.25
    • Depth of Field0.1 m to ∞
    • DORI
    • DORID: 21 m, O: 8 m, R: 4 m, I: 2 m
    • Illuminator
    • Supplement Light Type IR
    • Supplement Light Range Up to 8 m
    • Smart Supplement Light Yes
    • IR Wavelength850 nm
    • HEOP
    • Open Resources

      Memory: 60 MB,

      Smart RAM: 400 MB,

      eMMC: 2 GB

    • Computing Power1.5 TOPS
    • Open Capability HEOP 1.0 Open dev SDK
    • Deep Learning Structure Caffe, Py Torch, Tensor Flow
    • Programming Language C,C++
    • Video
    • Main Stream

      50 Hz: 25 fps/60 Hz: 30 fps:

      Fisheye View:

      2560 × 1920, 2048 × 1536, 1280 × 960



      180 Panorama View:

      2048 × 1152, 1280 × 720



      180 Dual Channel Panorama View:

      4096 × 576，2048 × 288



      4PTZ View:

      camera 01/camera 02/camera 03/camera 04: 1200 × 900



      Fisheye + 3PTZ View:

      camera 01: 2048 × 1536, 1280 × 960

      camera 02/camera 03/camera 04: 1200 × 900

    • Sub-Stream

      50 Hz: 25 fps/60 Hz: 30 fps:

      Fisheye View:

      640 × 480, 640 × 360



      180 Panorama View:

      640 × 480, 640 × 360



      Fisheye + 3PTZ View:

      camera 01: 640 × 480, 640 × 360

    • Video Compression

      Main stream: H.265/H.264/H.264+/H.265+

      Sub-stream: H.265/H.264/MJPEG

    • Video Bit Rate32 Kbps to 16 Mbps
    • H.264 Type Baseline Profile/Main Profile/High Profile
    • H.265 Type Main Profile
    • Bit Rate Control CBR/VBR
    • Scalable Video Coding (SVC)H.264 and H.265 encoding
    • Region of Interest (ROI)5 fixed regions for main stream and sub-stream
    • Target Cropping Yes
    • Fisheye Display
    • Mount Type Support wall/table/ceiling mounting
    • Decoding Mode Support hardware decoding and software decoding
    • Audio
    • Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
    • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
    • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
    • Environment Noise Filtering Yes
    • Network
    • Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, Web Socket, Web Sockets, SRTP
    • Simultaneous Live View Up to 20 channels
    • API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
    • User/Host Up to 32 users. 3 user levels: administrator, operator and user
    • Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for Open Network Video Interface, memory card encryption, SFTP encryption, SRTP encryption
    • Network Storage

      NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

      Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

    • ClientiVMS-4200, Hik-Connect, Hik-Central
    • Web Browser

      Plug-in required live view: IE 10, IE 11

      Plug-in free live view : Chrome 57.0+, Firefox 52.0+

      Local service: Chrome 57.0+, Firefox 52.0+

    • Image
    • Image Parameters Switch Yes
    • Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
    • Day/Night Switch Day, Night, Auto, Schedule
    • Wide Dynamic Range (WDR)120 dB
    • Image Enhancement BLC, HLC, 3D DNR
    • SNR≥ 52 dB
    • Interface
    • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
    • On-Board Storage



      Built-in memory card slot, support microSD/micro SDHC/micro SDXC/TF card, up to 256 GB

    • Built-in Microphone-U: Yes
    • Audio

      1 input(s) (line in), four-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

      1 output(s) (line out), four-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

    • Alarm1 input, 1 output (max. 12 VDC, 30 mA)
    • RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
    • Reset Key Yes
    • Event
    • Basic Event Motion detection, video tampering alarm, exception
    • Linkage Upload to NAS/memory card/FTP, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning
    • Deep Learning Function
    • People Counting



      Supports counting, displaying and exporting the people flow data of entering, exiting and passing by (The data is stored in the flash.),

      Supports real-time uploading and uploading by statistic cycle

    • Queue Management Supports up to 4 detection regions, and independent arming schedule and linkage method
    • Heat Map



      Yes

    • General
    • Power

      12 VDC ± 25%, 0.50 A, max. 6 W,Ø5.5 mm coaxial power plug,

      PoE: 802.3af, Class 3, 36 V to 57 V, 0.20 A to 0.13 A, max. 7.5 W

    • Dimension



      Ø119.9 mm × 41.2 mm (Ø4.7 × 1.6\")"

    • Package Dimension150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9")
    • Weight Approx. 320 g (0.7 lb.)
    • With Package Weight Approx. 510 g (1.1 lb.)
    • General Function Anti-banding, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
    • Storage Conditions-10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing)
    • Startup and Operating Conditions-10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing)
    • Language



      33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
