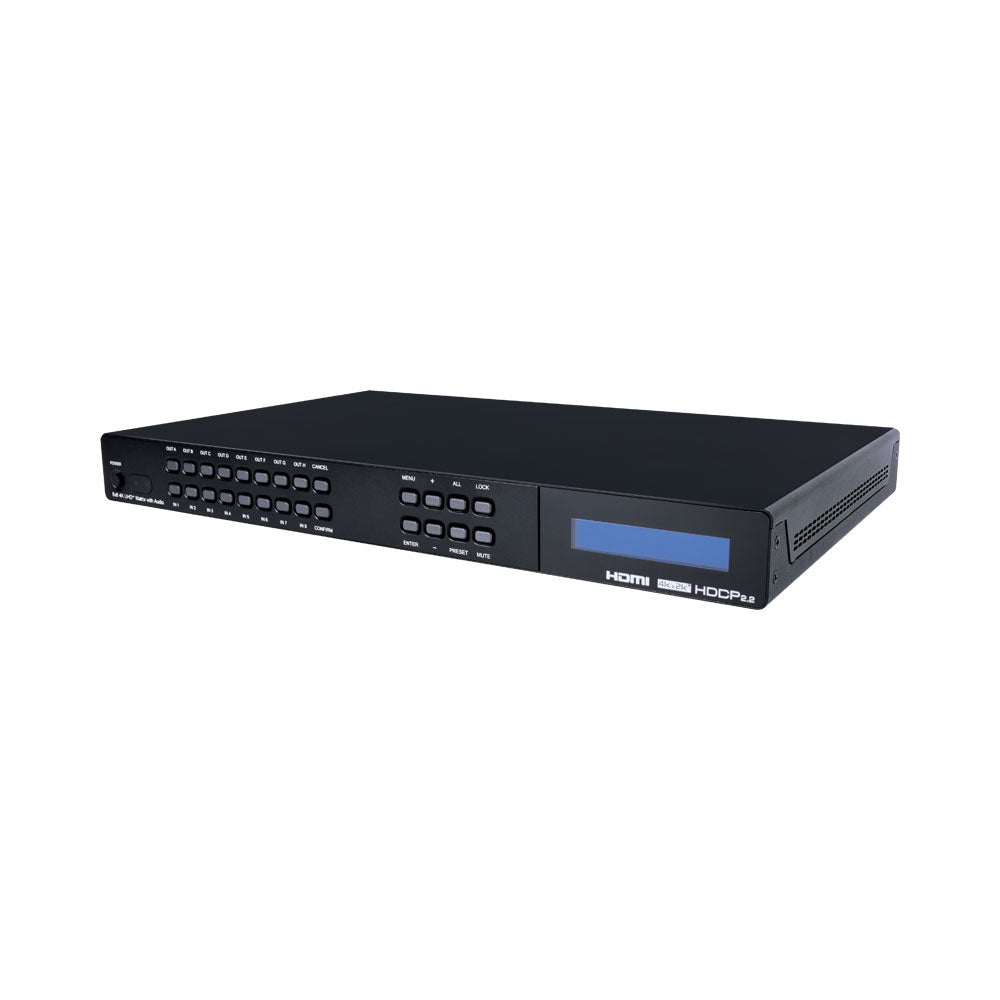

CYP CPLUS-V8H8HPA 4K 8X8 HDMI MATRIX WITH AUDIO OUTPUT

FEATURES • 8×8 HDMI matrix - Connects up to eight 4K UHD HDMI sources to eight displays with flexible switching between any input and output • 4K performance - Supports up to 4K@60Hz (4:4:4, 8-bit) with 18Gbps bandwidth, HDR and HDMI 2.0 compliance • Advanced EDID management - Built-in, copied and user-defined EDID options ensure maximum device compatibility • Audio breakout - 8× analogue audio outputs that can be paired individually with HDMI outputs • OSD customisation - Displays up to 2 lines of user-defined text overlay on each output • Multiple control options - Front panel with LCD, plus RS-232, Telnet, WebGUI and IR remote control support SPECIFICATIONS INTERFACES • Input Ports: 8× HDMI • Output Ports: 8× HDMI • Audio Output: 8× Unbalanced Stereo (3.5mm) • Control Ports: 1× Control (RJ45), 1× RS232 (DB9), 1× IR In (3.5mm) • Service Port: 1× USB Type-A VIDEO • HDMI Compliance: HDMI 2.0 (DVI 1.0) • HDCP Compliance: 2.x • Input Signal Types: 4096×2160 @60Hz 8bit YUV 4:4:4 • Output Signal Type: 4096×2160 @60Hz 8bit YUV 4:4:4 RESOLUTION • Maximum Input: HDMI 4096×2160 @60Hz • Maximum Output: HDMI 4096×2160 @60Hz AUDIO • Digital Formats: HDMI LPCM, Bitstream, HD Bitstream • Analogue Formats: Unbalanced 2-Channel POWER • Power Supply: 24V, 6.25A • Power Consumption: 70W ENCLOSURE • Chassis Material: Steel • Chassis Colour: Black • Dimensions (W × H × D): - 438 × 44 × 269mm (Case Only) - 438 × 49 × 274mm (All Inclusive) • Weight: 3.6kg FIELD FIRMWARE UPDATE • Interface: USB Flash Drive, WebGUI
