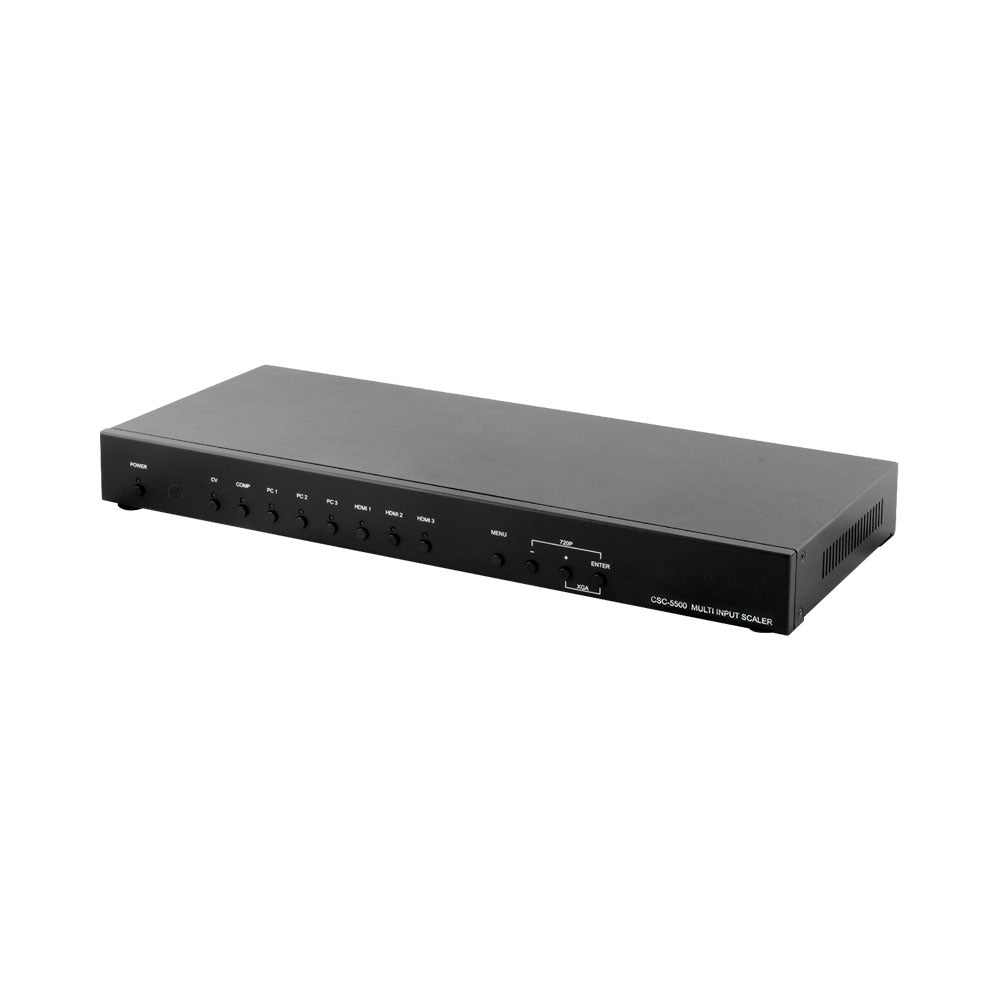

CYP CSC-5500 MULTIPLE INPUTS TO HDMI/VGA SCALER

FEATURES • Multi-Format AV Scaling - Converts and scales multiple video sources to HDMI or VGA displays • Multiple Input Support - Supports HDMI, VGA, Component and Composite video sources • Full HD Output Resolution - Supports up to 1920×1080p @60Hz and WUXGA resolutions • Advanced Video Processing - Includes 3D de-interlace, noise reduction and 3D comb filter • Frame Rate Conversion - Delivers smoother and more stable video playback • HDMI and VGA Outputs - Flexible display connectivity for modern and legacy displays • Audio Conversion Support - Supports DAC and ADC audio conversion functionality • Flexible Control Options - Supports RS232, IR and IP Telnet/WebGUI control • EDID and HDCP Support - Ensures broad device compatibility • On-Screen Display Control - Easy configuration and input management • Apple Device Compatibility - Supports non-HDCP signals from Apple computers SPECIFICATIONS INPUT PORTS • 3× HDMI • 3× VGA (15-Pin D-Sub) • 1× Component Video • 1× Composite Video • 6× 3.5mm Stereo Audio • 4× RCA Stereo Audio • 1× IR Extender (3.5mm) • 1× RS232 (9-Pin D-Sub) • 1× IP Control (RJ45) • 1× USB (Service) OUTPUT PORTS • 2× HDMI • 1× VGA (15-Pin D-Sub) • 1× Coaxial Audio • 1× 3.5mm Stereo Audio COMPLIANCE • HDMI 1.3 (DVI 1.0) • HDCP 1.4 MAXIMUM INPUT RESOLUTION • HDMI: 1920×1080p @60Hz • VGA: 1920×1200 @60RB • Component: 1920×1080p @60Hz • Composite: 480i/576i MAXIMUM OUTPUT RESOLUTION • HDMI: 1920×1080p @60Hz • VGA: 1920×1200 @60RB OTHER • Audio Support: LPCM 2-Channel Audio • Power Supply: 5V 3A DC • Power Consumption: 11W • Chassis Material: Metal • Colour: Black • Dimensions: 432 × 47 × 183mm • Weight: 2.14kg • Firmware Update Interface: USB Service Port
