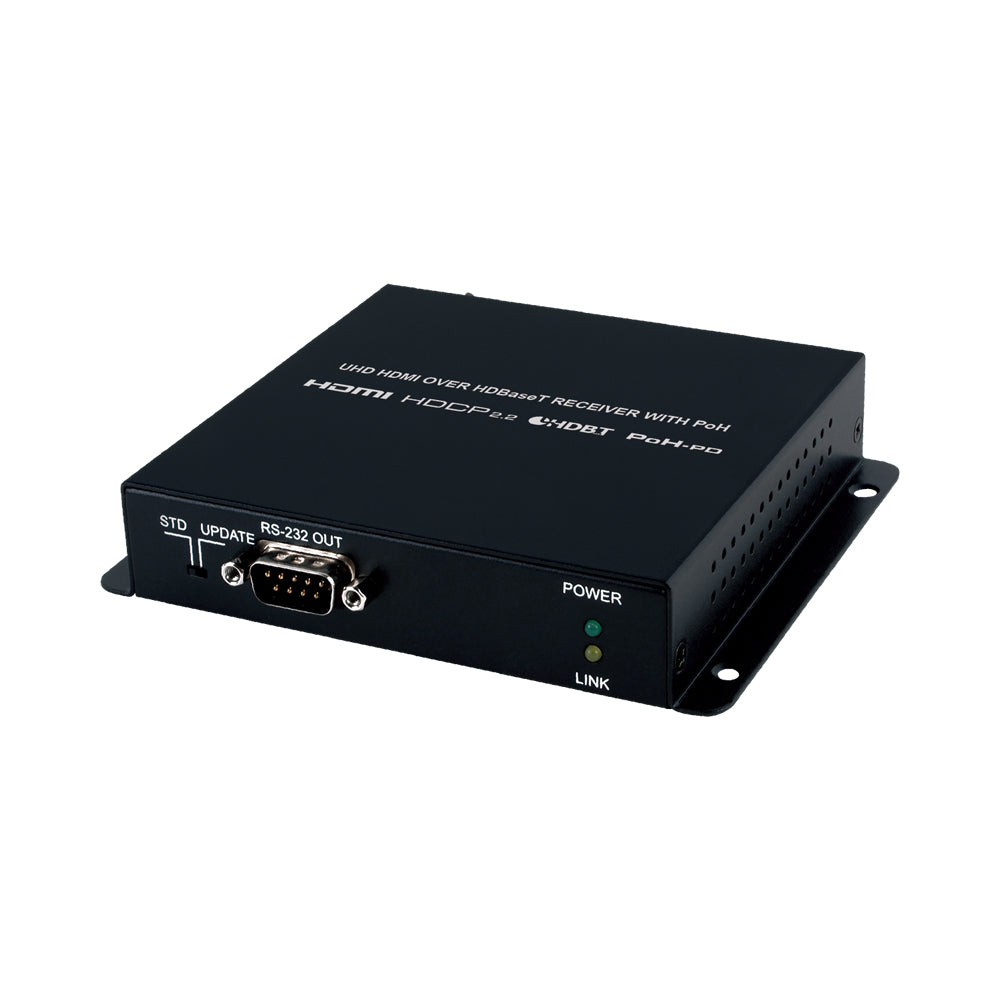

CYP CH-1527RXPL 60M 4K HDMI OVER HDBASET RECEIVER WITH 48V POH

FEATURES • 4K UHD HDMI Support - Supports resolutions up to 4096 × 2160 @60Hz YUV 4:2:0 • HDBaseT Transmission - Extends HDMI, IR and RS232 over a single CAT6 cable • Long Distance Extension - Transmits signals up to 60m over CAT6 cable • 48V PoH Support - Receiver powered directly from compatible transmitter • HDMI 2.0 and HDCP 2.x Compatible - Ensures reliable UHD content playback • RS232 Pass-Through - Supports advanced serial control integration up to 115200bps • IR Control Extension - Supports IR frequencies from 30~50kHz • CEC Bypass Support - Enables HDMI CEC signal pass-through • Multi-Channel Audio Support - Supports LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream audio • Compact Metal Housing - Durable professional-grade design for AV installations • Firmware Update Support - RS232 field firmware upgrade capability SPECIFICATIONS • Model: CH-1527RXPL • Product Type: HDMI over HDBaseT Receiver • HDMI Compliance: HDMI 2.0 (DVI 1.0) • HDCP Compliance: HDCP 2.x • Maximum Resolution: 4096 × 2160 @60Hz YUV 4:2:0 • Transmission Distance: up to 60m • Input Interface: 1× HDBaseT (RJ45), 1× IR Extender (3.5mm) • Output Interface: 1× HDMI, 1× RS232 (DE-9), 1× IR Blaster (3.5mm) • Supported Audio: LPCM 2.0/5.1/7.1, Bitstream, HD Bitstream • IR Frequency Range: 30~50kHz • Power Input: 48V 0.83A DC • Power Consumption: 13.5W Max. • Chassis Material: Metal • Colour: Black • Dimensions: 108 × 29 × 116mm • Weight: 366g • Operating Temperature: 0~40°C • Pair with CYP CMPRO-UA8H8CVPL 8×8 HDMI 4K over CAT6 Matrix Switch
