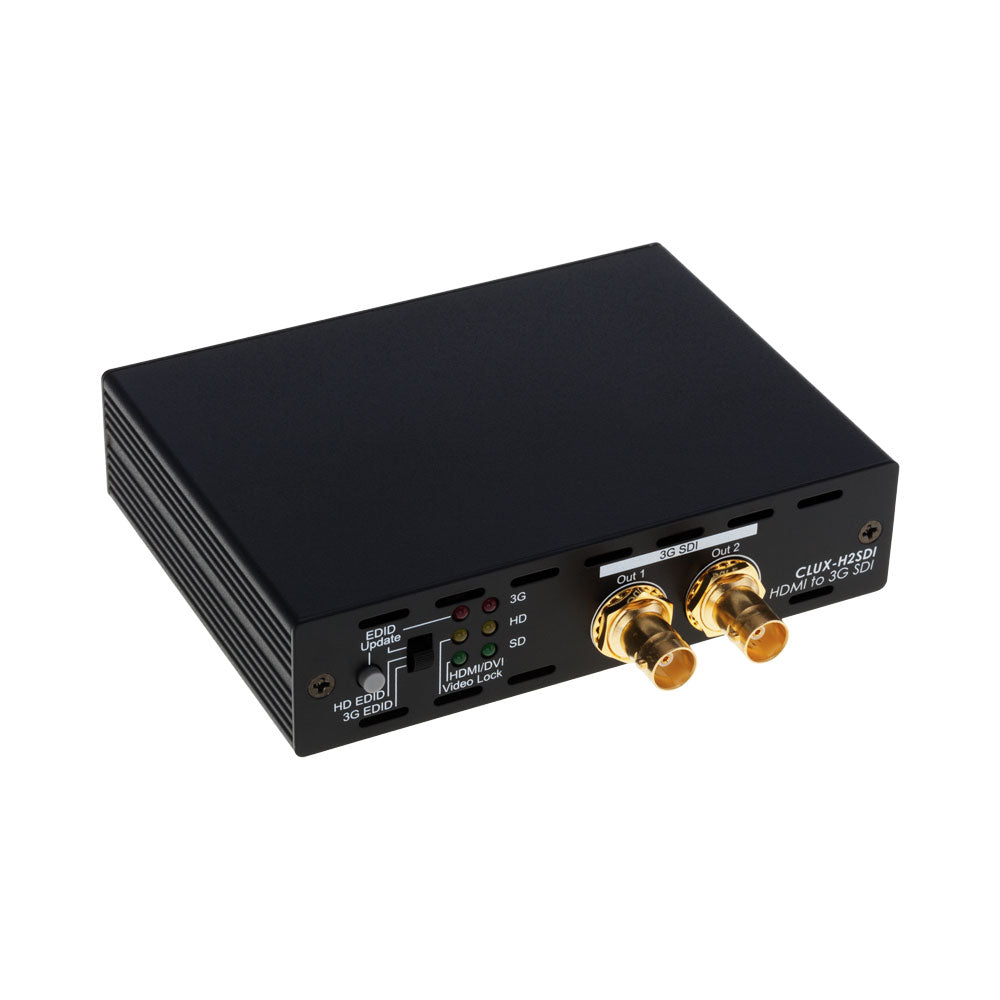

CYP CLUX-H2SDI 1080P HDMI TO 3G-SDI DUAL-OUTPUT CONVERTER

FEATURES • Dual SDI Outputs - Simultaneously displays one HDMI source on two SDI displays • Full HD Support - Supports resolutions up to 1080p @60Hz • 3G-SDI Conversion - Converts HDMI signals to SD-SDI, HD-SDI and 3G-SDI formats • Long Distance Transmission - Supports SDI output distances up to 300m (SD-SDI) depending on signal format • Integrated Audio Embedding - Supports up to 8-channel PCM audio over HDMI • External Audio Input - Allows stereo analogue audio embedding for DVI sources • Selectable EDID Modes - Includes built-in and recordable EDID functionality for improved compatibility • Professional Broadcast Standards - Supports SMPTE 259M-C, 292M, 424M and 425M-AB SPECIFICATIONS INPUT • 1× HDMI • 1× Stereo Audio (R/L) OUTPUT • 2× BNC (SD/HD/3G-SDI) HDMI TIMING SUPPORT • 480i @59.94 • 576i • 720p @50/59.94/60 • 1080i @50/59.94/60 • 1080p @23.98/24/25/29.97/30/50/59.94/60 SDI STANDARDS • SD-SDI: SMPTE 259M-C • HD-SDI: SMPTE 292M • 3G-SDI: SMPTE 424M/425M-AB SDI TRANSMISSION RATES • 2.970Gbps • 2.970/1.001Gbps • 1.485Gbps • 1.485/1.001Gbps • 270Mbps SDI CABLE DISTANCE • Up to 100m (3G-SDI) • Up to 200m (HD-SDI) • Up to 300m (SD-SDI) AUDIO SUPPORT • Up to 8CH PCM 48kHz via HDMI • 2CH Analogue Stereo for DVI Audio Embedding OTHER • Video Bandwidth: 225MHz / 6.75Gbps • Power Supply: 5V DC 2.6A • Power Consumption: 5.5W • ESD Protection: ±8kV Air-Gap Discharge, ±4kV Contact Discharge • Dimensions: 125 × 115 × 30mm • Weight: 275g • Chassis Material: Metal • Colour: Black • Operating Temperature: 0~40°C • Storage Temperature: -20~60°C • Relative Humidity: 20~90% RH (Non-Condensing)
