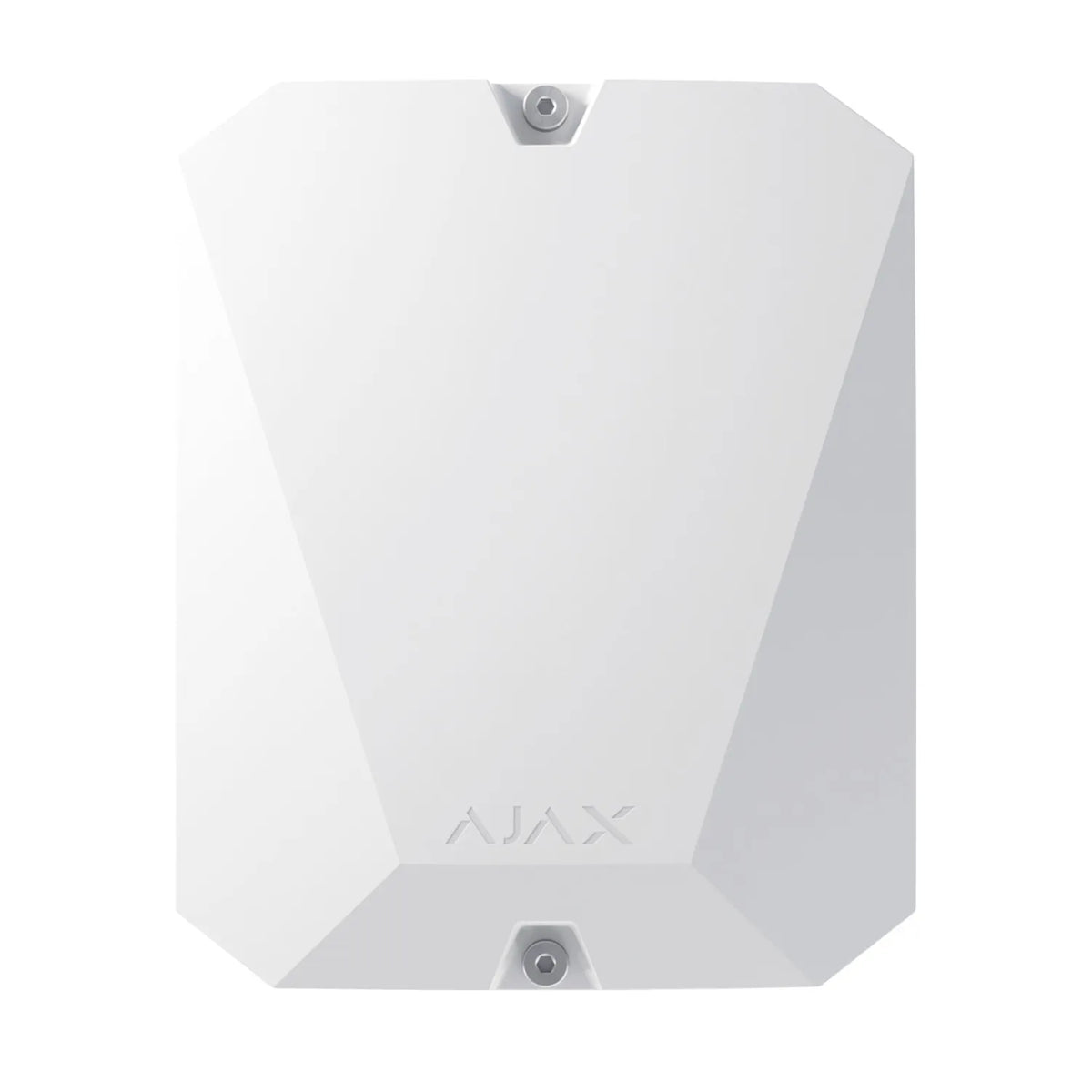

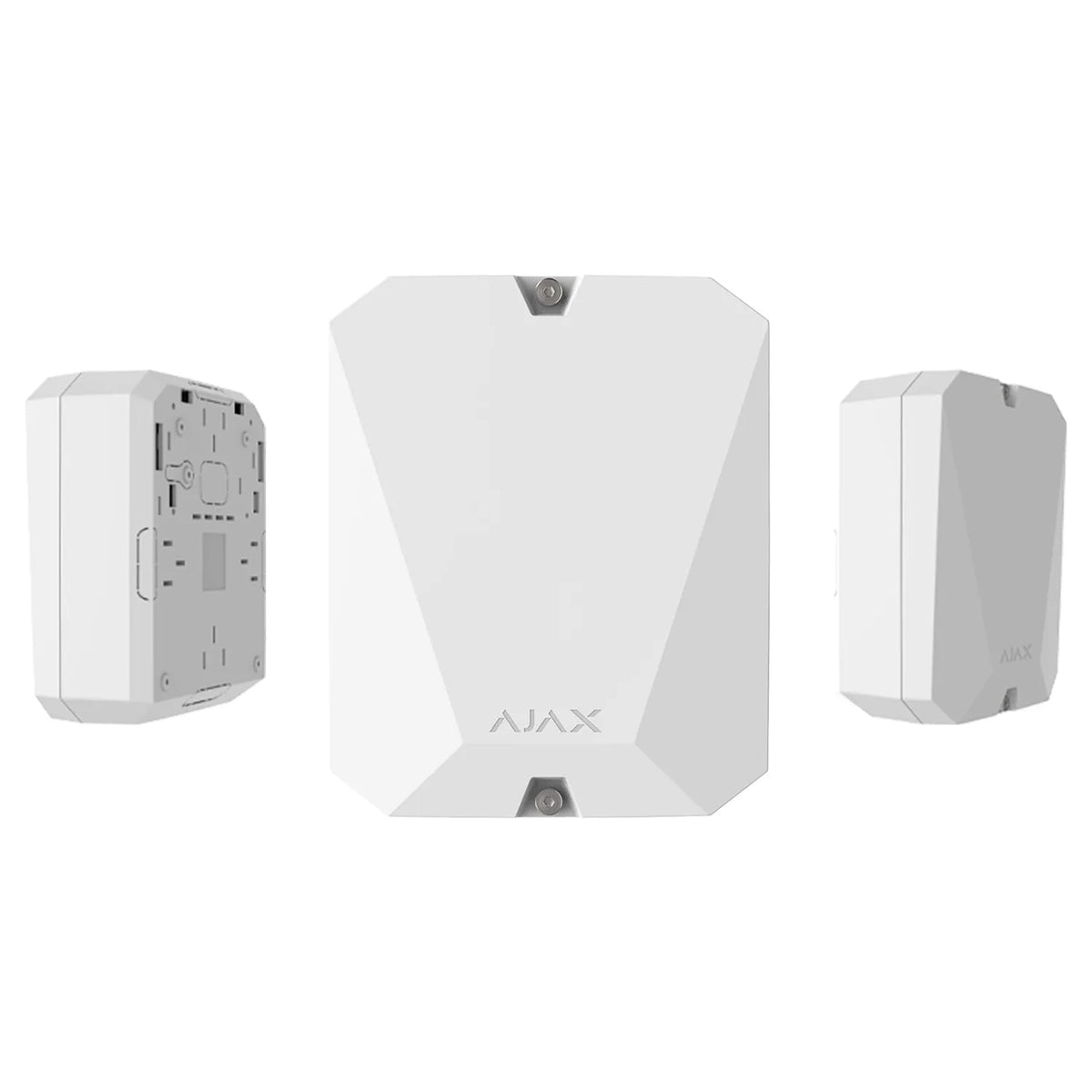

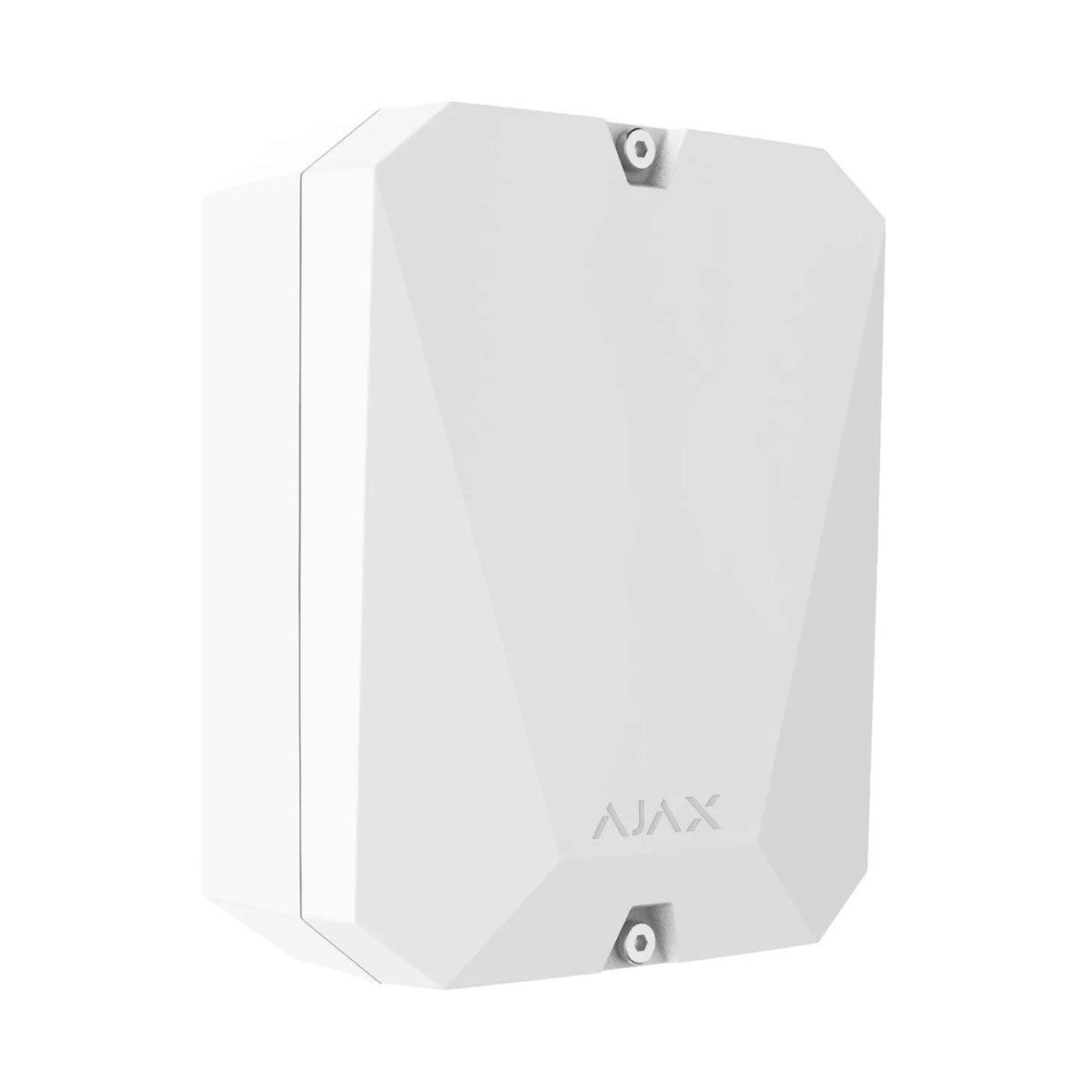

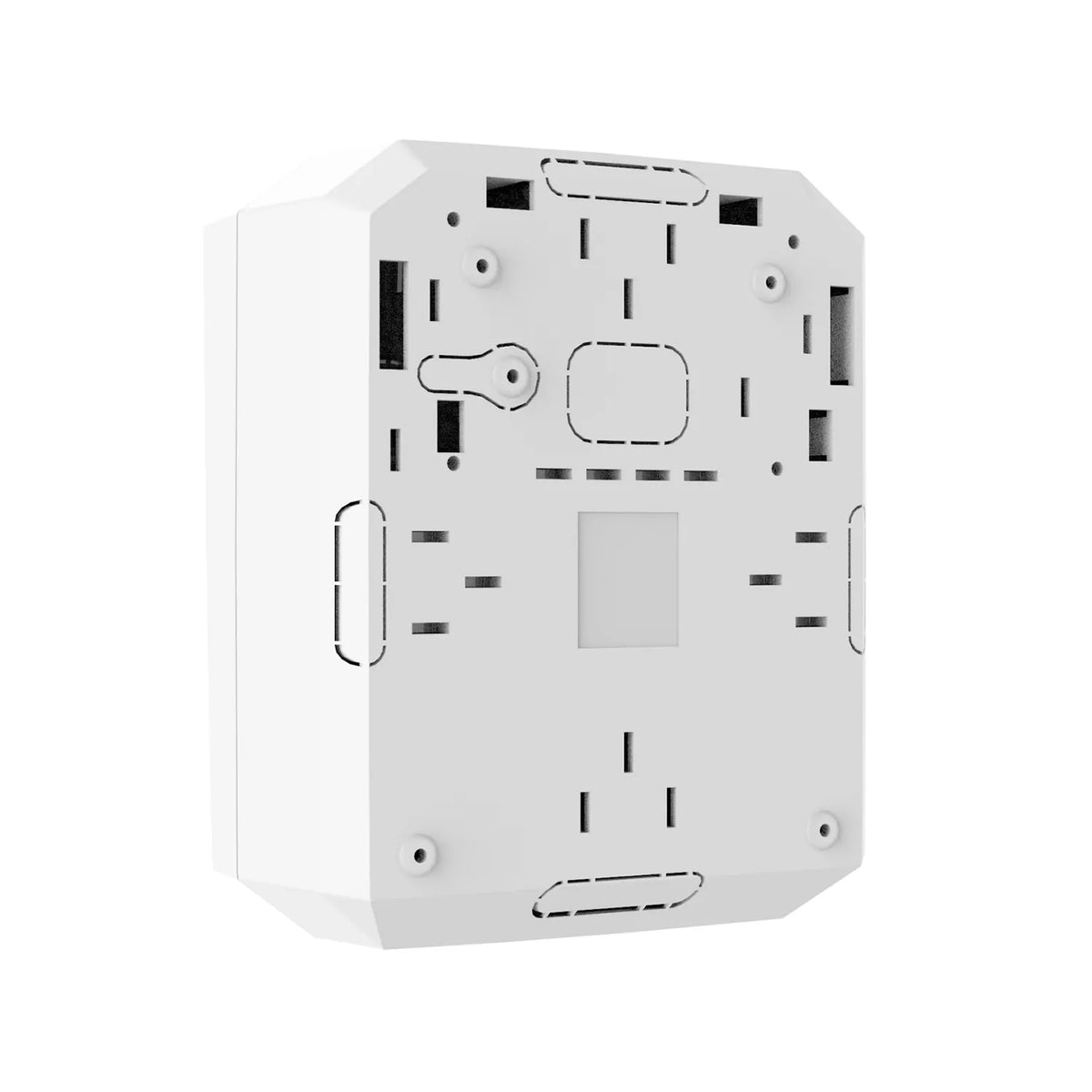

Ajax MultiTransmitter Jeweller

The Ajax MultiTransmitter Jeweller (White) is an advanced wired-to-wireless integration module that allows you to connect up to 18 wired detectors to an Ajax security system. It is ideal for upgrading existing wired alarm installations to a modern wireless platform without replacing all devices.

Each zone supports NC, NO, and EOL configurations, enabling compatibility with a wide range of third-party detectors such as PIR sensors, door contacts, glass break detectors, and fire sensors. The module also provides 12V power output for connected wired devices, simplifying installation and reducing the need for additional power supplies.

The MultiTransmitter features an integrated backup battery that provides up to 4 hours of автономous operation, ensuring continued protection during power outages.

Communication with the Ajax hub is handled via the secure Jeweller radio protocol, offering encrypted, two-way communication with a range of up to 2,000 meters line-of-sight, ensuring stable performance in large installations.

Each connected detector can be individually configured via the Ajax app, including alarm type, delay settings, and zone naming, providing full control and flexibility.

With built-in tamper protection, real-time alerts, and remote management, the MultiTransmitter Jeweller is a powerful solution for integrating and modernising wired security systems.

Key Features
– Wired-to-wireless integration module for Ajax systems
– Supports up to 18 wired zones
– Compatible with NC, NO, and EOL detectors
– 12V power output for connected devices
– Individual configuration per zone
– Secure Jeweller communication (up to 2,000 m LOS)
– Encrypted two-way communication
– Built-in backup battery (up to 4 hours)
– Tamper protection for added security
– Remote configuration via Ajax app
– Ideal for upgrading existing wired alarm systems
