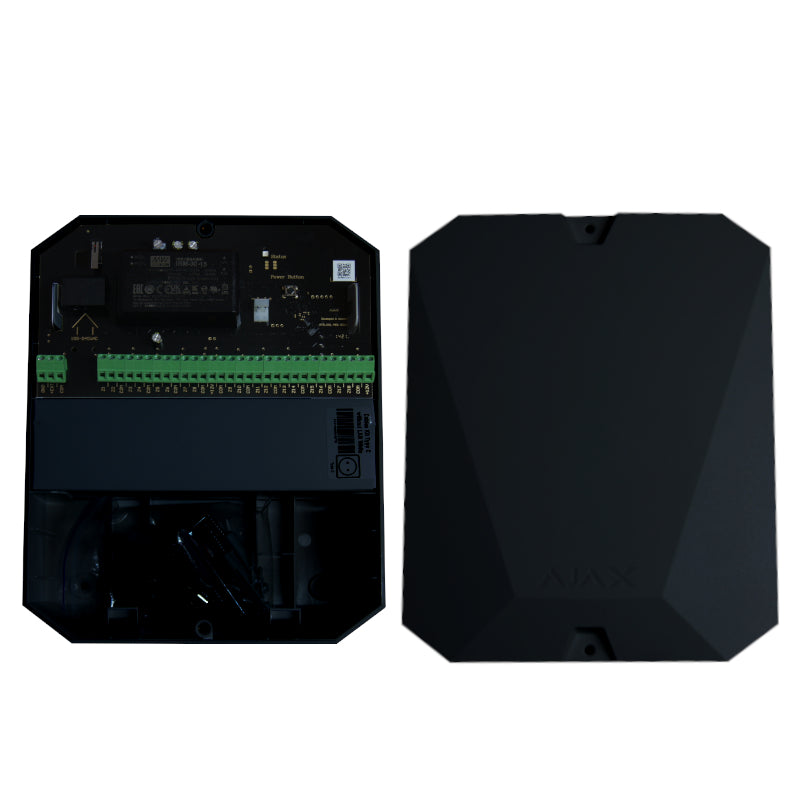

Ajax Multi Transmitter

Ajax Multi Transmitter is a module for integrating third-party wired devices into Ajax.

MultiTransmitter has 18 wired zones, each of which can be configured in the Ajax app. The detectors connected to the zones can be active 24/7, operate with entering or exiting delay, activate sirens if necessary, and participate in automation scenarios. With MultiTransmitter, the old alarm system becomes part of a secure and smart home.

Features:

Number of alarm/tamper zones :18

Supported detector contact types  :NO, NC (without R), EOL (NC with R), EOL (NO with R)

Resistance of the EOL resistor :1 kΩ to 7.5 kΩ

Alarm signals processing mode Pulsed or bistable

Main power supply :110–255 V, 50/60 Hz

Backup power : 12 V DC

Supported battery type : Battery with 4 or 7 A⋅h capacity (not included)

Detector power supply 12 V DC, up to 1 A for all detector power supply outputs

Protection against dismantling Tamper

Radio signal frequency band: 868.0–868.6 MHz or 868.7–869.2 MHz, depending on the sales region

Compatibility : Operates with all Ajax hubs, range extenders

Maximum radio signal power    Up to 7.29 mW (25 mW limit)

Radio signal range: Up to 2,000 m in the line of sight

Operating temperature range   From -10°? to +40°?

Operating humidity: Up to 75%

Dimensions :196 × 238 × 100 mm

Weight:  805 g
