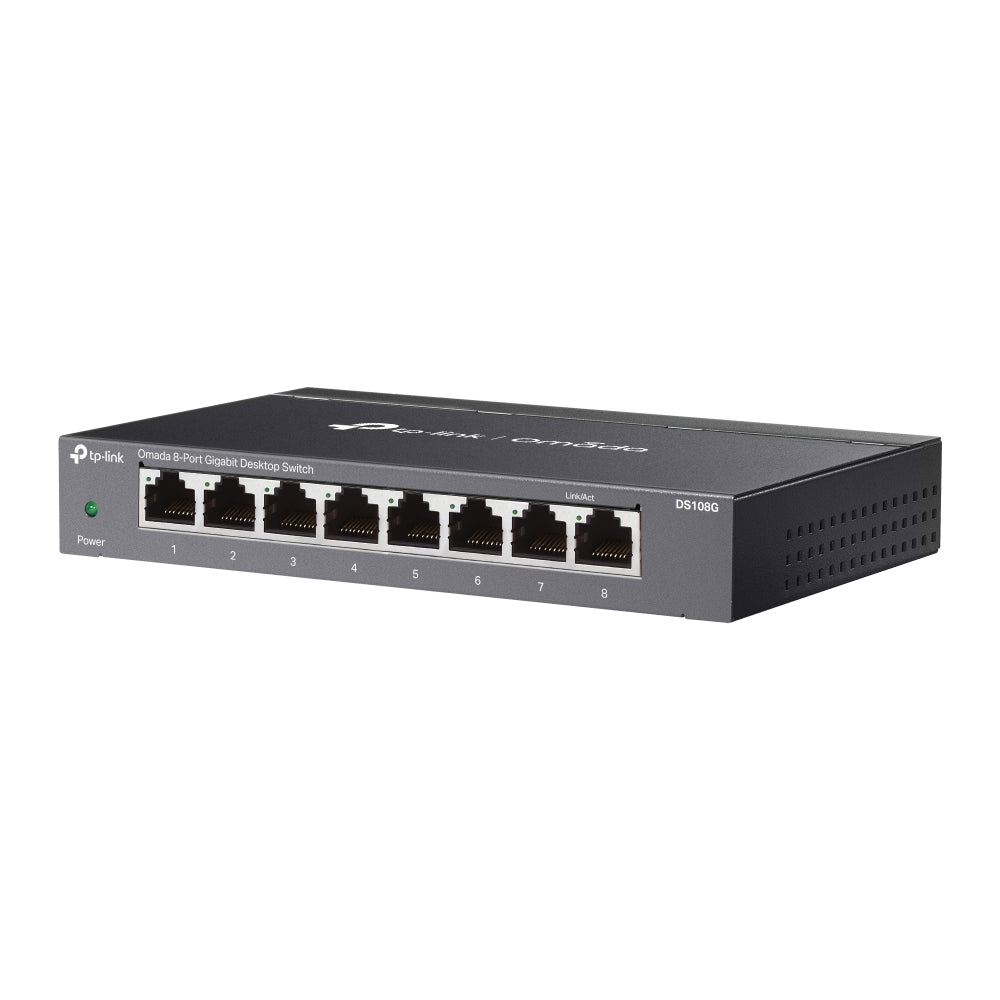

TP-LINK OMADA DS108G 8-PORT GIGABIT UNMANAGED DESKTOP SWITCH

FEATURES • 8× Gigabit Ethernet Ports - 10/100/1000Mbps RJ45 ports for high-speed wired networking • Plug-and-Play Operation - No configuration required for quick and easy deployment • Auto-Negotiation and Auto-MDI/MDIX - Automatically detects cable type and optimal speed • Energy-Efficient Technology - Intelligent power management reduces energy consumption • QoS Support - Prioritises network traffic for smoother performance • IGMP Snooping - Optimises multicast traffic for improved network efficiency • Loop Prevention Function - Detects and prevents network loop issues • Durable Metal Housing - Strong, reliable construction for long-term operation • Desktop or Wall-Mount Installation - Flexible placement options for various environments SPECIFICATIONS INTERFACE • 8× 10/100/1000Mbps RJ45 Ports • Auto-Negotiation / Auto MDI-MDIX STANDARDS • IEEE 802.3i • IEEE 802.3u • IEEE 802.3ab • IEEE 802.3x • IEEE 802.1p PERFORMANCE • Switching Capacity: 16Gbps • Packet Forwarding Rate: 11.9Mpps • MAC Address Table: 4K • Packet Buffer Memory: 1.5Mbit • Jumbo Frame: 16KB • Transmission Method: Store-and-Forward POWER • Max. Power Consumption: 3.924W (220V 50Hz) • Max. Heat Dissipation: 13.34 BTU/h • External Power Supply: 5V DC 0.6A ADVANCED FUNCTIONS • Green Ethernet Technology • 802.3X Flow Control • 802.1p / DSCP QoS • IGMP Snooping • Loop Prevention COOLING • Fanless Design PHYSICAL • Dimensions (W × D × H): 158 × 100.7 × 25.4mm CERTIFICATION • FCC • CE • RoHS ENVIRONMENT • Operating Temperature: 0~40°C • Storage Temperature: -40~70°C • Operating Humidity: 10~90% RH (Non-Condensing) • Storage Humidity: 5~90% RH (Non-Condensing)
