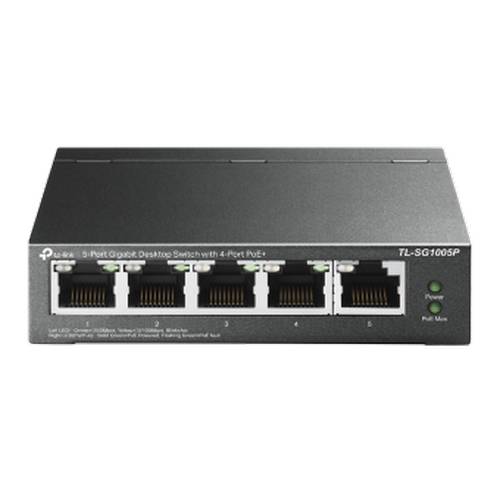

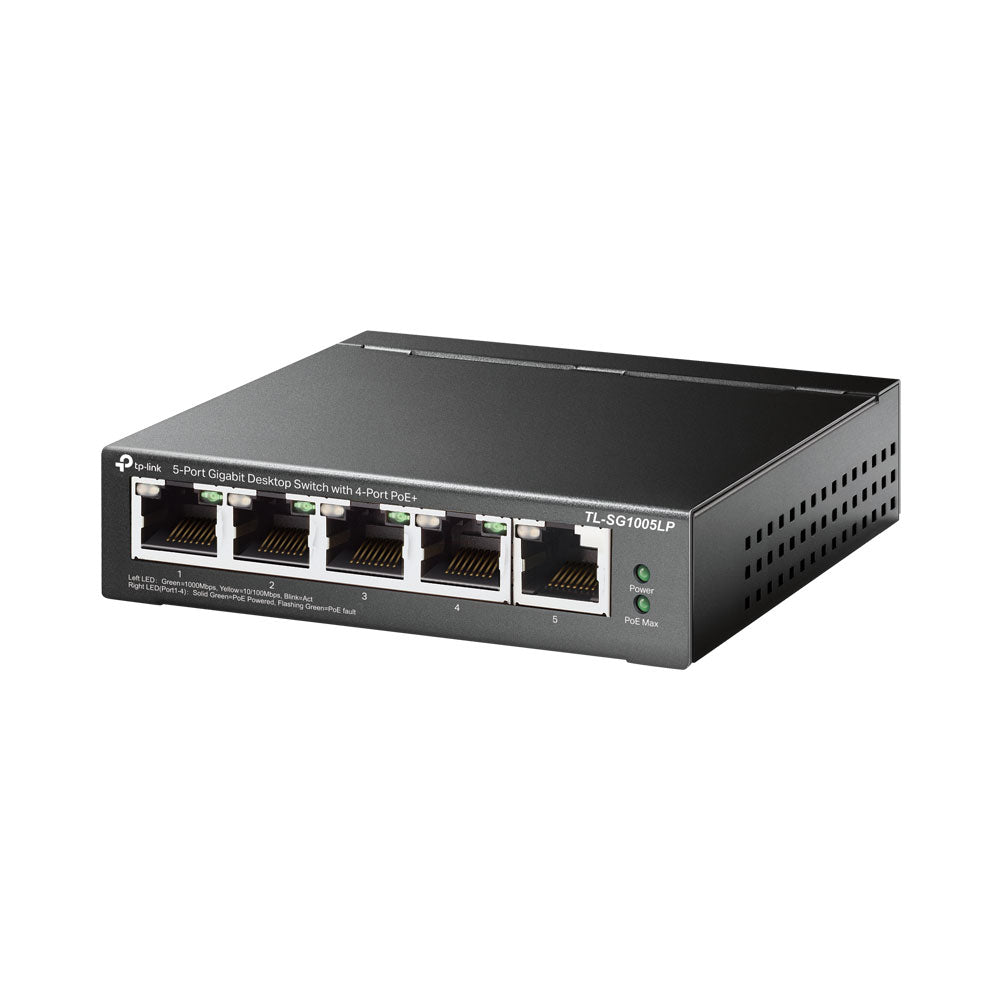

TP-LINK 5-PORT 100M DT SWITCH WITH 4-PORT POE

FEATURES • 5x 10/100/1000Mbps RJ45 ports • With four PoE+ ports, transfers data and power on one single cable • Works with IEEE 802.3af/at compliant PDs • 802.1p/DSCP QoS enable smooth latency-sensitive traffic • Supports PoE Power up to 30W for each PoE port • Supports PoE Power up to 40W for all PoE ports • Plug and play, no configuration and installation required SPECIFICATIONS HARDWARE FEATURES • Interface: 5× 10/100/1000Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX • Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • Fan Quantity: Fanless • External Power Supply: External Power Adapter (Output: 53.5 VDC / 0.81 A) • Packet Forwarding Rate: 7.44 Mpps • PoE Ports (RJ45): Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 40 W • Mac Address Table: 2K • Jumbo Frame: 16 KB • Switching Capacity: 10 Gbps • Dimensions (W x D x H): 99.8 × 98 × 25mm • Max Power Consumption: 4.12 W (220/50 Hz. no PD connected) • 47.5 W (220/50 Hz. with 40 W PD connected) • Max Heat Dissipation: 14.05 BTU/h (no PD connected) • 161.98 BTU/h (with 40 W PD connected) SOFTWARE FEATURES • Advanced Features: Compatible With IEEE 802.3af/at Compliant PDs • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping • Transfer Method: Store-And-Forward OTHERS • CertificationFCC, CE, RoHS • Environment: Operating Temperature: 0–40°C • Storage Temperature: -40–70°C • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
