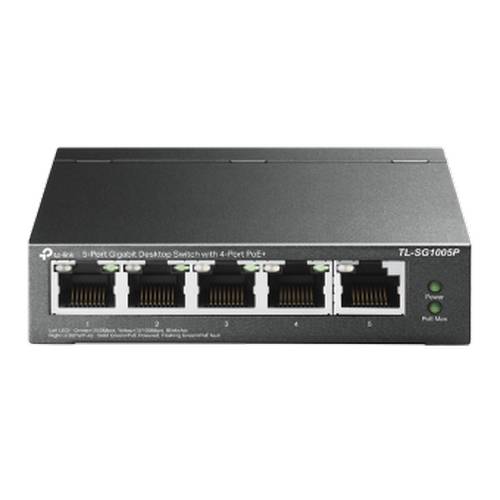

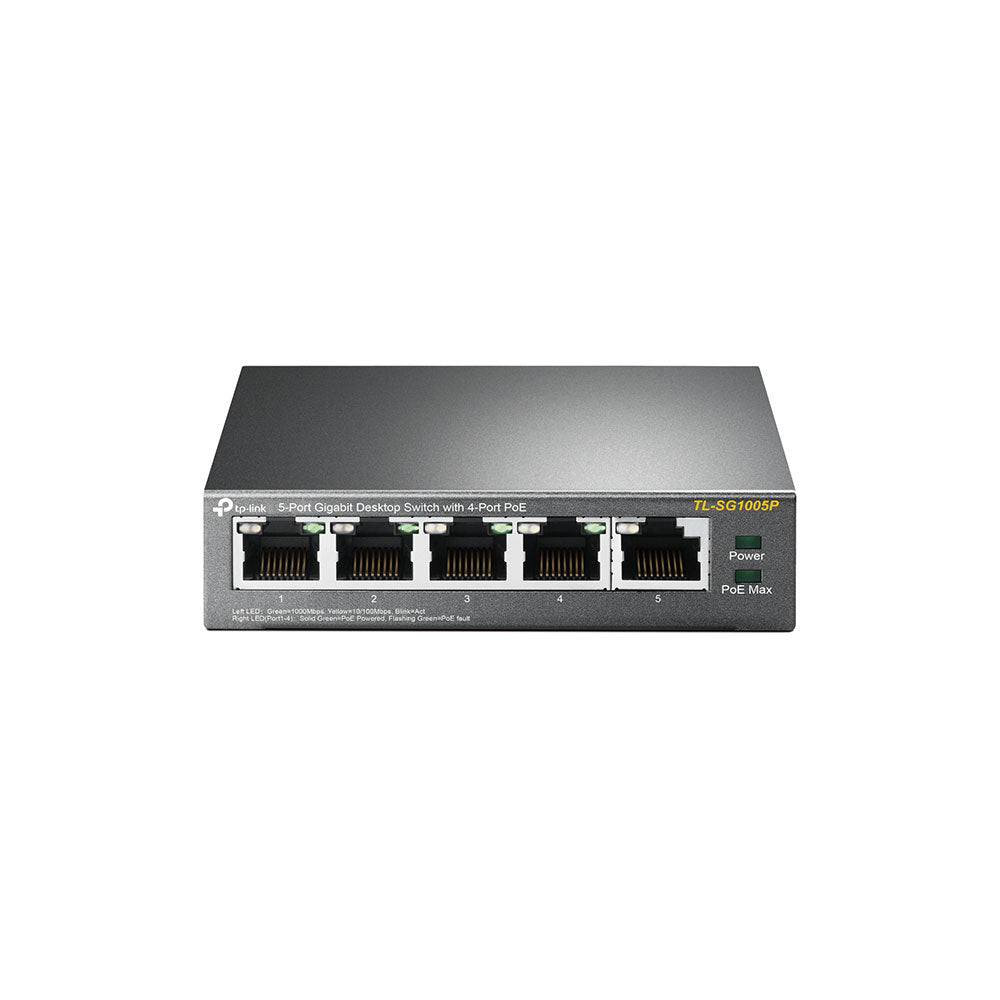

TP-LINK 5-PORT GBE 4-PORT POE DESKTOP SWITCH

FEATURES • 5 10/100/1000Mbps RJ45 ports • With four PoE ports, transfers data and power on one single cable • Working with IEEE 802.3af compliant PDs, expands home and office network • 802.1p/DSCP QoS enable smooth latency-sensitive traffic • Supports PoE Power up to 15.4W for each PoE port • Supports PoE Power up to 56W for all PoE ports • Requires no configuration and installation SPECIFICATIONS HARDWARE FEATURES • Interface: 5 10/100/1000Mbps RJ45 Ports • AUTO Negotiation/AUTO MDI/MDIX • Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • Fan Quantity: Fanless • External Power Supply: External Power Adapter(Output: 48VDC / 1.25A) • PoE Ports (RJ45)Standard: 802.3 af compliant • PoE Ports: Port1- Port4 • Power Supply: 56W • Backbound Bandwidth10Gbps • Mac Address Table2K • Dimensions (WxDxH): 99.8 x 98 x 25mm • Max Power Consumption: 3.95W(220/50Hz. no PD connected) • 64.44W(220/50Hz. with 56W PD connected) • Max Heat Dissipation: 13.48BTU/h(no PD connected) • 219.87BTU/h(with 56W PD connected) SOFTWARE FEATURES • Advanced Features: Compatible With IEEE 802.3af Compliant PDs • Priority Function • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping • Transfer Method: Store-And-Forward OTHERS • Certification: FCC, CE, RoHS • Consumption: 4.26 watts (max. no PD connected) • 63.31 watts (max. with 56w PD connected)
