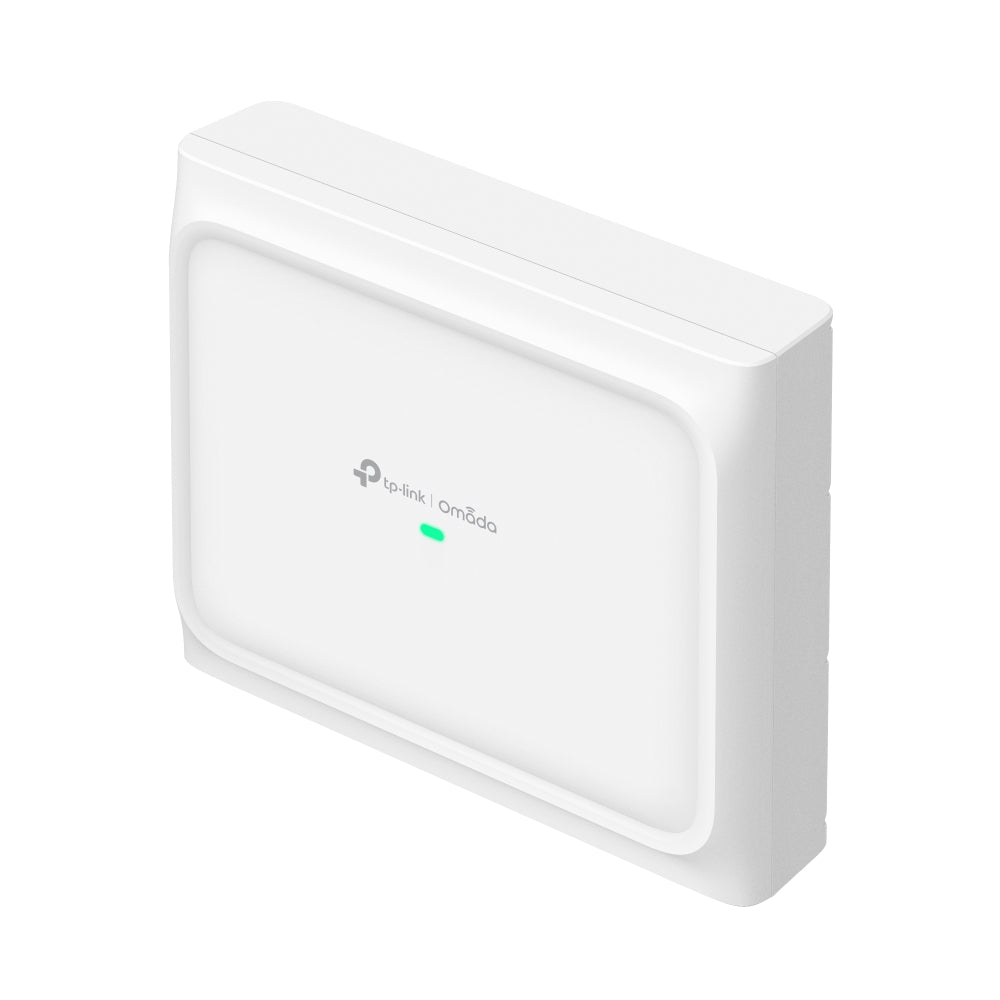

TP-LINK OMADA AX3000 IN/OUT WIFI6 AP

FEATURES • Superior Wi-Fi 6 Speeds – 2,402Mbps on 5.0GHz and 574Mbps on 2.4GHz • Directional Ultra-Range Coverage – Equipped with built-in high-gain directional antennas to deliver precise and extended coverage • Ideal for Warehouses and Outdoor Scenes – Features an IP68 waterproof enclosure with -30°C to +70°C operating range • 802.11k/v/r Seamless Roaming – Ensures uninterrupted connectivity for AGVs and handheld scanners • Flexible Deployment – Supports 802.3at PoE and Omada Mesh technology • Centralised Cloud Management – Control everything from a single interface anywhere via the Omada App or Web UI SPECIFICATIONS HARDWARE • Interface: 1× Gigabit Ethernet port supporting 802.3at PoE or 48V Passive PoE • Power Consumption: 12.5W maximum • Dimensions: 230×207.5×69.7mm • Bluetooth: Yes • Weatherproof Rating: IP68 outdoor enclosure • Mounting Options: Optional APM-110 and APM-100 brackets with adjustable positioning ANTENNA • Built-In Directional Antennas • 2.4GHz: 2×8dBi • 5GHz: 2×10dBi • Beamwidth: 120° horizontal 30° vertical WIRELESS PERFORMANCE • AX3000 Wi-Fi 6: 574Mbps on 2.4GHz and 2402Mbps on 5GHz • Standards: IEEE 802.11a/b/g/n/ac/ax • Coverage: Up to 200m+ on 2.4GHz and 500m+ on 5GHz • Concurrent Clients: 250+ devices • Modulation: 1024-QAM • OFDMA: DL/UL support • MU-MIMO: 2×2 on 2.4GHz and 5GHz WIRELESS FEATURES • Multiple SSIDs up to 16 per band • Omada Mesh and Seamless Roaming (802.11k/v/r) • Band Steering Load Balance and Airtime Fairness • Beamforming and QoS (WMM) • Automatic Channel Assignment and Transmit Power Control • Reboot Schedule and Wireless Scheduling SECURITY • WPA Personal and Enterprise • WPA2 Personal and Enterprise • WPA3 Personal and Enterprise • 802.1X Support • Captive Portal Authentication • Access Control and MAC Filtering • Wireless Isolation and SSID to VLAN Mapping • Rogue AP Detection MANAGEMENT • Omada App Support • Centralised Management via Omada Hardware Software or Cloud-Based Controller • Cloud Access Enabled • SNMP v1 v2c v3 • SSH and Web-Based Management • Multi-Site Management • Zero-Touch Provisioning • Email Alerts and Syslog Support ENVIRONMENT • Operating Temperature: -30°C to 70°C • Storage Temperature: -40°C to 70°C • Operating Humidity: 10 to 90% RH non-condensing • Storage Humidity: 5 to 90% RH non-condensing CERTIFICATIONS • CE FCC RoHS
