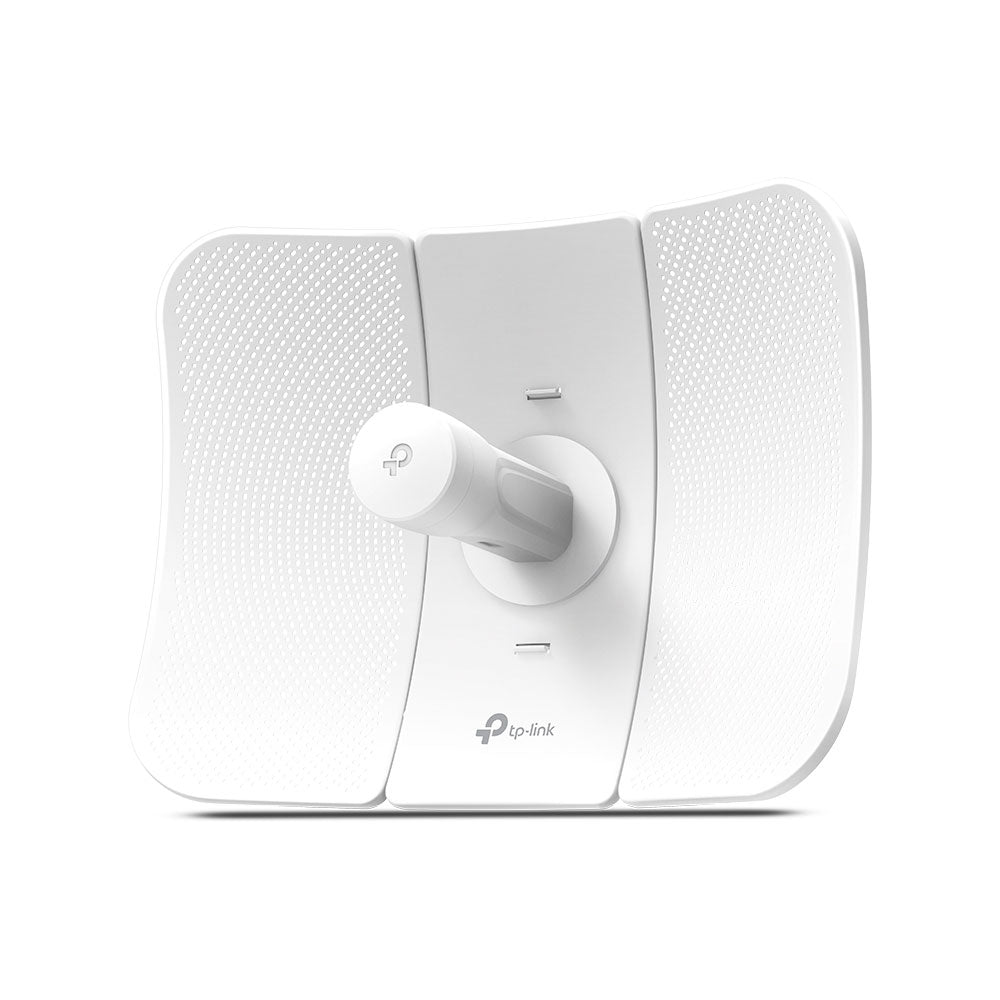

TP-LINK 5GHZ 300MBS OUTDOOR CPE WITH 23DBI ANTENNA

FEATURES • High-Speed 5.0GHz Wireless Performance - up to 300Mbps on 5.0GHz for stable long-distance connectivity • 23dBi High-Gain Directional Antenna - Integrated 2×2 MIMO antenna with dedicated metal reflector for extended range links • Optimised Beam Directivity - Improved latency and enhanced noise cancellation for cleaner transmission • Industrial Outdoor Design - IP65 weatherproof enclosure for reliable all-weather deployment and 15kV ESD and 6kV lightning protection for added durability • Sturdy Snap-Lock Assembly - Fast installation with secure structural stability in strong winds • Pharos MAXtream TDMA Technology - Increased throughput, improved capacity and reduced latency in busy environments • Pharos Control Management System - Free centralised platform for easy monitoring and configuration • Passive PoE Support - Flexible deployment with simplified installation and cable management SPECIFICATIONS HARDWARE FEATURES • Processor: Qualcomm 560MHz CPU, MIPS 74KC • Memory: 64MB DDR2 RAM, 8MB Flash • Interface: 1× 10/100Mbps Shielded Ethernet Port (LAN/PoE), 1 × Reset Button • Power Supply: 24V Passive PoE via LAN (+4,5pins; -7,8pins) • Voltage Range: 16~27VDC • Transmit Power: up to 25dBm (Adjustable by 1dBm) ANTENNA • Gain: 23dBi • Type: Integrated 2×2 MIMO Directional Antenna with Reflector • Beamwidth: 9° (Azimuth), 7° (Elevation) WIRELESS • Wireless Standards: IEEE 802.11a/n • Frequency: 5.15~5.85GHz • Max Wireless Speeds: - up to 300Mbps (40MHz, Dynamic) - up to 144.4Mbps (20MHz, Dynamic) - up to 72.2Mbps (10MHz, Dynamic) - up to 36.1Mbps (5MHz, Dynamic) • Proprietary Protocol: TDMA Mode with Pharos MAXtream PROTECTION AND ENCLOSURE • ESD Protection: 15kV • Lightning Protection: 6kV • Enclosure: Outdoor PC Stabilised Plastic • Weatherproof Rating: IP65 DIMENSIONS • Unit Dimensions: 366 × 280 × 207mm MANAGEMENT • Management Platform: Pharos Control Centralised Management • Web Management: HTTP/HTTPS • SNMP: v2c • System Tools: Throughput Monitor, Spectrum Analyser, Speed Test, Ping, Traceroute SECURITY • Wireless Security: WPA/WPA2-PSK (AES/TKIP), 64/128/152-bit WEP • Access Control: MAC Filtering, VLAN Tagging (AP Mode) POE ADAPTER • Input: 100~240VAC, 50/60Hz • Output: 24VDC, 0.6A Max • Ports: 1× 10/100Mbps PoE (Power and Data), 1× 10/100Mbps LAN (Data) • Certifications: CE, FCC, IC, RoHS, IP65 SYSTEM REQUIREMENTS • Windows 98SE/NT/2000/XP/Vista/7/8/10, macOS, Linux • Recommended Browsers: Chrome, Safari, Firefox
