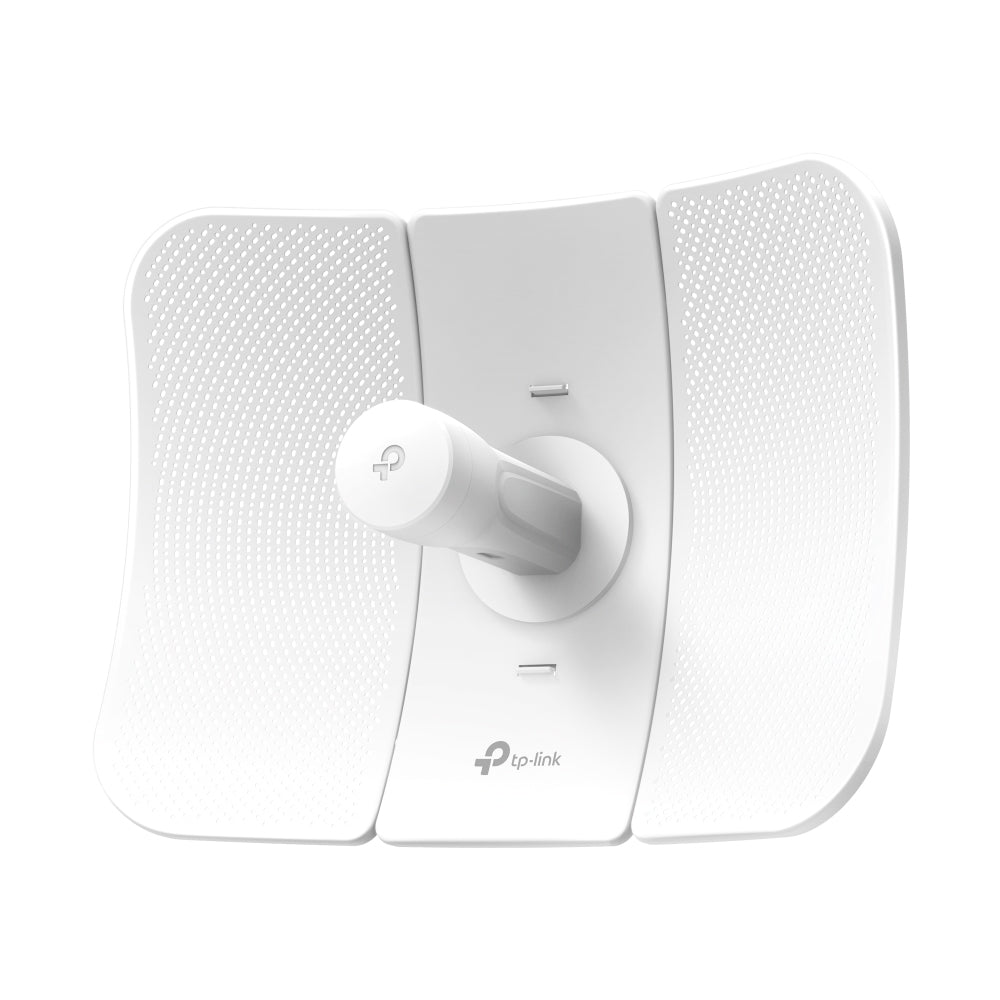

TP-LINK 5GHZ 150MBPS 23DBI CPE

FEATURES • 150Mbps Wireless Speed - Reliable 5.0GHz performance for long-distance outdoor links • 23dBi High-Gain Directional Antenna - Excellent beam directivity with improved latency and noise cancellation • Long-Range Connectivity - Ideal for point-to-point and point-to-multipoint deployments • Pharos MAXtream TDMA - Enhances throughput and reduces interference in high-density environments • Passive PoE Deployment - Includes adapter supporting up to 60m installation distance for flexible deployment • Durable Outdoor Design - IP65 enclosure with 15kV ESD and 6kV lightning protection for all-weather reliability • Quick Assembly Design - Snap-lock components ensure fast installation and structural stability in strong winds SPECIFICATIONS • Wireless Standards: IEEE 802.11a/n • Frequency: 5.15GHz~5.85GHz • Signal Rate: up to 150Mbps (Dynamic) • Transmission Power: Up to 23dBm (Adjustable) • Antenna: 23dBi High-Gain Directional Antenna • Beamwidth: 7° (Azimuth) / 10° (Elevation) • Interface: 1× 10/100Mbps Shielded Ethernet Port (LAN/PoE) • Button: Reset • PoE: 24V Passive PoE (Adapter Included) • Power Supply: Passive PoE (4,5+ Pins; 7,8– Pins), 16~27VDC • Max. Power Consumption: 4.8W • Protection: 15kV ESD Protection, 6kV Lightning Protection • Enclosure: Outdoor PC Stabilised Plastic • Weatherproof Rating: IP65 • Wireless Features: Pharos MAXtream TDMA, Beamforming, Long-Range PtP/PtMP, Auto Channel Selection, DFS, Adjustable Channel Width (5/10/20/40MHz) • Wireless Security: WPA/WPA2, WPA-PSK/WPA2-PSK, 64/128/152-bit WEP, MAC Filtering • Network Features: VLAN Tagging, Bandwidth Control, Static Routing, IP & MAC Binding • Management: Pharos Control, Web UI (HTTP/HTTPS), SNMP v2c, SSH, Remote Management • Tools: Speed Test, Ping, Traceroute, Spectrum Analyser, Antenna Alignment • Dimensions (W × D × H): 350 × 255 × 207mm • Operating Temperature: -40~70°C • Storage Temperature: -40~70°C • Operating Humidity: 10~90% RH, Non-Condensing • Storage Humidity: 5~95% RH, Non-Condensing
