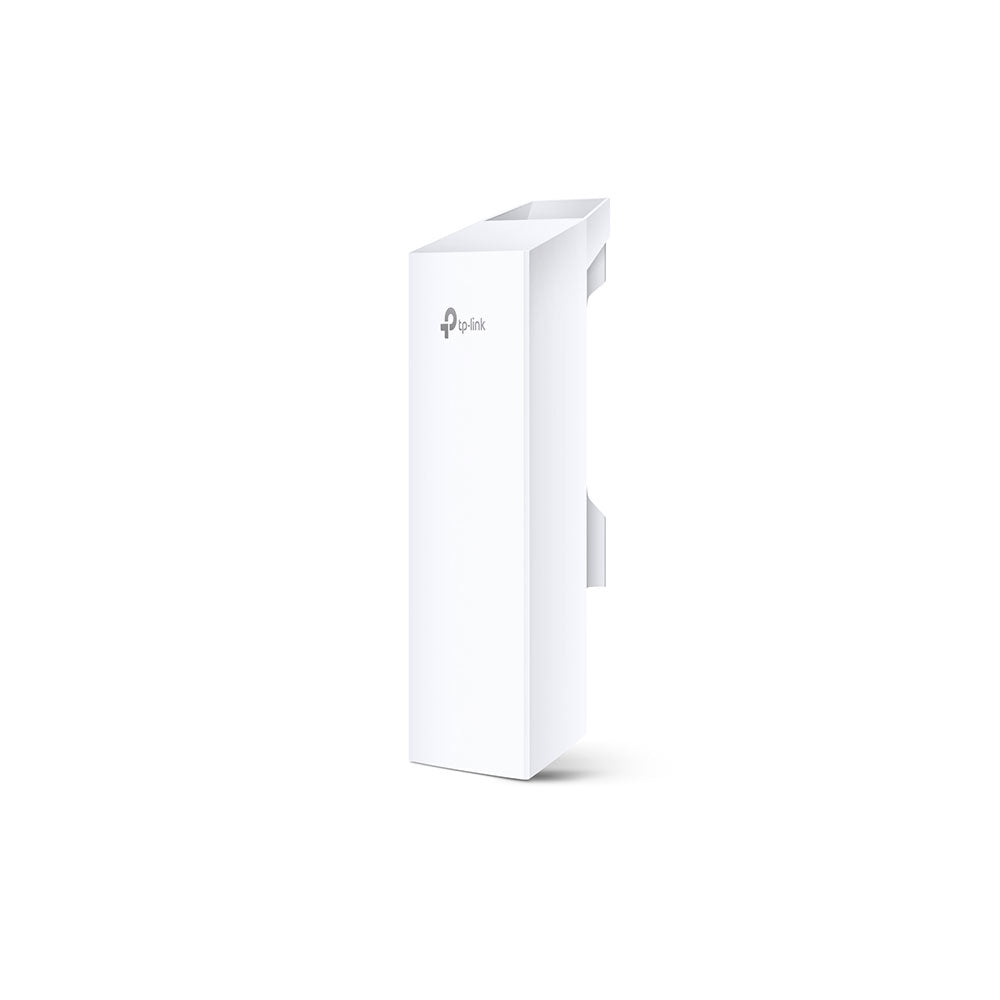

TP-LINK 5GHZ 300MBPS 13DBI TDMA OUTDOOR CPE

FEATURES • Built-in 13dBi 2x2 dual-polarized directional MIMO antenna • Adjustable transmission power from 0 to 23dBm/200mw • System-level optimizations for more than 15km long range wireless transmission • TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications • Centralized Management System – Pharos Control • AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes • Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely SPECIFICATIONS HARDWARE FEATURES • Processor: Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc • Memory: 64MB DDR2 RAM, 8MB Flash • Interface: 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in), 1 Grounding Terminal, 1 Reset Button • Power Supply: Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) • Voltage range: 16-27VDC • Power Consumption: 10.5 Watts Max • Dimensions ( W x D x H ): 224 x 79 x 60 mm • Antenna Type: Built-in 13dBi 2x2 Dual-polarized Directional Antenna • Beam Width: 45° (H-Plane) / 30° (E-Plane) • Note: For more details, please refer to datasheet • Protection: 15KV ESD Protection • 6KV Lightning Protection • Enclosure: Outdoor ASA stabilized plastic material • IPX5 waterproof Certification WIRELESS FEATURES • Wireless Standards: IEEE 802.11a/n (with Pharos MAXtream disabled) • Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled) • Wireless Speeds: Up to 300Mbps (40MHz,Dynamic) - Up to 144.4Mbps (20MHz,Dynamic) - Up to 72.2Mbps (10MHz,Dynamic) - Up to 36.1Mbps (5MHz,Dynamic) • Frequency: 5.15~5.85GHz Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. • Transmission Power: 23dBm/200mw (Adjustable power by 1dBm) Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used. SOFTWARE FEATURES • Wireless Configurations: Pharos MAXtream TDMA Technology • 802.11a/n Modes • Selectable Channel Width: 5/10/20/40MHz • Automatic Channel Selection • Transmission Power Control • Dynamic Frequency Selection (DFS) • WDS Enable/Disable • Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption • SSID Broadcast Enable/Disable • Multi-SSID with VLAN Tagging (AP mode only) • Distance/ACK Timeout Setting • Wireless MAC Address Filter • Wireless Advanced: - Beacon Interval/RTS Threshold/Fragmentation - Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia • Management Discovery and Remote Management via Pharos Control application • HTTP/HTTPS Web-based management • System Log • SNMP Agent (v2c) • Ping Watch Dog • Dynamic DDNS • SSH Server • System Tools: Wireless Signal Quality Indicators: • Signal Strength/Noise/Transmit CCQ/CPU/Memory • Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP • Spectrum Analyzer • Speed Test • Ping • Traceroute • System-level Optimizations: Optimized IGMP Snooping/Proxy for multicast applications • Hardware watch dog POE ADAPTER FEATURES • Dimensions (W x D x H): 110*57*33.5mm • Interfaces: 1 AC Jack with Earth Ground - 1 10/100Mbps Shielded Ethernet Port (Power + Data) - 1 10/100Mbps Shielded Ethernet Port (Data) • Button: Remote Reset Button • Power Status LEDs: Green • Input: 100-240VAC, 50/60Hz • Input Voltage: 100VA~240VAC @ 50Hz~60Hz • Input Current: 0.4 Max @ 100VAC • Output: 24VDC, 0.5A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) • Output Voltage: 24VDC (+4,5pins; -7,8pins) • Efficiency: >80% • Certifications: CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark • System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux OTHERS • Certification: CE, FCC, RoHS, IPX5
