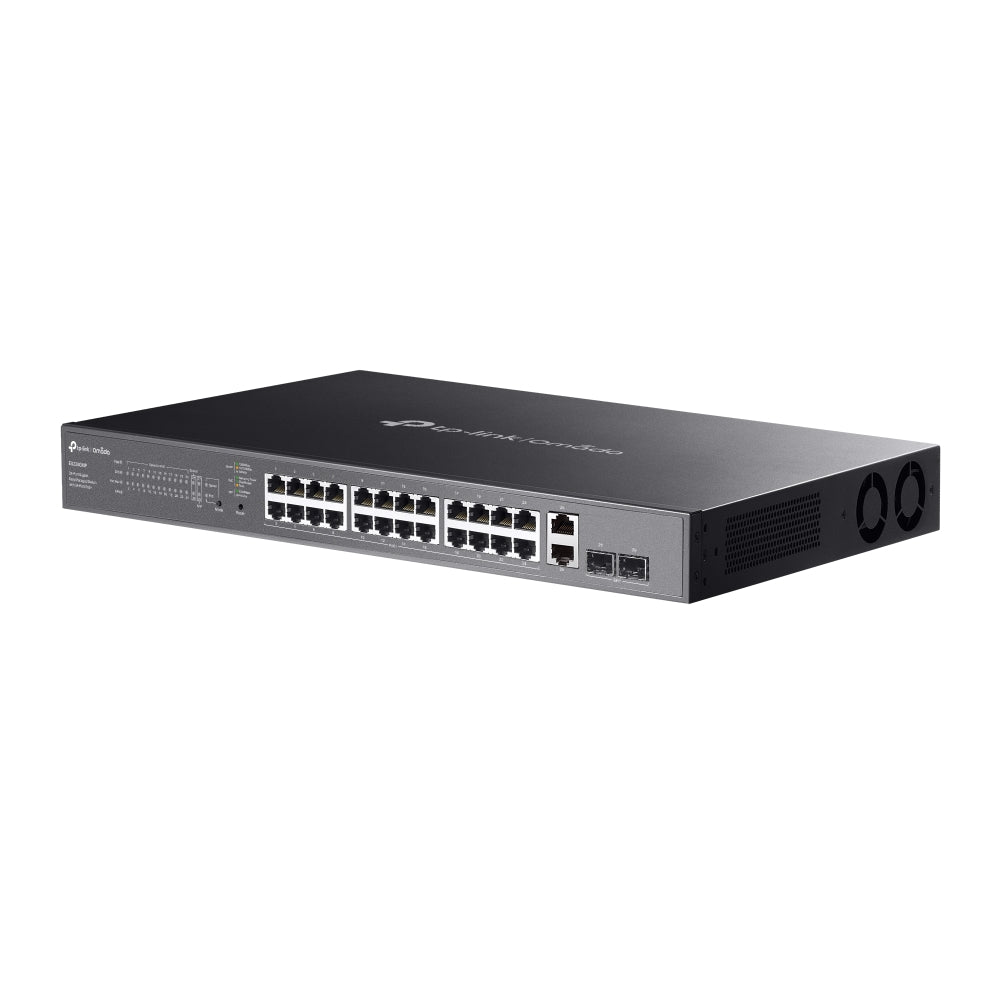

TP-LINK 28P GB MANAGED 24P POE+ 2SFP

FEATURES • 26× 10/100/1000Mbps RJ45 ports (24× 802.3af/at-compliant PoE+) • 2× Gigabit SFP port • 384W Power Budget, with up to 30W for each PoE port • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features • Centralised Cloud Management via the web or the Omada APP • Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking • Automatic Loop Prevention, VLAN, and IGMP Snooping • Durable metal casing and rack-mountable design SPECIFICATIONS HARDWARE FEATURES Interface: • 24× 10/100/1000Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+) • 2× 10/100/1000Mbps RJ45 Port • 2× Gigabit SFP Slot • Auto-Negotiation/Auto MDI/MDIX Fan Quantity: 2 Installation: Rackmountable Physical Security Lock: Yes Power Supply: 100–240V AC, 50/60Hz PoE Ports (RJ45): • Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 24 ports • PoE Budget: 384W available for all PoE+ ports, 30W max per port • Fast PoE & Perpetual PoE • PoE Auto Recovery • Up to 250m PoE transmission distance Dimensions ( W x D x H ): 440 × 330 × 44mm Surge Protection: ±6kV PERFORMANCE • Switching Capacity: 56Gbps • Packet Forwarding Rate: 41.67Mpps • MAC Address Table: 8K • Packet Buffer Memory: 4Mbit • Jumbo Frame: 15KB SOFTWARE FEATURES Quality of Service: • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control L2 Features: • Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP L2 Multicast: • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave VLAN: • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID Transmission Method: Store-And-Forward MANAGEMENT FEATURES: Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Centralized Management: • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller Cloud Access: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Zero-Touch Provisioning: Yes. Requires the use of Omada Cloud-Based Controller Management Features: • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Unified Configuration OTHERS Certification: FCC, CE, RoHS Environment: • Operating Temperature: -5°C~45°C • Storage Temperature: -40°C~70°C • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing
