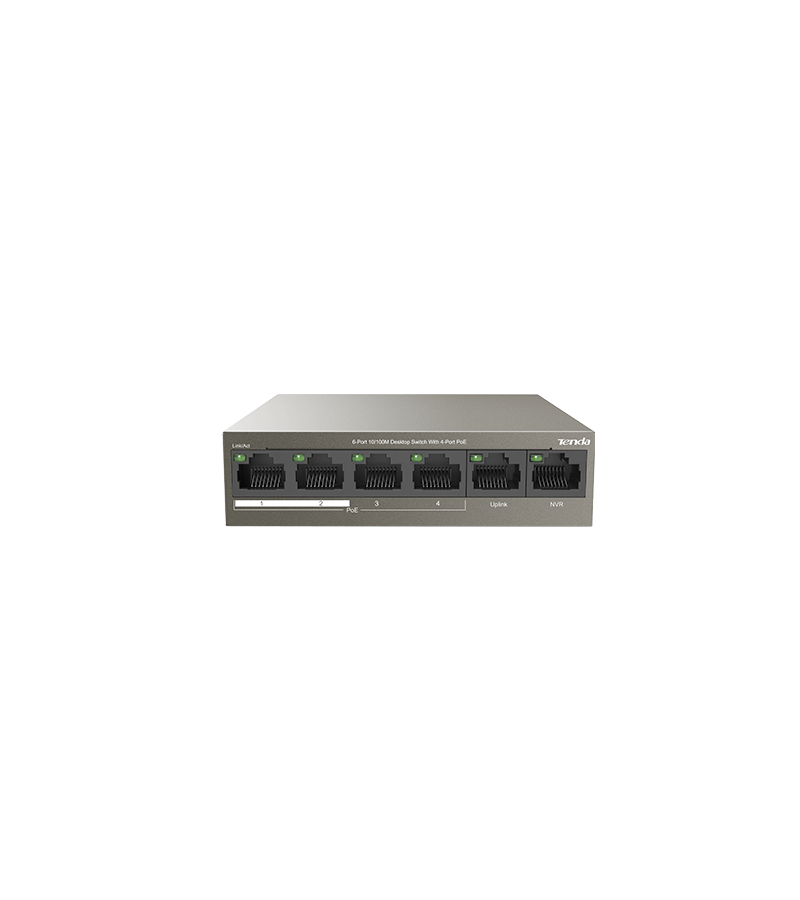

TENDA 6-Port Desktop Switch With 4-PoE

The Tenda TEF1106P-4-63W is a compact 6-port unmanaged desktop switch purpose-built for small PoE deployments like IP camera clusters or a handful of access points. Four of its six 10/100Mbps ports are 802.3af/at PoE+ outputs (this is a Fast Ethernet switch, not Gigabit), backed by a 63W total power budget with up to 30W available on any single port.

Two dedicated 10/100Mbps uplink ports connect back to your router or NVR, and a 1.2Gbps switching backplane keeps traffic moving cleanly between all six ports. An "Extend Mode" hardware DIP switch stretches usable cable runs out to roughly 250m for ports running in that mode, handy for cameras mounted further from the equipment room than standard Ethernet allows.

Built-in protections include 6kV lightning protection, PSE short-circuit protection, and surge protection, making it a solid, low-cost choice for small offices, shops, and restaurants running a basic CCTV or Wi-Fi AP setup.

• 6 ports total: 4x PoE+ (10/100Mbps) + 2x uplink (10/100Mbps)
• 63W total PoE budget, 30W max per port
• 1.2Gbps backplane, Extend Mode up to 250m
• 6kV lightning protection, unmanaged plug-and-play
