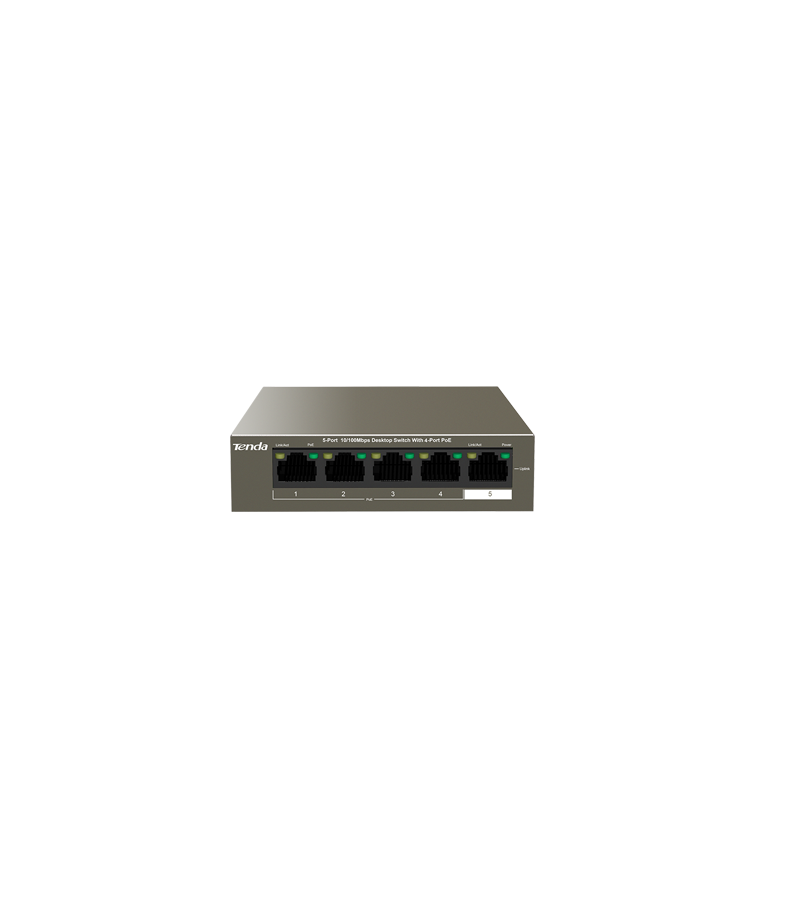

TENDA 5-Port Desktop Switch With 4 PoE

The Tenda TEF1105P-4-63W is an unmanaged 5-port Fast Ethernet switch purpose-built for powering small PoE deployments, such as a handful of IP cameras or wireless access points. Four of its five 10/100Mbps ports supply Power over Ethernet, supporting both IEEE 802.3af and 802.3at standards, with up to 30W available on a single port and a combined PoE budget of 58W across the whole switch.

A standout feature is its extended-distance PoE transmission, reaching up to 250 metres on a single cable run, well beyond the standard 100m Ethernet limit, which makes it especially useful for outdoor CCTV installations or large properties where the camera is far from the network rack. All ports include 6kV lightning protection, an important safeguard for outdoor-facing PoE runs prone to power surges.

• Ports: 5 x 10/100Mbps (4 with PoE out, 1 uplink)
• PoE standard: IEEE 802.3af/at, up to 30W per port, 58W total budget
• Extended PoE distance: up to 250m
• Protection: 6kV lightning protection on all ports
• Build: fanless metal housing, desktop or wall-mountable

It's a practical, plug-and-play core for a small CCTV or Wi-Fi AP rollout, supplying both data and power to multiple devices from a single switch without needing separate injectors for each one.
