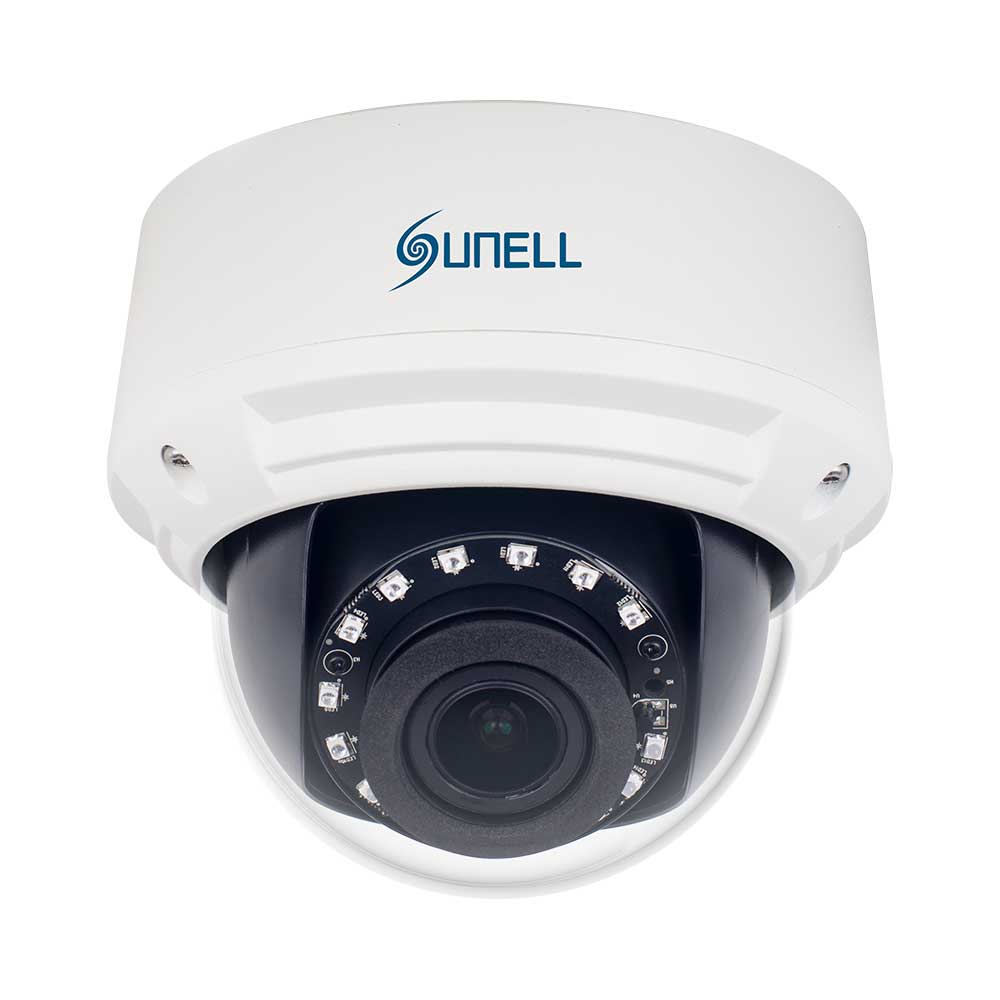

SUNELL MVF IP MINI DOME 4MP CMOS, 2592X1520, POE

FEATURES • Sunell 4MP Motorized Vari-Focal IP PoE Mini Dome Camera (IPV57/41UDR/Z) • 1/3" Progressive Scan CMOS • Motorized lens 2.7~12mm • 25fps/30fps@4MP(2592*1520) • Triple Streams • Smart IR Up to 30m • Low bitrate, Excellent low light performance • WDR, 3D DNR • ROI, Defog, HLC, Corridor mode, DIS • IP67, IK10 SPECIFICATIONS Camera • Image Sensor: 1/3" Progressive Scan CMOS • Effective Pixels: 2592(H)×1520(V) • Scanning System: Progressive • Electronic Shutter: 1/5-1/20000s • Min. Illumination: Colour: 0.05 Lux @(F1.2,AGC ON), B/W: 0 Lux @(IR LED ON) • S/N Ratio: 55dB • IR Range: Up to 30m • IR On/Off Control: Auto/ Manual • IR LEDs: 15pcs • Pan/Tilt/Rotation Range: Pan: 0˚~355˚, Tilt: 0˚~80˚, Rotation: 0˚~355˚ Lens • Lens Type: Motorised • Iris: Auto Iris • Focal Length: 2.7~12mm • F Number: F1.3 • Angle of View: 100°~ 30° • Focus Control: Motorised • Close Focus Distance: 0.2m Video • Compression: H.265,H.264,MJPEG • Max. Resolution: 4MP (2592×1520) • Streaming Capability: 3 Streams • Stream1: 2592×1520/2560×1440/2304×1296/ 1920×1080/1280×720 @25/30fps Frame Rate • Stream2: D1/VGA/640×360/CIF/QVGA @25/30fps • Stream 3: VGA/CIF/QVGA @25/30fps • Bit Rate Control: CBR/VBR Bit Rate • Stream1: 500kbps~12000kbps • Stream 2: 100kbps~6000kbps • Stream 3: 100kbps~3000kbps • Day/Night: ICR • Image Enhancement: HLC / Defog / WDR (120dB) • White Balance: Support • Gain Control: Auto/Manual • Noise Reduction: 2D/3D DNR • Electronic Image Stabilisation: (EIS): Support • Smart IR: Support • Mirror: Support • Region of Interest: Support • Motion Detection: Support • Privacy Masking: Support Audio • Compression: G.711 ,RAW_PCM • Bit Rate: 64kbps (G.711), 128kps (RAW_PCM) Network • Protocols: IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, APR, SNMP • Interoperability: ONVIF • Streaming Method: Unicast • Max. User Access: 10 Users • Web Viewer:
