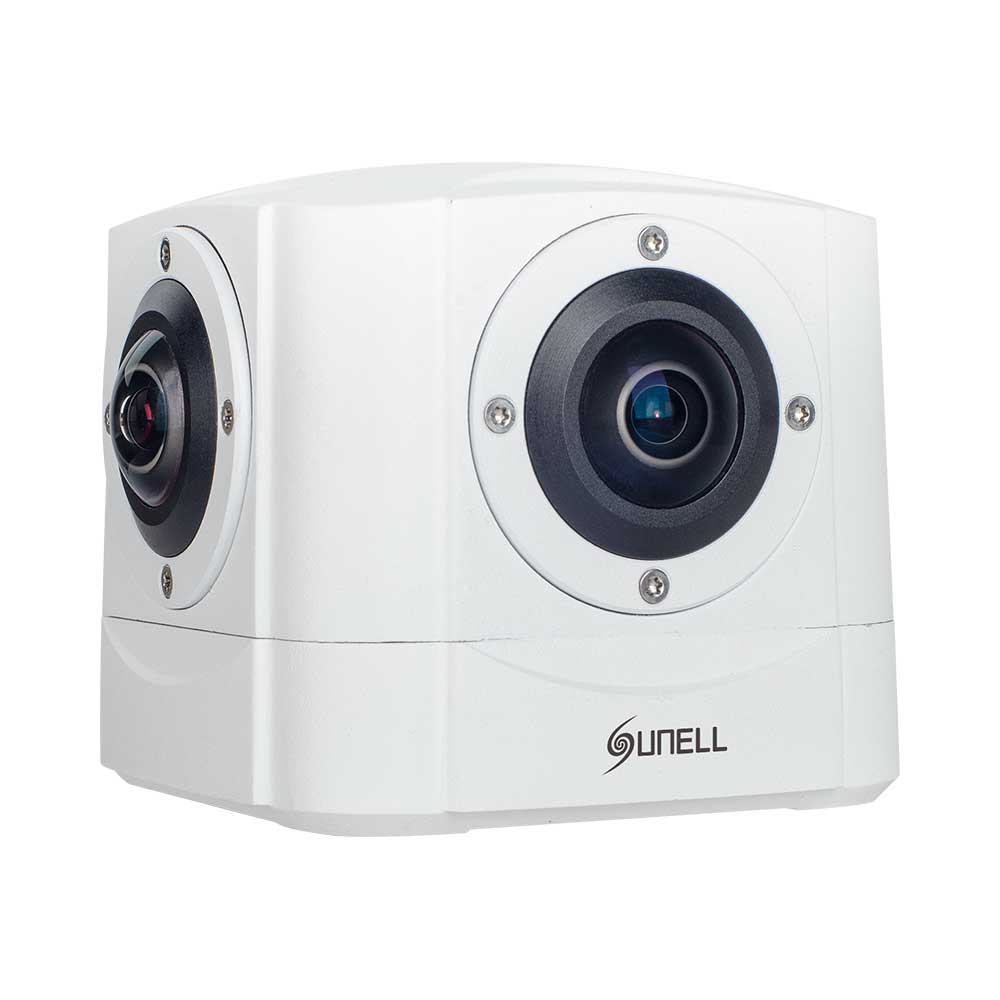

SUNELL IP MULTISENSOR 32MP 360 DEG CAMERA

FEATURES • Four 1/1.8" 8MP Progressive Scan CMOS • H.265/H.264 Triple-stream encoding • Edge stitching 25fps@7680×4320 • 720°Panoramic View • Unique De-warping Image • Support Camera & Software De-warping • ROI, Defog, HLC, BLC, AWB, AGC, EIS, IVS • IP66 SPECIFICATIONS Camera • Image Sensor: Four 1/1.8" 8MP Progressive Scan CMOS • Effective Pixels: 7680(H)×4320(V) • Scanning System: Progressive • Electronic Shutter: 1/5-1/20,000s • Min. illumination: Colour: 0.002 Lux @(F2.2, AGC ON), B/W: 0.0002 Lux @( F2.2, AGC ON) S/N Ratio: ≥55dB • IR Range: N/A • IR On/Off Control: N/A • IR LEDs: N/A • Pan/Tilt/Rotation Range: N/A Lens • Lens Type: Fixed • Iris: Fixed Iris • Focal Length: 2.2mm • F Number: F2.2 • Angle of View: 360°×360° • Focus Control: Fixed • Close Focus Distance: N/A Video • Compression: H.265, H.264, MJPEG • Max. Resolution: Edge stitching 7680×4320 • Streaming Capability: 3 Streams • Stream /Stream1: 7680×4320 @25fps, 5760×3240/3840×2160 @25fps/30fps • Frame RateStream: 2: 2560×1440/1080p/D1 @25fps/30fps • Stream3: 720P/640×360/D1 @25fps/30fps • Bit Rate Control: CBR/VBR • Bit RateStream 1: 500Kbps~16Mbps • Stream 2: 500Kbps~12Mbps • Stream 3: 100Kbps~8Mbps • Day/Night: Colour • Image Enhancement: DWDR / BLC / HLC / Defog • White Balance: Auto/Manual • Gain Control: Auto/Manual • Noise Reduction: 2D/3D DNR • Electronic Image Stabilization: (EIS)Support • Smart IR: N/A • Mirror: N/A • Region of Interest: Support • Motion Detection: Support • Privacy Masking: Support • Video Mode: Full Screen Stretch, 360° Panorama, Crystal Ball, Asteroid, Auto Cruise Audio • Compression: G.711 • Bit Rate: 64kbps (G.711), 128kps (RAW_PCM) Network • Protocols: IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, APR, SNMP • Interoperability: ONVIF • Streaming Method: Unicast • Max. User Access: 10 Users • Web Viewer: V4.3) Intelligence • IVS: Perimeter, Single Virtual Fences, Double Virtual Fences, Loiter, Multi Loiter, Object Left, Object Removed, Abnormal Speed, Converse, Illegal Parking, Signal Bad, Audio Anomaly Detection Interface • Ethernet: 1 Ethernet (1000 Base-T) RJ-45 Connector • Audio: 1ch Audio In, 1ch Audio Out, 2ch Built-in MIC • Alarm: 1ch Alarm In, 1ch Alarm Out • RS485: N/A • BNC Output: N/A • Reset Button: Support • Edge Storage: N/A Electrical • Power Supply: DC12V / POE+ • Power Consumption: Max. 10W • Operating Temperature: -30°C ~ 60°C • Working Temperature: -40°C ~ 60°C • Operating Humidity: Less than 90% RH • Ingress Protection: IP66 • Certifications: CE / FCC • Casing: Metal • Dimensions: 112.2×112.2×90mm • Net Weight: 1.25kg
