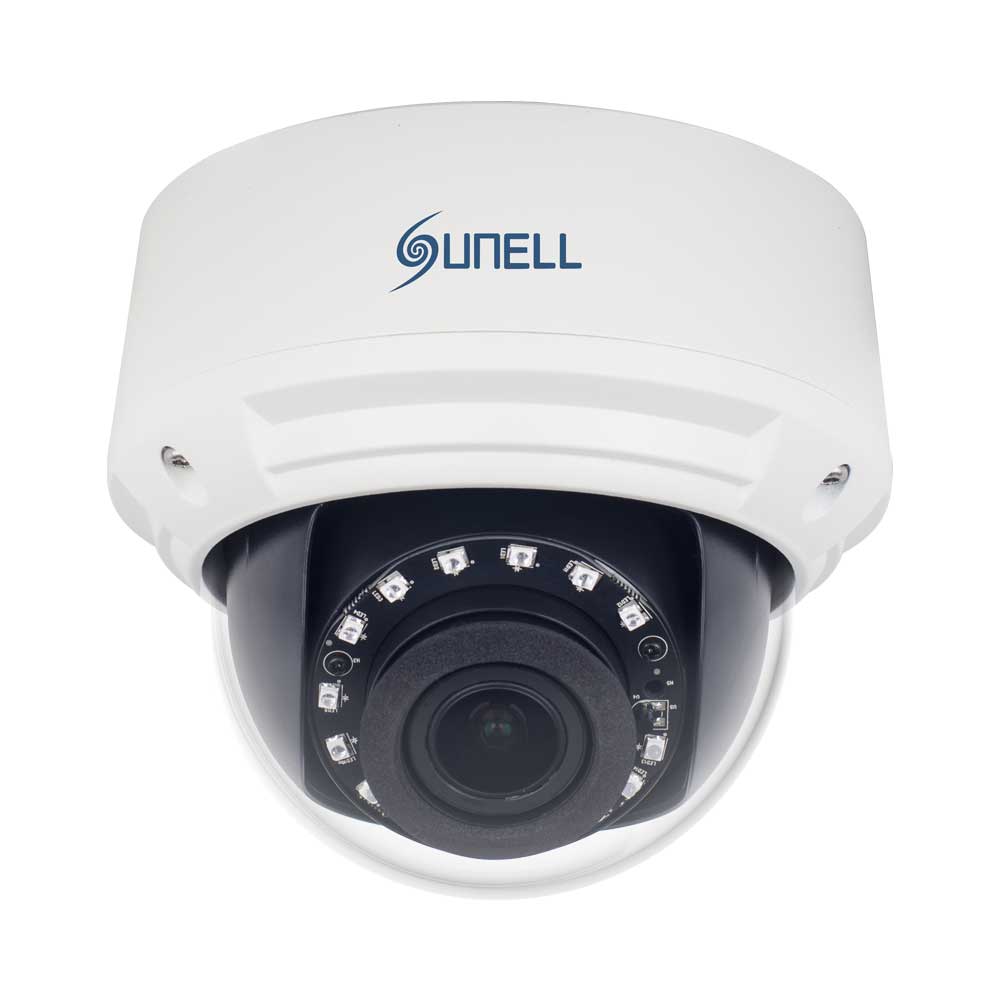

SUNELL MVF IP DOME 8MP, 4K, HQ, POE

FEATURES • 1/2.5" progressive scan CMOS • 3.3~12mm motorized lens • 30fps@4K(3840×2160) • Triple streams • WDR, 3D DNR, ROI, HLC, BLC, Aisle mode, Defog • Smart IR up to 30m • IP66, IK10 SPECIFICATIONS Camera • Image Sensor: 1/2.5" Progressive Scan CMOS • Effective Pixels: 3840(H)×2160(V) • Electronic Shutter: 1/5-1/20,000s • Min. illumination: Colour: 0.01 Lux @(F1.2,AGC ON), B/W: 0 Lux @(IR LED ON) • S/N Ratio: 55dB • Day/Night: ICR • Wide Dynamic: WDR (120dB) Range • IR Range: Up to 30m • IR On/Off Control: Auto/ Manual • IR LEDs: 15pcs • Pan/Tilt/Rotation  Range: Pan: 0˚~355˚, Tilt: 0˚~80˚, Rotation: 0˚~355˚ Lens • Lens Type: Motorised • Iris: Fixed Iris • Focal Length: 3.3~12mm • F Number: F1.4 • Angle of View: 108.6° ~ 35° • Focus Control: Motorised Video • Compression: H.265, H.264, MJPEG • Max. Resolution: 8MP (3840×2160) • Streaming Capability: 3 Streams • Stream1: 3840×2160 / 3072×2048 / 2592×1520 / 1920×1080 @25/30fps Frame Rate • Stream 2:  D1 / VGA / CIF / QVGA @25/30fps • Stream 3: VGA / CIF / QCIF @25/30fps • Bit Rate Control: CBR/VBR Bit Rate • Stream 1: 500kbps~16Mbps • Stream 2: 10Kbps~6Mbps • Stream 3: 10Kbps~3Mbps • Image Enhancement: HLC / BLC / Anti-shake / Defog /  WDR (120dB) • White Balance: Support • Gain Control: Auto/Manual • Noise Reduction: 2D/3D DNR • Smart IR: Support • Mirror: Support • Aisle Mode: Support • Region of Interest: Support • Motion Detection: Support • Privacy Masking: Support Audio • Compression: G.711, RAW_PCM • Bit Rate: 8kbps, 16kps, 64kbps Network • Protocols: IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP • Interoperability: ONVIF, SDK, CGI • Streaming Method: Unicast • Max. User Access: 10 Users • Web Viewer:
