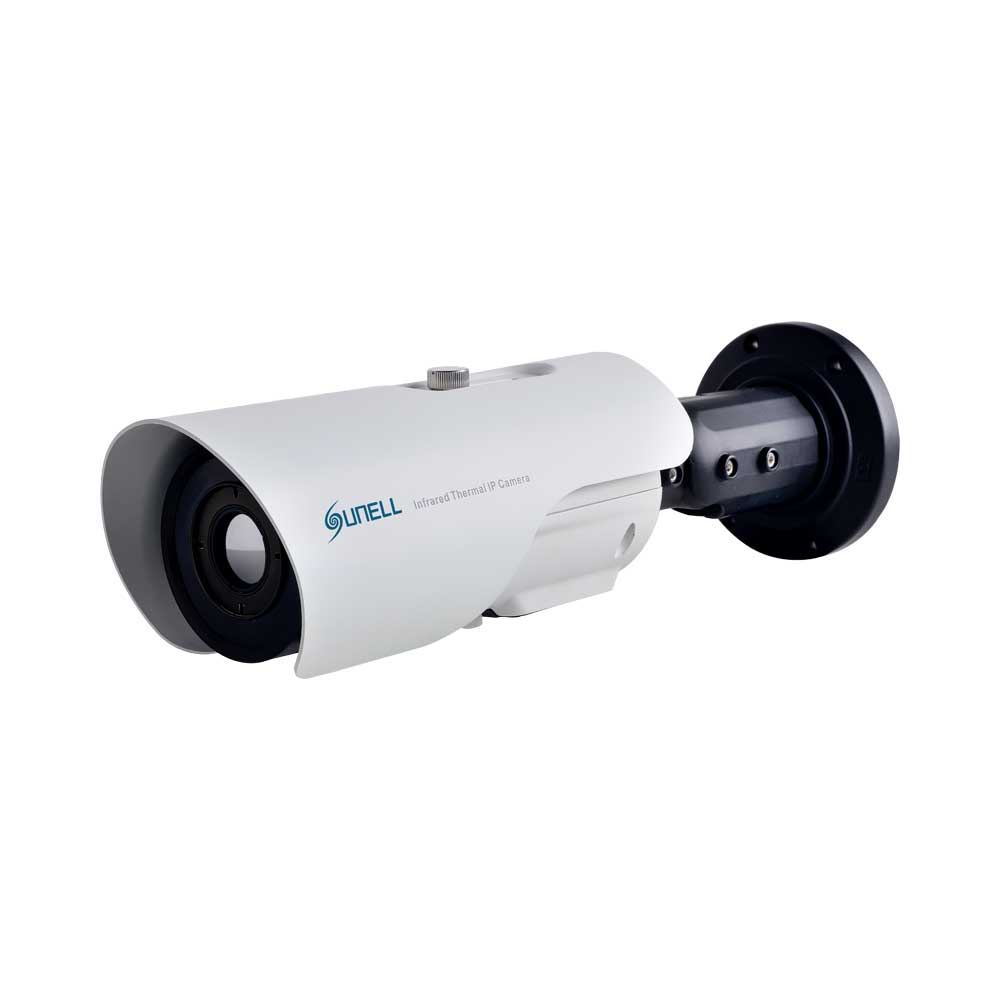

SUNELL THERMAL BULLET 50MM 800M POE+

FEATURES • On-Board Temp-Detection Algorithm • Effective Pixels 400×300 • Sensitivity 40mK • 20 Spots / 2 Lines / 16 Areas Temperature Detection • 17 Colour Control • DVE Image Enhance • Standalone Operating SPECIFICATIONS Thermal Camera • Detector Type: Uncooled IRFPA Micro bolometer • Effective Pixels: 400(H) ×300(V) • Pixel Size: 17um • Thermal Sensitivity (NETD): 40mK @F1.0, 300K • Spectral Range: 8~14um • Image Setting: Polarity LUT/ DVE/ Mirror/ FCC/ /3D DNR Brightness/Contrast/ ROI • Colour Palettes: Black-Heat /White-Heat/Rainbow/Iron-Red up to 17 modes • Pan/Tilt/Pan: 0˚~360˚; Tilt: 0˚~90˚; Rotation :0˚~360 Rotation Range Thermal Lens • Lens Type: Fixed • Focus Control: Manual Focus • Focal Length: 8mm • F No: F1.0 • Angle of View: H: 46°, V:35.3° • Detection Distance Fire: (1m×1m) 235m • Detection Distance Man: (1.8m×0.5m) 235m • Detection Distance Vehicle: (4m×1.5m) 722m • Recognition Distance Fire: (1m×1m) 78m • Recognition Distance Man: (1.8m×0.5m) 59m • Recognition Distance Vehicle: (4m×1.5m) 180m Video and Audio • Compression: H.265, H.264, MJPEG • Frame Rate: Main Stream: D1 @25/30fps • Sub Stream: CIF @25/30fps • Bit Rate Control: CBR/VBR • Bit Rate: 100Kbps~6Mbps • Region of Interest: Off / On (8 Zone, Rectangle) • Electronic Image Stabilisation (EIS): N/A • Digital Zoom: 16x • Mirror: Support • Defog: Support • Motion Detection: Support • Privacy Masking: Off / On (5 Area, Rectangle) • DVE Image Enhance: Support • Audio Compression: G.711, AMR, RAW_PCM (Optional) Intelligence • Intelligent Functions: Motion Detection, Disk Alarm, I/O Alarm, Temperature Alarm • IVS: Perimeter, Single Virtual Fences, Double Virtual Fences, Object Left, Object Removed Temperature Detection • Detection Mode: Spot, Line, Area • Detection Preset: Support 3 temperature measurement rule types, 20 rules (20 points / 2 lines / 16 regions) • Temperature Alarm: Over temperature alarm, Temperature difference alarm • Accuracy: ±2°C / ±2% • Response Time: ≤30ms • Effective temperature working environment: -40°C ~ 60°C • Theory of temperature measurement range: -40°C ~ 150°C • Temperature display mode: Temperature target >5°C, Display absolute temperature value, • Temperature target ≤5°C, Display relative temperature value (temperature difference DEV = highest value - average) NETWORK • Ethernet: RJ-45 (10/100Base-T) • Protocols: IPv4/IPv6 ,HTTP,RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, SIP ,802.1x • Interoperability: ONVIF, CGI • Streaming Method: Unicast • Max. User Access: 10 Users • Edge Storage: NAS • Local PC for instant recording • MicroSD Card: up to 128GB • Web Viewer:
