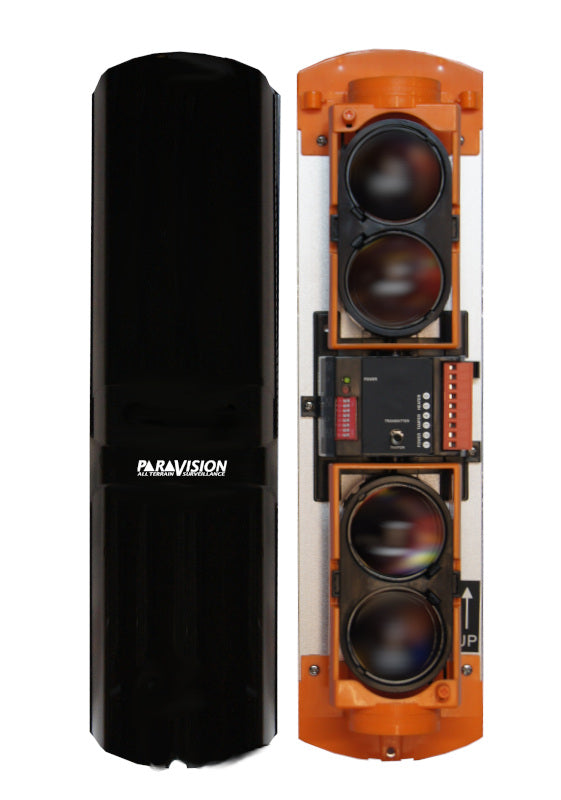

Paravision ABH-200M

Paravision ABH-200M is a Infrared Barrier with 4 line  beam 200 meters.

Features:
Wired and Bus systems are compatible, holographic spot real-time report
Two sets of independence precession mini adjustment with optical aiming lens inside
Adopts DSP chip, patented multi-dimensional code, real detection alarm  technology
Special removing receiver, the large power emitter.
Patent equivalent checking, special digital filter wave and its anti- interference of light arrive at IP65.
Adopt solid relay of longevity, low voltage and low power consumption.
Full function of self-diagnose, environment self-adjustment , troubles locked
Resistant to rain, fog, snow and frost.
The digital ambiguous artificial intelligent recognition: four bands    frequency and adopt the artificial intelligent ambiguous judgment to   reduce the rate of wrong alarm to zero.
Horizontal/vertical optional angle can be easy to adjust

Technical parameters:

Model	ABH-50L	ABH100L	ABH-150L	ABH-200L	ABH-250L
Detecting distance(outdoor)	50m	100m	150m	200m	250
Detecting distance(indoor)	150m	300m	450m	600m	750m
Detection method	Simultaneous interruption of 4 infrared beams
Number of beams	4 beams
Response speed	35-700msec
Alarm output	Switch signal output(NO/NC)
Power and Voltage	DC12~24V ; AC11-18V
Current consumption	105mAMax.
Tamper	NC. 1B contact output?DC26V/0.5AMax.
Exterior dimension	110mm x 105mm x 345mm
Weight	2.8kg
