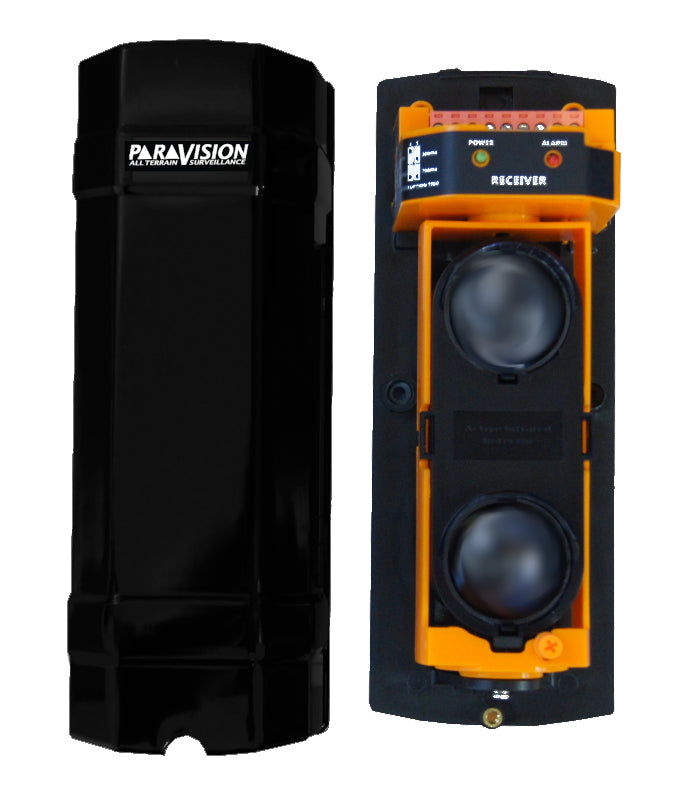

Paravision ABT-40 is a Infrared Barrier with 2 line beam 40 meters.
Features:
Full time NC/NO relay output, compatible with other brand burglar alarm systems such as HONEYWELL, BOSCH, Paradox, GE and DSC, etc.
Digital frequency conversion.
Easy alignment with visual LED indicator.
PC engineering plastic material.
Professional waterproof design with the rubber seal around.
Resistant to rain, fog, snow and frost.
IP degree: IP65
Adopt microprocessor control(CPU), real digital circuit.
Built-in automatic adjustable strong light filtering system (up to 50,000 LUX), Good performance against direct sunlight, completely against fluorescent and car light.
AGC circuit, the detector will automatically increase sensitivity when faced harsh environment.
Horizontal / vertical optical angle can be easy to adjust.

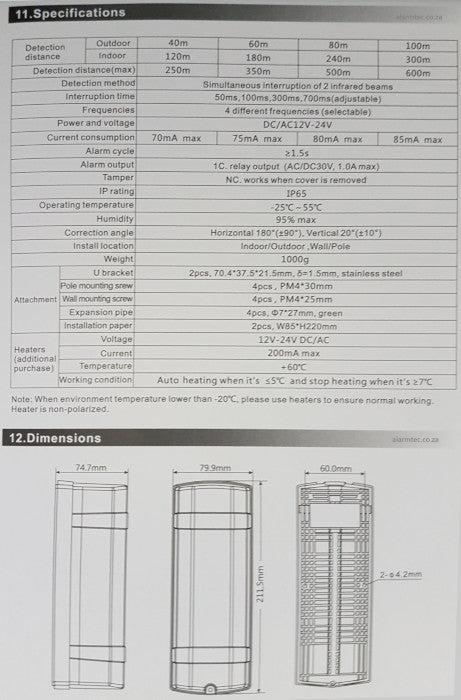

Technical parameters:
|
Model |
ABT-40 |
|||
|
Detecting distance (outdoor) |
40m |
|||
|
Detecting distance (indoor) |
120m |
|||
|
Detection method |
Simultaneous interruption of 2 infrared beams |
|||
|
Response speed |
12-250msec |
|||
|
Alarm output |
Switch signal output(NO/NC) |
|||
|
Power and Voltage |
DC12-24V; AC11-18V |
|||
|
Current consumption |
100mA MAX |
|||
|
Humidity |
95% MAX |
|||
|
IP rating |
IP 65 |
|||
|
Exterior dimension |
80mm x 77mm x 195mm |
|||
