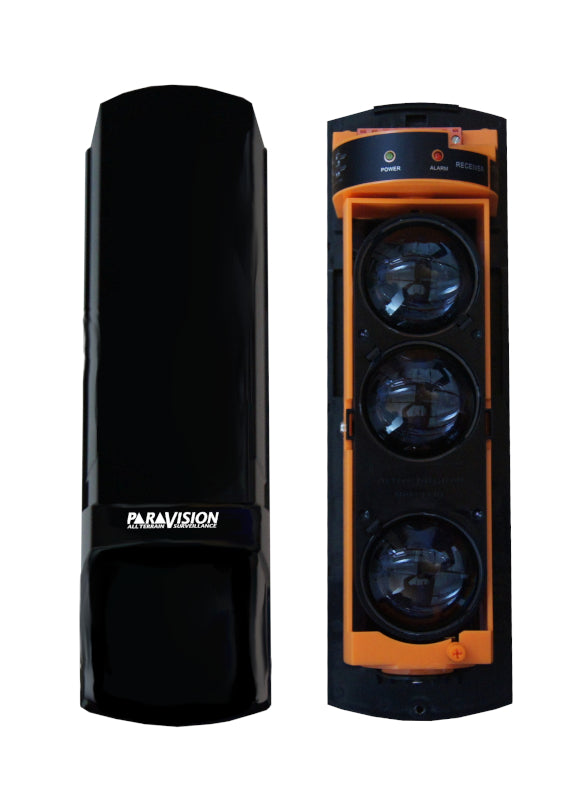

Paravision ABE-100

Paravision ABE-100 is a Infrared Barrier with 3 line  beam 100 meters.

Features:
Precision optical focusing lens technology and bus control technology
Outdoor double beam gain self-regulation, adaptable to terrible weather such as rain fog and snow weather
Single and dual beam models with ranges up to 250'
Special filter lens and circuit, anti-strong light jamming
Suitable for outdoor installations
Lightning proof circuit design
Easy alignment features reduce installation time
High-power infrared receiver on the tube, low-power digital frequency processing technology
Horizontal/vertical optical angle can be easy to adjust


Technical parameters:

Model:	ABE-100
Distance(outdoor)	100m
Distance(indoor)	300m
Detection method	Simultaneous interruption of 3 infrared beams
Response speed	50-700msec
Number of beams	3 beams
Alarm output	Switch signal output(NO/NC)
Power and Voltage	DC12~24V ; AC11-18V
Current consumption	100mAMax.
Humidity	95% MAX
Tamper	NC. 1B contact output,DC30V/0.5AMax.
Exterior dimension	90mm x 100mm x 270mm
Weight	1.9kg
