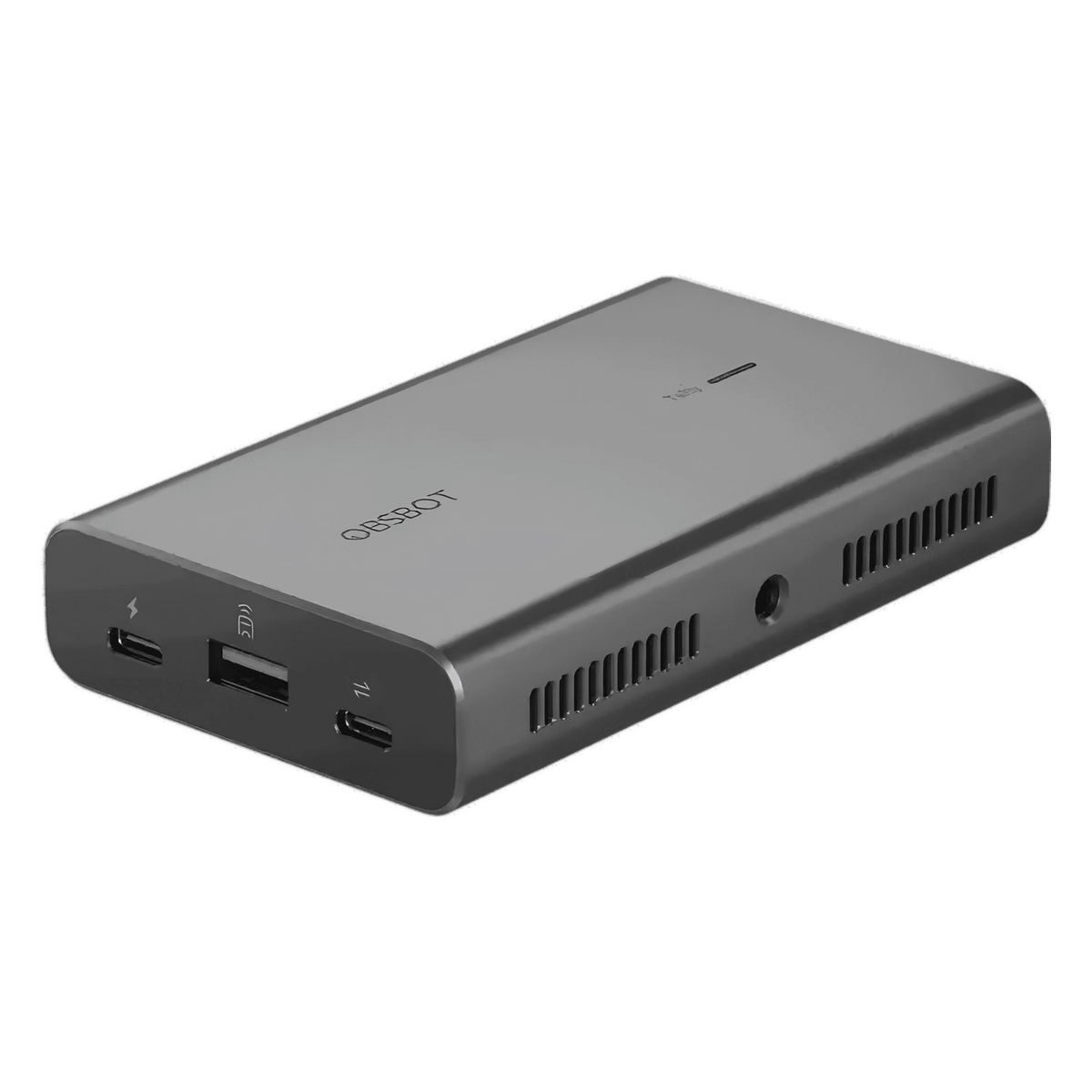

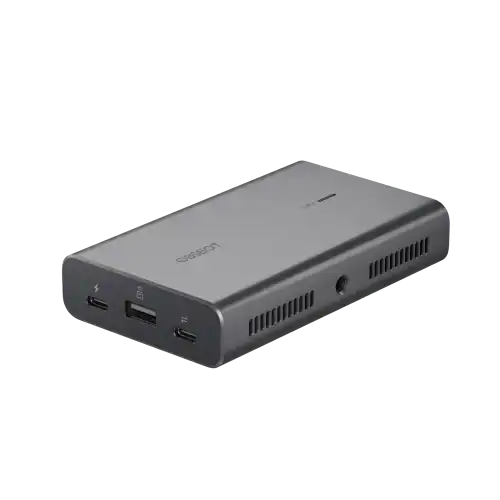

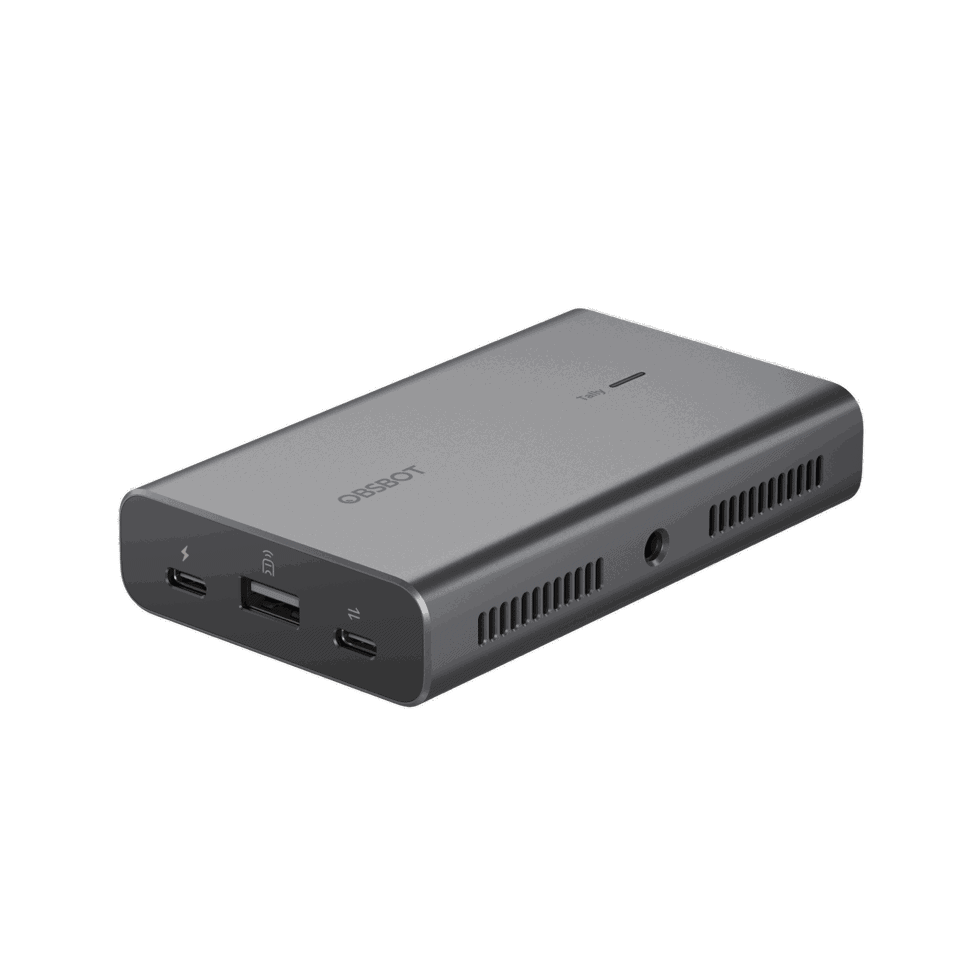

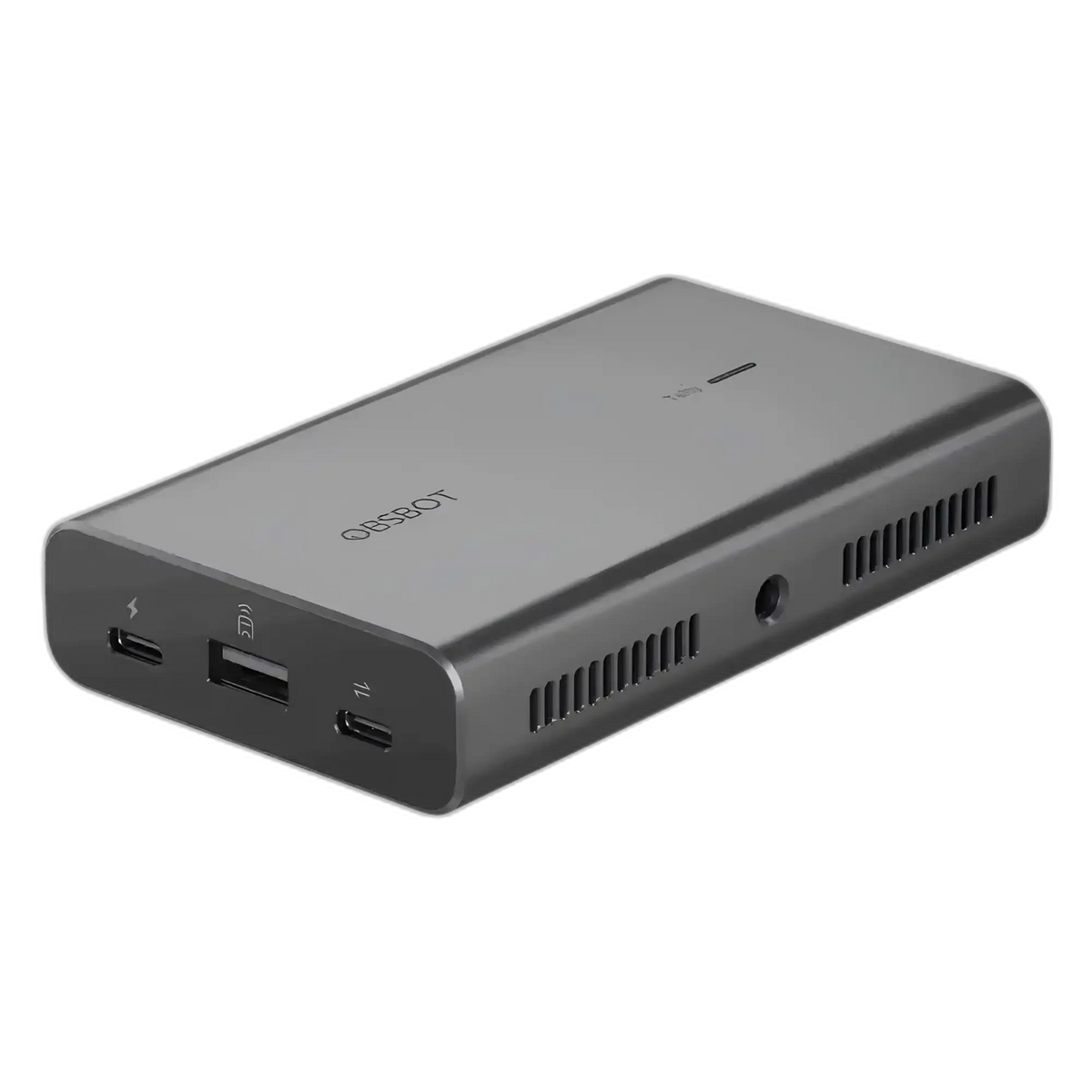

OBSBOT UVC to NDI Adapter
The OBSBOT UVC to NDI Adapter is a compact hardware converter that takes the UVC (USB Video Class) output of an OBSBOT webcam or PTZ camera and publishes it as an NDI source on your local network. Instead of a camera being tied to one nearby computer over USB, its feed becomes available to any NDI-capable device, switcher, or software across the LAN — the standard workflow for live production, houses of worship, lecture capture, and multi-camera streaming setups.
It handles resolutions up to 3840×2160 (4K), plus 1440p, 1080p and 720p, at frame rates up to 60fps, with H.264/H.265 encoding on the network side. A single Gigabit Ethernet (RJ45) connection carries both the NDI video and Power over Ethernet (IEEE 802.3af/at), so no separate power brick is needed at the camera position. A USB-C port provides an alternative power input, a USB-A port accepts the OBSBOT remote and wireless receiver, and a Micro SD slot (up to 512GB) lets you record the stream locally while it is being transmitted. A dedicated tally light shows live status, and the adapter supports VISCA-over-IP for remote pan/tilt/zoom control across the network.
It is designed to work with the OBSBOT Tiny and Meet camera families — including Tiny 2, Tiny SE, Tiny 3, Meet, Meet 2 and Meet SE — making it a straightforward way to move an existing USB camera investment into a professional NDI pipeline. In the box you get the adapter, a USB-C cable, and a USB-C to USB-A adapter.
About OBSBOT: visit the manufacturer at obsbot.com for the official product page, firmware and full technical specifications.
Key features
- Converts a UVC signal to NDI at up to 4K (3840×2160) at 60fps
- Power over Ethernet (IEEE 802.3af/at) — one cable carries power and video
- Onboard Micro SD recording while you stream, plus a status tally light
- Works with OBSBOT Tiny and Meet cameras; VISCA-over-IP remote control
Specifications
| Video resolution |
4K up to, 3840×2160 |
| Frame rate |
60 fps at 4K |
| Storage |
512 GB microSD, up to |
| Power rating |
15 W up to |
| Compatible with |
OBSBOT Tiny 3, Tiny 3 Lite, Tiny 2, Tiny 2 Lite, Tiny SE, Tiny 4K, Tiny, Meet Flip, Meet 2, Meet SE, Meet 4K, Meet |
| Connector |
USB-C 3.0 UVC input (MJPEG/H.264); RJ45 gigabit Ethernet with PoE (IEEE 802.3af/at, 25 W max); USB-C power input (PD 3.0); USB-A 2.0 for a remote receiver; tally light |
| Dimensions |
116 × 70 × 22.5 mm |
| Weight |
202 g / 395.5 g (as listed by OBSBOT) |
In the box
- 1 × OBSBOT UVC to NDI Adapter
- 1 × USB-C Cable
- 1 × USB-C to USB-A Adapter
Product sheet & downloads
