Insta360 Connect TV Mount — put the Connect on the screen

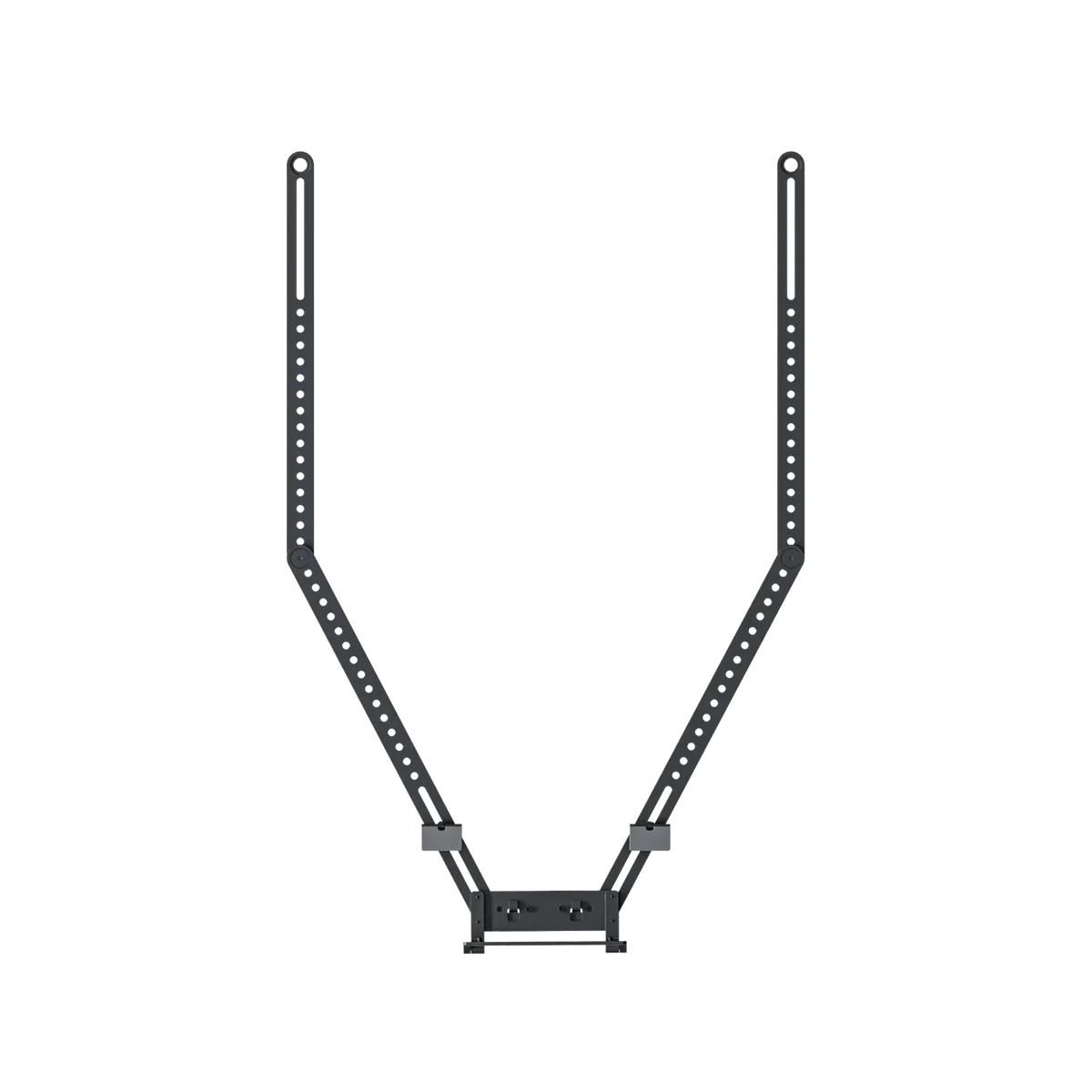

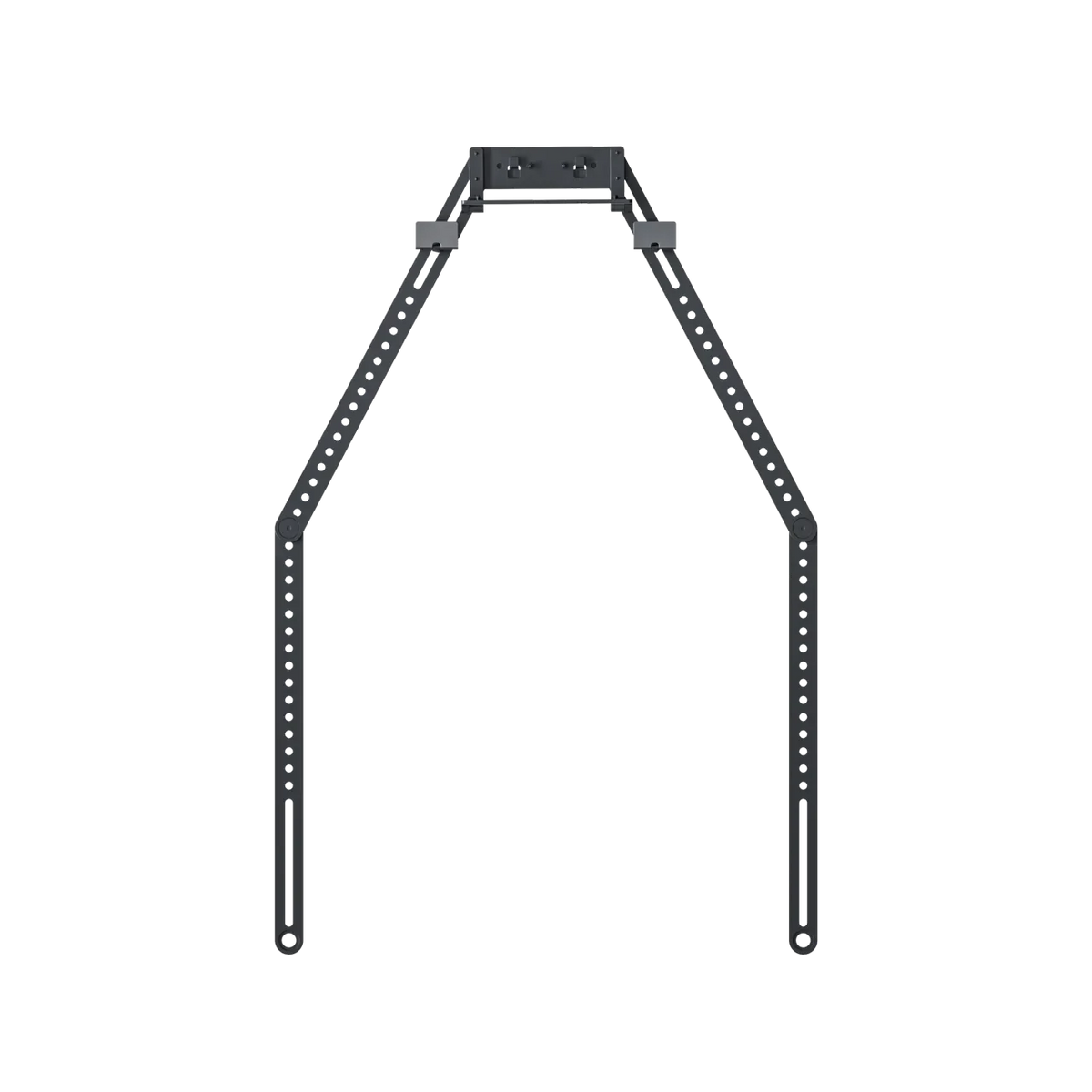

The Insta360 Connect TV Mount fixes the Insta360 Connect video bar above or below a display so cameras, microphones and speaker sit where people look. A VESA-compatible multifunctional arm attaches behind any wall- or stand-mounted display up to 254 cm (100 in) in any aspect ratio, a swivel and 50 mm of depth travel plus 15 mm of front-to-back adjustment aim the bar at the table, and a hook system lets the Connect lift off in seconds for service.
What the Insta360 Connect TV Mount does
Fits almost any display — VESA-compatible arm for screens up to 254 cm, wall- or stand-mounted.
Above or below — mount the Connect at the top or the bottom of the display.
Room coverage — swivel, 50 mm depth and 15 mm front-to-back adjustment line the cameras up with the table.

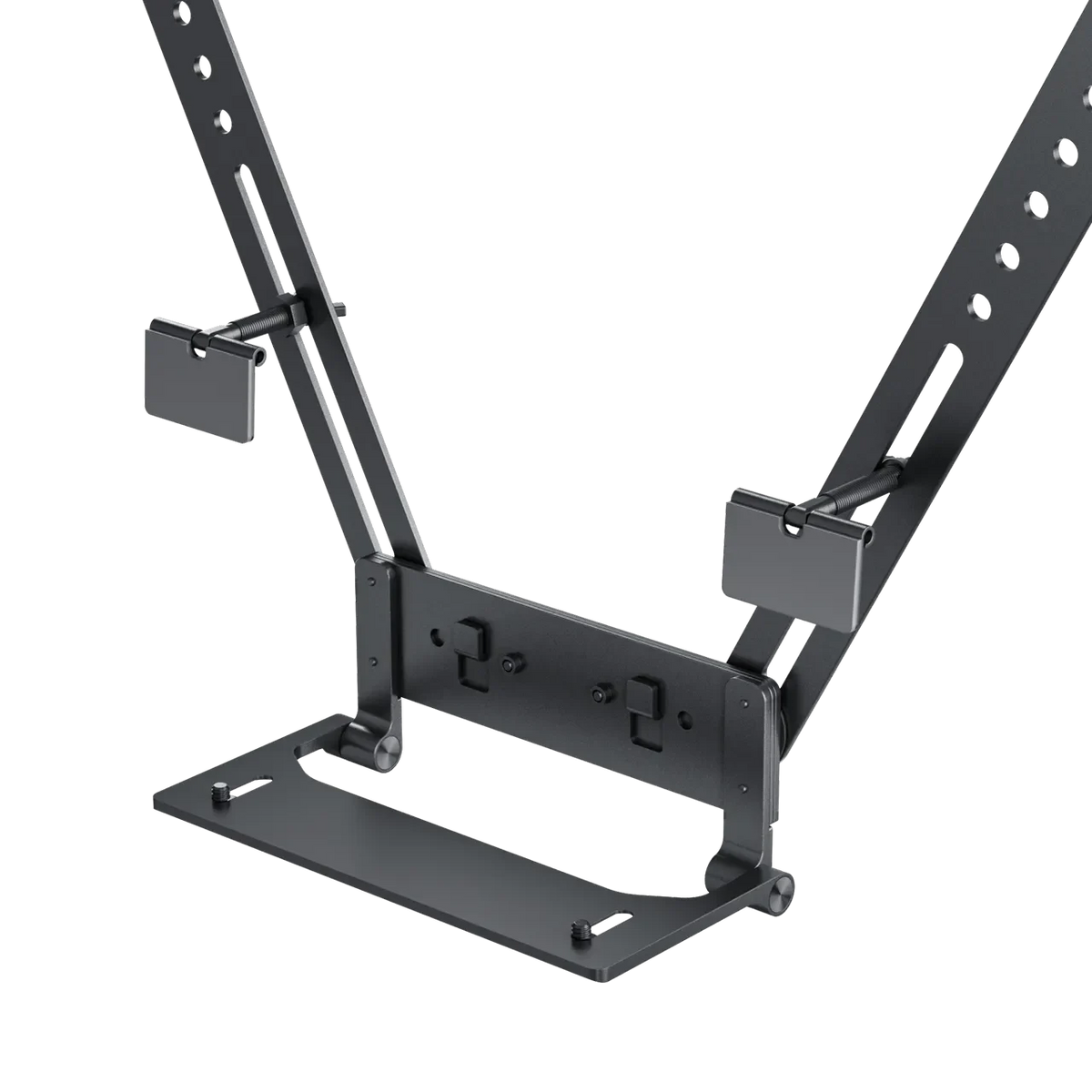

Quick in, quick out — hook system for installation and removal without tools at the bar.
Insta360 Connect TV Mount vs Wall Mount
Mount
Connect TV Mount
Connect Wall Mount
Where
Above or below a wall- or stand-mounted display up to 254 cm (100 in)
Directly on the wall
Fixing
VESA-compatible multifunctional arm, hook system for quick removal
Wall plate with a smooth built-in swivel
Adjustment
Swivel; 50 mm depth travel; 15 mm front-to-back
Any angle; built-in spirit level
Best for
Rooms where the Connect must sit with the screen
Rooms where the display is fixed and the bar needs its own position
Figures are Insta360’s own published specifications. E&OE.
Insta360 Connect TV Mount specifications
Works with
Insta360 Connect (the bar only — not the Touch Panel or remote)
Mounting
VESA-compatible multifunctional arm; above or below the display
Display size
Up to 254 cm (100 in), wall- or stand-mounted, any aspect ratio
Adjustment
Swivel; 50 mm (2.0 in) depth; 15 mm (0.6 in) front-to-back
Fitting
Hook system for quick installation and removal
Model
CINSBABC
Availability and support
The Connect ships with a desk stand; choose this mount or the Insta360 Connect Wall Mount for a permanent install.
Insta360 Connect TV Mount — frequently asked questions
Which VESA pattern does the Insta360 Connect TV Mount use? Insta360 states VESA compatibility and a maximum display size of 254 cm (100 in) but does not publish the bolt pattern; contact us with your display model and we will confirm before you order.
Specifications
Max display
254 cm 100 in
Depth travel
50 mm
Front-to-back
15 mm
Compatible with
Insta360 Connect
Mounting
VESA-compatible multifunctional arm; above or below the display
Adjustment
Swivel; 50 mm depth; 15 mm front-to-back
Display size
Wall- or stand-mounted displays up to 254 cm (100 in), any aspect ratio
