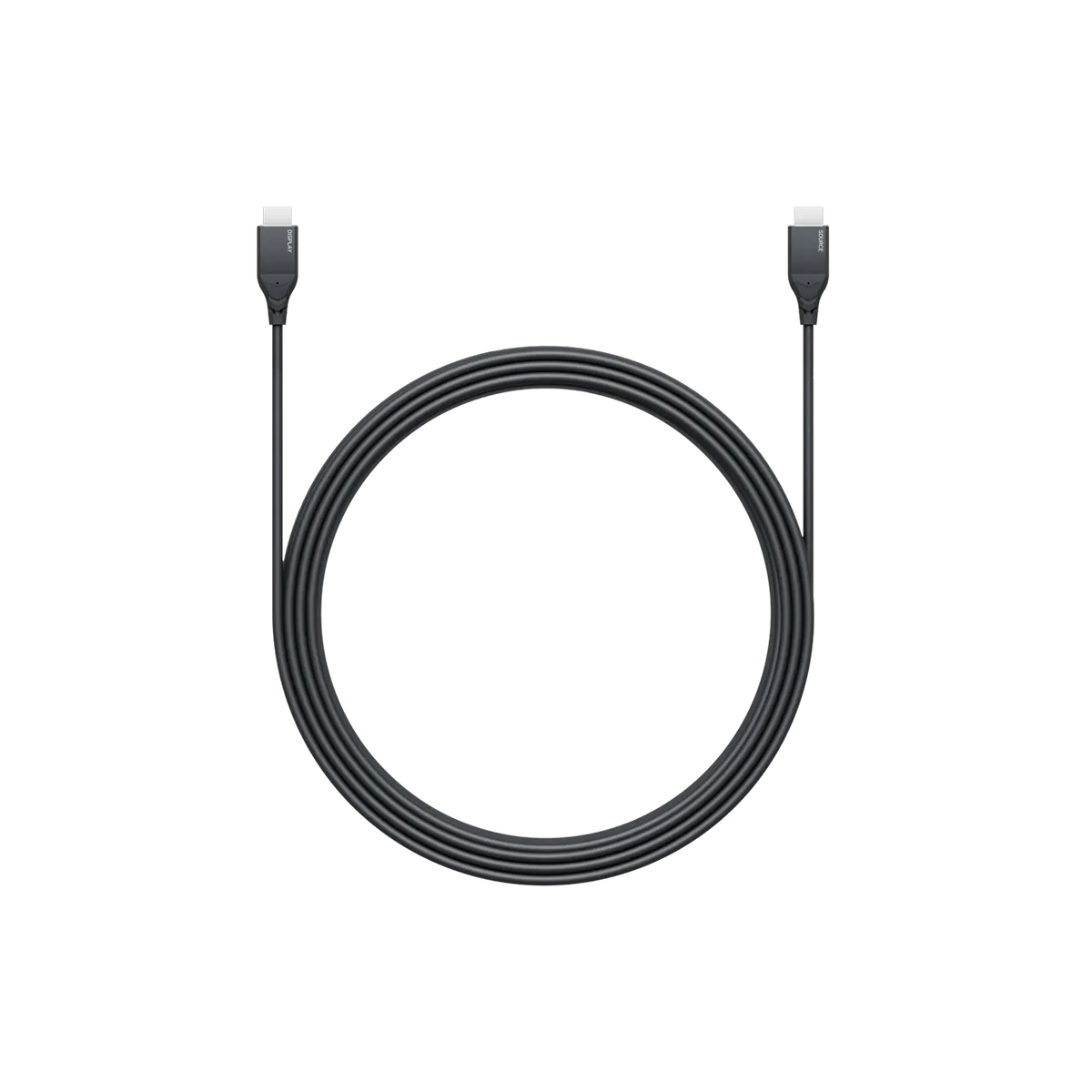

Insta360 Connect HDMI Cable (Extra Long, 10 m) — 10 m of certified reach for the Insta360 Connect
The Insta360 Connect HDMI Cable (Extra Long, 10 m) carries the Insta360 Connect ’s HDMI output to a display up to 10 metres away — or a source into the Connect’s HDMI input — with 18 Gbps of bandwidth so the picture stays uncompressed and uninterrupted over the run. It is directional: the display end goes to the monitor, TV or the Connect’s HDMI input, and the source end to the computer or the Connect’s HDMI 1/2 output.
What the Insta360 Connect HDMI Cable (Extra Long, 10 m) does
18 Gbps bandwidth — 4K30 or 1440p60 from the Connect’s HDMI outputs without compression.

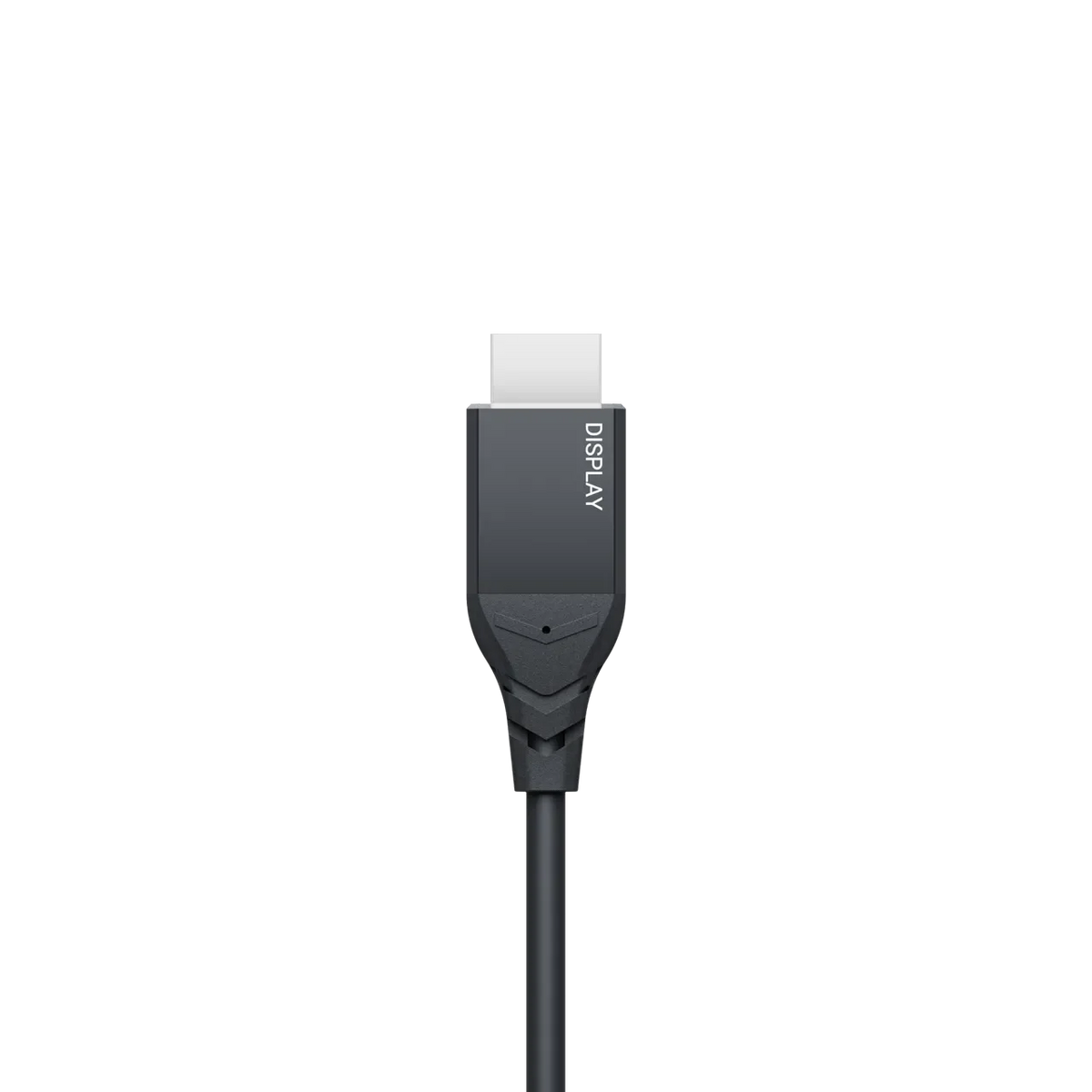

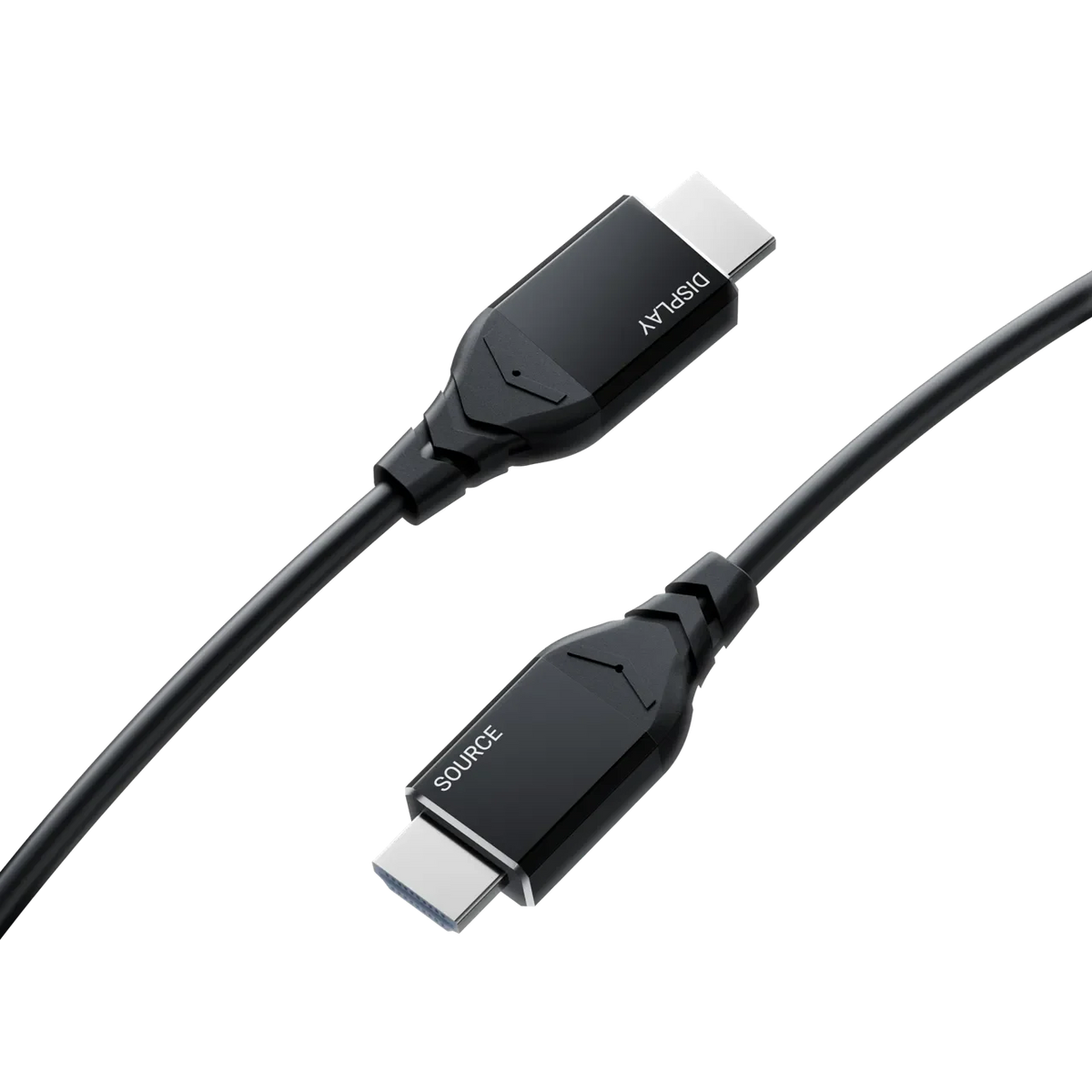

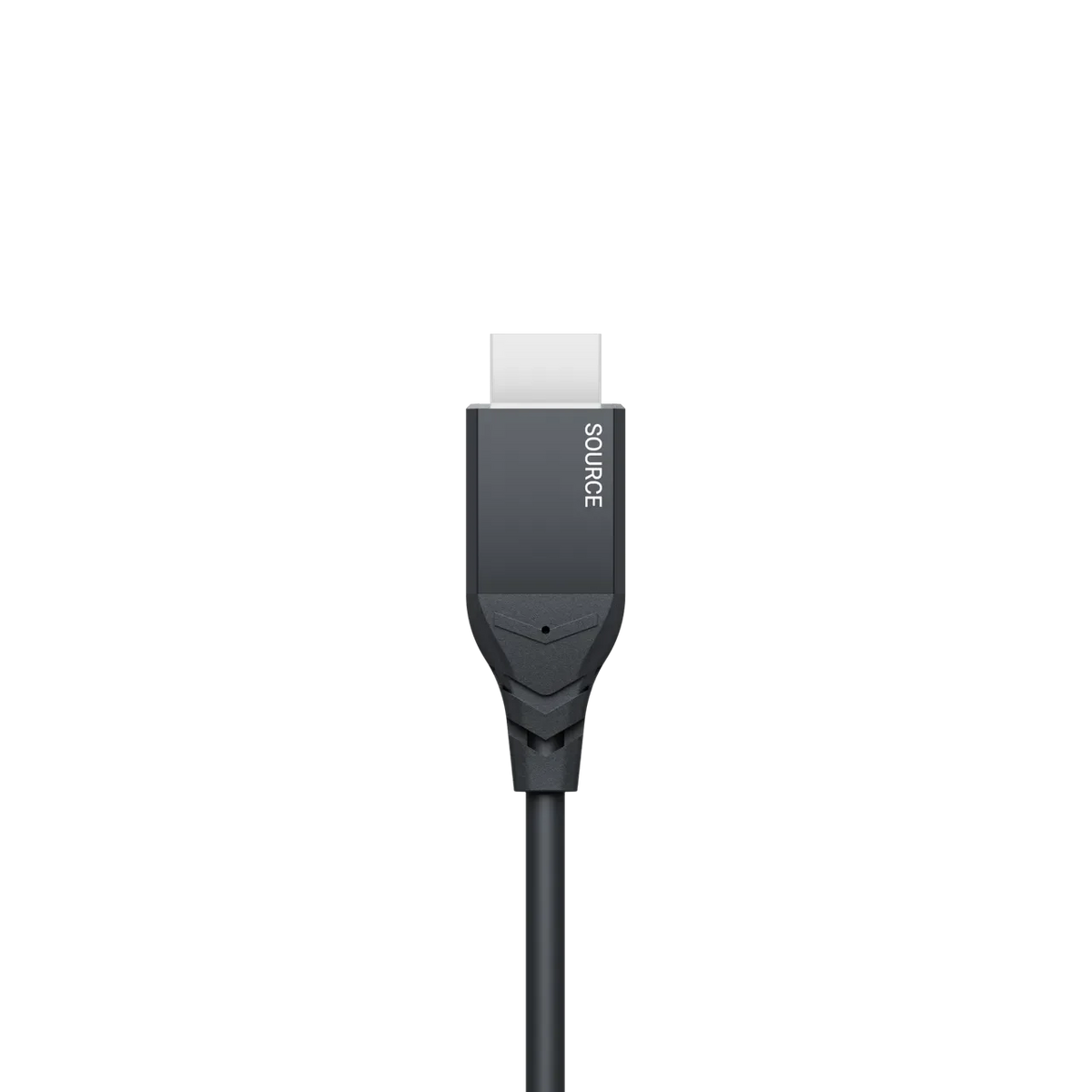

Directional — display end and source end are marked; do not swap them.
Two outputs on the bar — feed two displays from one Connect with two cables.
Built for the building — runs through walls, ceilings, raceways and conduits.
Insta360 Connect cables compared
Three extra-long cables cover the three links a Connect room needs: bar to computer, bar to display, and bar to Touch Panel.
Cable
USB-C to USB-C (10 m / 30 m)
HDMI (10 m / 30 m)
USB-A to USB-C (10 m)
Connects
Insta360 Connect to the computer
Connect HDMI out to a display, or a source to Connect HDMI in
Insta360 Connect to the Touch Panel
Maximum transmission
10 Gbps, USB 2.0 to 3.2
18 Gbps bandwidth
480 Mbps, USB 2.0
Construction
Fibre and copper hybrid, 5 mm
Extra-long HDMI, one-way
Active copper, 4.8 mm
Directional
Yes — host end and device end are marked
Yes — display end and source end are marked
Yes — USB-A to Connect, USB-C to Touch Panel
Runs through
Walls, ceilings, raceways, conduits (17 mm duct)
Walls, ceilings, raceways, conduits
Walls, ceilings, raceways, conduits (20 mm duct)
Figures are Insta360’s own published specifications. E&OE.
Insta360 Connect HDMI Cable (Extra Long, 10 m) specifications
Works with
Insta360 Connect
Length
10 m
Bandwidth
18 Gbps
Direction
One-way: display end to a monitor, TV or the Connect HDMI input; source end to a computer or the Connect HDMI 1/2 output
Connect HDMI output modes
1280 × 720 at 60 fps; 1920 × 1080 at 60 fps; 2560 × 1440 at 60 fps; 3840 × 2160 at 30 fps
Installation
Walls, ceilings, raceways and conduits
Availability and support
Every cable is directional — the marked source and display ends must not be swapped.
Which HDMI version is the Insta360 Connect Extra Long HDMI Cable? Insta360 states 18 Gbps bandwidth and does not label an HDMI version. The Connect outputs up to 3840 × 2160 at 30 fps or 2560 × 1440 at 60 fps, which the cable carries in full.
Which end goes where? The display end connects to your monitor, TV or the Connect's HDMI input; the source end connects to a computer or the Connect's HDMI 1/2 output. The cable is one-way.
Specifications
Max output
4K30 from the Connect HDMI out
Compatible with
Insta360 Connect
Length
10 m
Connector
HDMI to HDMI, one-way (display end and source end marked)
