DS-2TD2138-15/QY_C

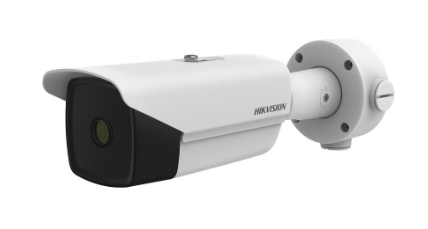

Hikvision Thermal Network Bullet Camera 15mm Fire detection

  • 384 × 288 resolution, 12 μm, VOx UFPA, NETD < 35 mK (25°C, F1.0)
  • Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
  • Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
  • High quality detector with 10 years guarantee
    • Thermal Module
    • Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
    • Resolution384 × 288
    • Pixel Pitch12 μm
    • Spectral Range8 μm to 14 μm
    • NETD< 35 mK (25°C, F1.0)
    • Focal Length15 mm
    • IFOV0.80 mrad
    • Field of View17.0° × 13.0° (H × V)
    • Min. Focusing Distance2.5m
    • ApertureF1.0
    • Digital Zoom2×, 4×, 8×
    • Image Effect
    • Target Coloration Yes. Supported in white hot and black hot mode.
    • Smart Function
    • VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total
    • Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
    • Temperature Range-20°C to 150°C (-4°F to 302°F)
    • Temperature Accuracy± 8°C (± 14.4°F)
    • Video and Audio
    • Main Stream25 fps (1280 × 720, 704 × 576, 640 × 512, 352 × 288)
    • Sub-stream25 fps (704 × 576, 640 × 512, 352 × 288)
    • Third Stream25 fps (1280 × 720, 704 × 576, 640 × 512, 352 × 288)
    • Video Compression

      Main Stream: H.265/H.264

      Sub-Stream: H.265/H.264/MJPEG

      Third Stream: H.265/H.264/MJPEG

    • Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
    • Network
    • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, SRTP, SFTP，SSL
    • APIISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface ,ONVIF (Profile S, Profile G)
    • Security User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), access control, IP address filtering
    • Simultaneous Live View Up to 20 channels
    • ClientiVMS-4200, Hik-Connect
    • Web Browser

      Live view (plug-in allowed): Internet Explorer 11

      Live view (plug-in free): Chrome 57.0 +, Firefox 52.0 +

      Local service: Chrome 57.0 +, Firefox 52.0 +

    • Network Storage MicroSD/SDHC/SDXC card (up to 256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
    • User/Host level Up to 32 users, 3 levels: Administrator, Operator, User
    • Interface
    • Analog Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
    • Alarm Input2, alarm input (0 to 5 VDC)
    • Alarm Output2, alarm output (alarm response actions configurable)
    • Alarm Action SD recording/Relay output/Smart capture/FTP upload/Email linkage
    • Audio Input

      1, 3.5 mm Mic in/Line in interface

      Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10%

    • Audio Output Linear level, impedance: 600 Ω
    • Communication Interface

      1, RJ45 10 M/100 M self-adaptive Ethernet interface

      1, RS-485 interface (half duplex)

    • General
    • Web Client Language

      32 languages

      English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

    • Power Supply

      24 VAC ± 25%, 12 VDC ± 25%, two-core terminal block

      PoE (802.3af, class 3)

    • Power Consumption

      24 VAC ± 25%: 0.13 A to 0.22 A, Max. 5 W

      12 VDC ± 25%: 0.37 A to 0.61 A, Max. 5 W

      PoE (802.3af, class 3): 44 V to 57 V: 0.1 A to 0.13 A, Max. 5.5 W

    • Working Temperature/Humidity

      Temperature: -40 °C to 65 °C (-40 °F to 149 °F)

      Humidity: 90% or less

    • Protection Level

      IP67 Standard

      TVS 6000V lightning protection, surge protection, voltage transient protection

      IK10-rated housing

    • Dimensions351.3 mm × 113.5 mm × 115.2 mm (13.83" × 4.47" × 4.53")
    • Weight Approx. 1.77 kg (3.90 lb)
    • Detection Range Table/Smart Function Range
    • VCA Range for Humans 150 m
    • VCA Range for Vehicles 450 m
