DS-2TD2628-10/QA_C

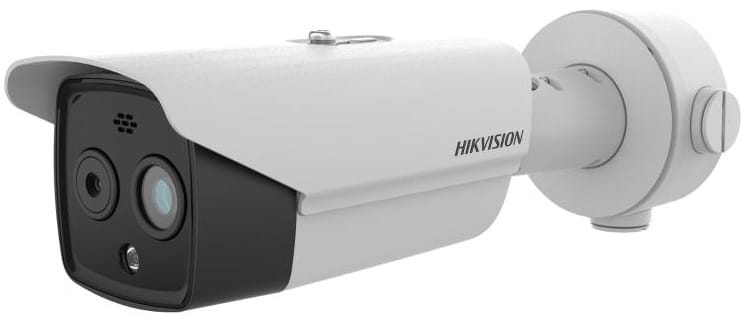

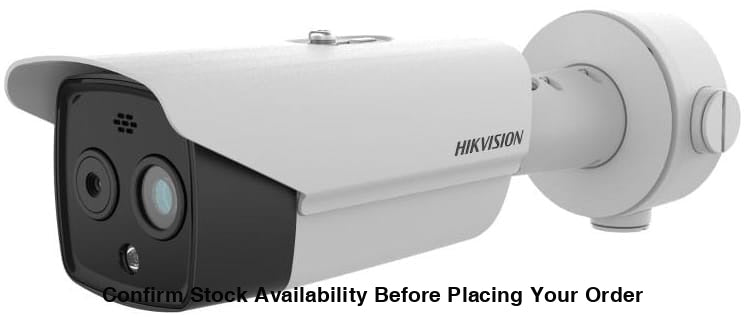

Hikvision Thermal & Optical Bi-spectrum Network Bullet Camera

  • 256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0)
  • Video content analysis: vehicle/human classification
  • Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
  • Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
  • Support smoking detection algorithm
  • Support sun-reflection filter algorithm
  • High quality detector with 10 years guarantee
    • Thermal Module
    • Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
    • Resolution256 × 192
    • Pixel Pitch12 μm
    • Spectral Range8 μm to 14 μm
    • NETD< 40 mK (25°C, F1.0)
    • Focal Length9.7 mm
    • IFOV1.24 mrad
    • Field of View18.0° × 13.5° (H × V)
    • Min. Focusing Distance1.5 m
    • ApertureF1.0
    • Digital Zoom×2, ×4
    • Optical Module
    • Image Sensor1/2.7" Progressive Scan CMOS
    • Resolution2688 × 1520
    • Min. Illumination0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
    • Shutter Speed1 s to 1/100,000 s
    • Focal Length8.0 mm
    • Field of View39.4° × 22.1° (H × V)
    • Aperture (Range)F1.6
    • WDR120 dB
    • Image Effect
    • Target Coloration Yes. Supported in white hot and black hot mode.
    • Illuminator
    • IR Distance Up to 30 m
    • IR Intensity and Angle Automatically adjusted
    • Audible and Visual Alarm
    • White Light Range Up to 30 m
    • Visual Alarm Yes. White light alarm with adjustable flashing frequencies
    • Audio alarm

      Yes, for two types of audible alarm (VCA and Temperature Exception)

      2 preset voice alerts (one for each)

      6 importable user-defined voice alerts (6 options shared in the two types)

    • Smart Function
    • VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
    • Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
    • Temperature Range-20°C to 150°C (-4°F to 302°F)
    • Temperature Accuracy± 8°C (± 14.4°F)
    • General Function Fire detection, smoking detection, sun-reflection filter
    • Video and Audio
    • Main Stream

      Thermal:

      25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)

      Optical:

      50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

      60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

    • Sub-stream

      Thermal:

      25 fps (704 × 576, 640 × 512, 320 × 240)

      Optical:

      50 Hz: 25 fps (704 × 576, 352 × 288)

      60 Hz: 30 fps (704 × 480, 352 × 240)

    • Video Compression

      Main Stream: H.265/H.264

      Sub-Stream: H.265/H.264/MJPEG

    • Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
    • Network
    • ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP,TLS
    • Network Storage MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
    • APIISAPI, HIKVISION SDK,ISUP, and third-party management platform, Open Network Video Inter face, ONVIF (Profile S, Profile G)
    • Simultaneous Live View Up to 20 channels
    • User/Host level Up to 32 users, 3 levels: Administrator, Operator, User
    • Security User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
    • ClientiVMS-4200, Hik-Connect
    • Web Browser

      Live view (plug-in allowed) : Internet Explorer 11

      Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +

      Local service : Chrome 57.0 +, Firefox 52.0 +

    • Interface
    • Alarm Input2, alarm input (0-5 VDC)
    • Alarm Output2, alarm output (alarm response actions configurable)
    • Alarm Action SD recording/Relay output/Smart capture/FTP upload/Email linkage
    • Audio Input

      1, 3.5 mm Mic in/Line in interface

      Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10%

    • Audio Output Linear level, impedance: 600 Ω
    • Communication Interface

      1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

      1, RS-485 interface (half duplex)

    • Analog Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
    • General
    • Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
    • Power Supply

      24 VAC ± 25%, 12 VDC ± 25%, two-core terminal block

      PoE (802.3af, class 3)

    • Power Consumption

      24 VAC ± 25%: 0.8 A, Max.8.5 W

      12 VDC ± 25%: 0.7 A, Max.8.5 W

      PoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W

    • Working Temperature/Humidity

      Temperature: -40°C to 65°C (-40°F to 149°F)

      Humidity: 95% or less

    • Protection Level

      IP67 Standard

      TVS 6000V lightning protection, surge protection, voltage transient protection

      IK10-rated housing

    • Dimensions 321.3 mm × 106.1 mm × 107.0 mm (12.65" × 4.18" × 4.21")
    • Weight1550 g (3.41 lb)
    • Detection Range Table/Smart Function Range
    • VCA Range for Humans 80 m
    • VCA Range for Vehicles 240 m
