IDS-2CD7A45G0/P-IZHSY(4.7-118MM)(O-STD)

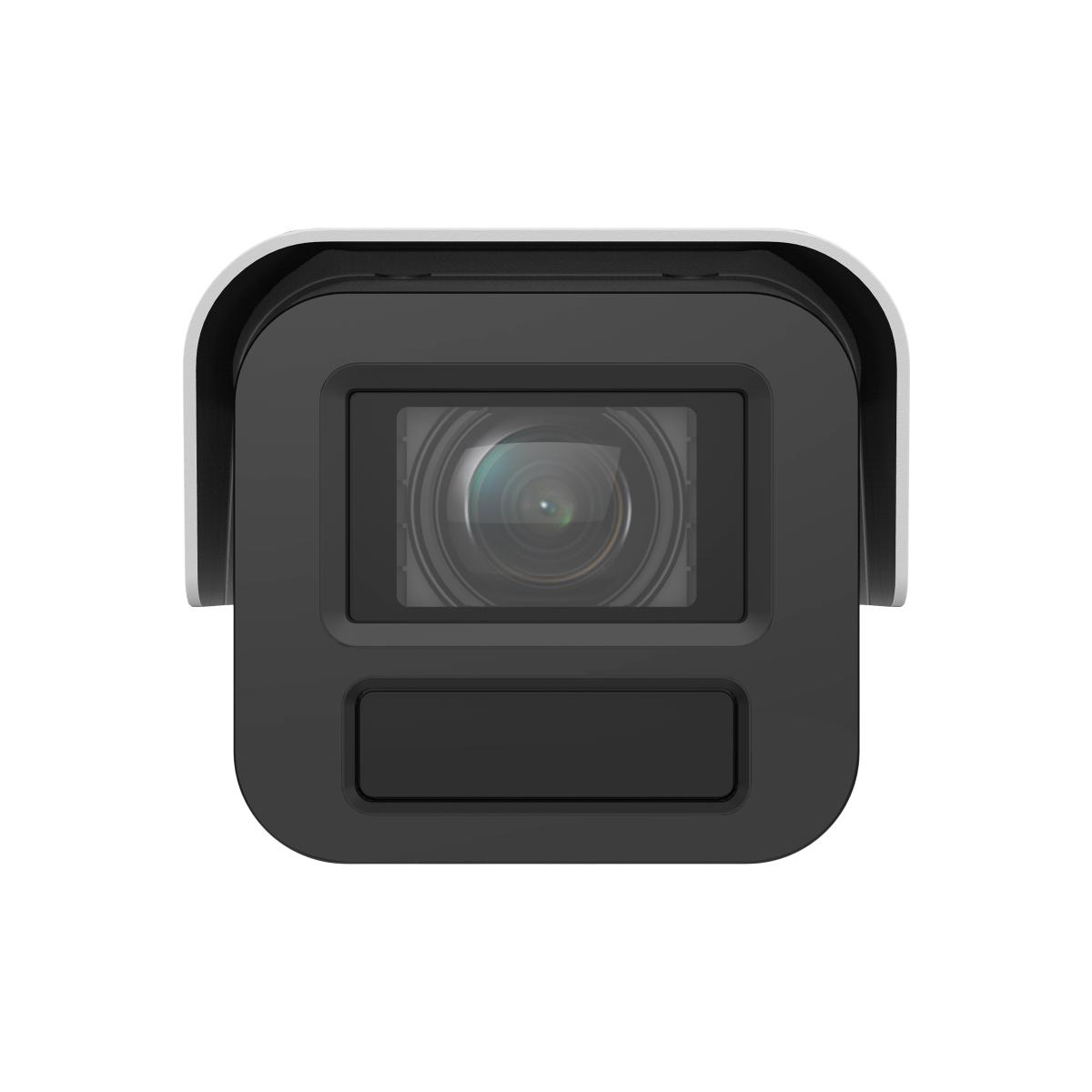

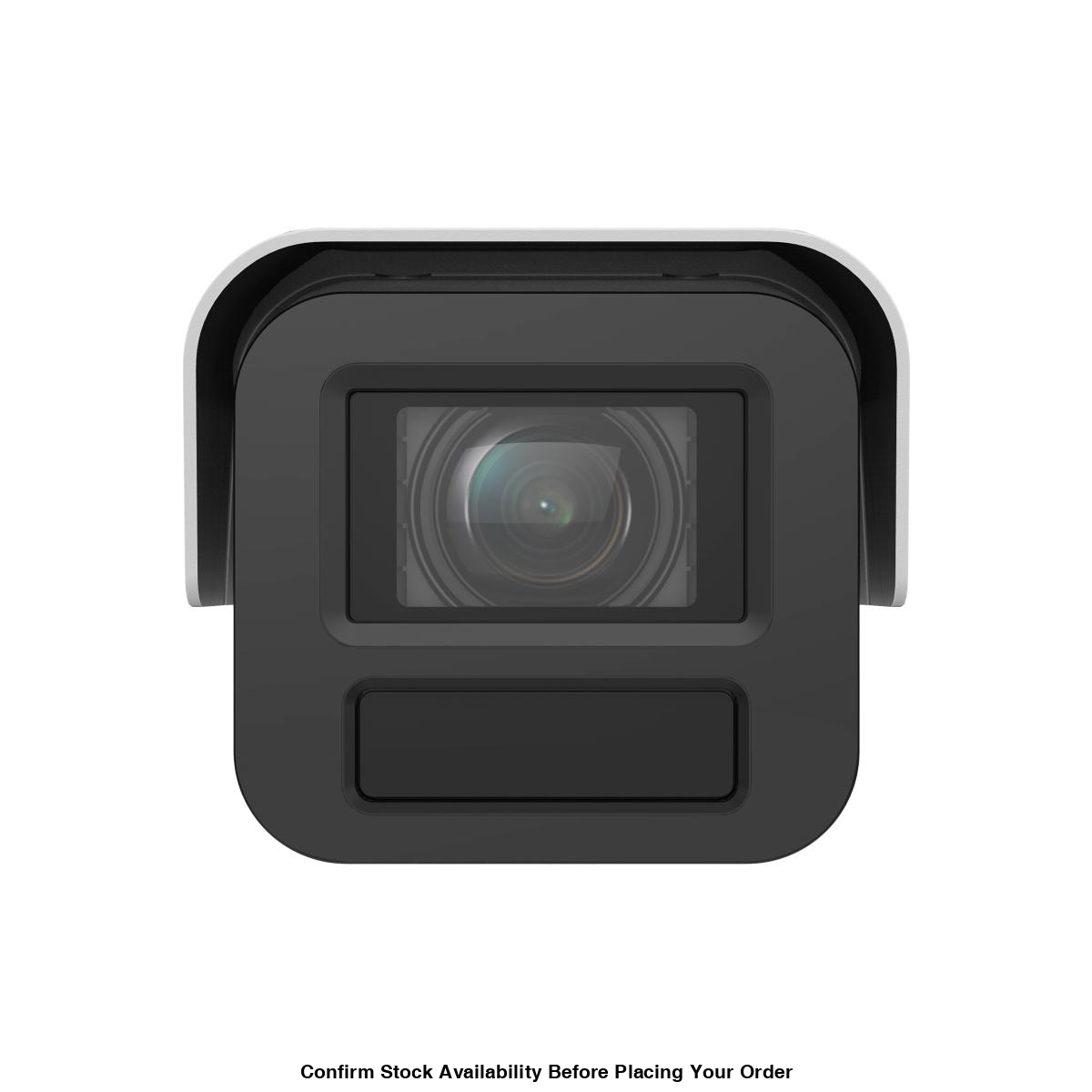

Hikvision 4MP DeepinView ANPR Moto Varifocal Bullet Camera 4.7-118mm

  • High quality imaging with 4 MP resolution
  • 25 × optical zoom captures details in remote area
  • Clear imaging against strong back light due to 140 dB WDR technology
  • Efficient H.265+ compression technology to save bandwidth and storage
  • Built-in heater on the front viewing window to ensure clear image under snowy weather
  • Built-in gyroscope to ensure stable image output
  • Water and dust resistant (IP67) and vandal proof (IK10)
    • Camera
    • Image Sensor1/2.5" Progressive Scan CMOS
    • Max. Resolution2688 × 1520
    • Min. Illumination Color: 0.009 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IR
    • Shutter Time1 s to 1/30,000 s
    • Day & Night IR cut filter
    • Angle Adjustment Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
    • Lens
    • Focal Length & FOV4.7 to 118 mm, horizontal FOV 58° to 2.8°, vertical FOV 32.3° to 1.6°, diagonal FOV 63° to 3°
    • Focus Auto, Semi-auto ,Manual
    • Iris Type P-iris
    • Aperture4.7 to 118 mm: F1.6 to F3.8
    • DORI
    • DORI

      Wide: D (Detect): 106 m, O (Observe): 42.1 m, R (Recognize): 21.2 m, I (Identify): 10.6 m

      Tele: D (Detect): 2200 m, O (Observe): 873 m, R (Recognize): 440 m, I (Identify): 220 m

    • Illuminator
    • Supplement Light Type IR
    • Supplement Light Range Up to 200 m
    • Smart Supplement Light Yes
    • IR Wavelength850 nm
    • Video
    • Main Stream

      50 Hz:

      25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

      50 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

      60 Hz:

      30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

      60 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

    • Sub-Stream

      50 Hz: 25 fps (704 × 576, 640 × 480)

      60 Hz: 30 fps (704 × 480, 640 × 480)

    • Third Stream

      50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

      60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

    • Fourth Stream

      50 Hz: 25 fps (704 × 576, 640 × 480)

      60 Hz: 30 fps (704 × 480, 640 × 480)

    • Fifth Stream

      50 Hz: 25 fps (704 × 576, 640 × 480)

      60 Hz: 30 fps (704 × 480, 640 × 480)

    • Video Compression

      Main stream: H.265+/H.265/H.264+/H.264,

      Sub-stream: H.265/H.264/MJPEG,

      Third stream: H.265/H.264,

      Fourth stream: H.265/H.264/MJPEG,

      Fifth stream: H.265/H.264/MJPEG

    • Video Bit Rate32 Kbps to 8 Mbps
    • H.264 Type Baseline Profile, Main Profile, High Profile
    • H.265 Type Main Profile
    • Bit Rate Control CBR,VBR
    • Scalable Video Coding (SVC)H.264 and H.265 encoding
    • Region of Interest (ROI)4 fixed regions for each stream
    • Target Cropping Yes
    • e-PTZ Support Patrol and Auto Tracking settings
    • Audio
    • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
    • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
    • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
    • Audio Type Mono sound
    • Environment Noise Filtering Yes
    • Network
    • Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ARP, Web Socket, Web Sockets
    • Simultaneous Live View Up to 20 channels
    • API Open Network Video Interface (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
    • User/Host

      Up to 32 users

      3 user levels: administrator, operator, and user

    • Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
    • Network Storage

      NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

      Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

    • ClientiVMS-4200,Hik-Connect,Hik-Central
    • Web Browser

      Plug-in required live view: IE 10, IE 11,

      Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,

      Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

    • Image
    • Image Parameters Switch Yes
    • Image Settings Rotate mode, saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser
    • Day/Night Switch Day, Night, Auto, Schedule, Alarm Trigger, Video Trigger
    • Wide Dynamic Range (WDR)140 dB
    • Image EnhancementBLC,HLC,3D DNR, Distortion Correction, Defog
    • SNR≥ 52 dB
    • Privacy Mask8 programmable polygon privacy masks
    • Image Stabilization EIS (Built-in gyroscope to improve EIS performance)
    • Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
    • Interface
    • Video Output1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
    • Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
    • On-Board Storage Built-in memory card slot, support microSD/micro SDHC/micro SDXC card, up to 1 TB
    • Audio

      1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

      1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

    • Alarm2 inputs, 2 outputs (max. 24 VDC, 1 A)
    • RS-485-Y: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
    • Reset Key Yes
    • Power Output-Y: 12 VDC, max. 100 mA
    • Event
    • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, video quality diagnosis, exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),vibration detection
    • Smart Event scene change detection, audio exception detection, defocus detection
    • Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning
    • Deep Learning Function
    • Perimeter Protection

      Line crossing, intrusion, region entrance, region exiting

      Support alarm triggering by specified target types (human and vehicle)

      Support combined event alarm triggering

    • Metadata Intrusion detection, line crossing detection, region entrance detection, region exiting detection ,road traffic
    • Road Traffic and Vehicle Detection

      Smart Function:

      Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)

      Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.

      Support vehicle and non-vehicle counting

      Blocklist and allow list: up to 10,000 records

      LPR Countries/Regions:

      4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions

      Accuracy (Under recommended installation and lighting conditions):

      License plate recognition rate ≥98%

      Capture rate ≥99%

      Driving direction accuracy rate ≥98%

      Vehicle Capture Speed:

      Front installation in checkpoint scenario: up to 120 km/h

      Side installation: up to 80 km/h

      Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode

    • Parking Management

      Support distant view mode and close view mode

      Distant view mode: support status detection on up to 40 parking spaces, parking duration detection, and vacant parking space alarm

      Close view mode: support status detection on up to 4 parking spaces, license plate recognition, parking timeout alarm, and vacant parking space alarm

    • General
    • Power

      -IZHSY:

      12 VDC ± 20%, 1.73 A, max. 20.7 W, three-core terminal block

      24 VAC ± 20%, 1.31 A, max. 19.9 W, three-core terminal block

      PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.46 A to 0.35 A, max. 19.5 W

      -IZHS:

      12 VDC ± 20%, 1.62 A, max. 19.4 W, two-core terminal block

      24 VAC ± 20%, 1.21 A, max. 18.7 W, two-core terminal block

      PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.43 A to 0.32 A, max. 18.2 W

    • Material Aluminum alloy body
    • Dimension

      With -Y: Ø140 mm × 378.4 mm (Ø5.5" × 14.9\")

      Without -Y: Ø144.1 mm × 375.2 mm (Ø5.7 × 14.8\")"

    • Package Dimension425 mm × 190 mm × 180 mm (16.7" × 7.5" × 7.1")
    • Weight

      With -Y: Approx. 2160 g (4.8 lb.)

      Without -Y: Approx. 2130 g (4.7 lb.)

    • With Package Weight

      With -Y: Approx. 3310 g (7.3 lb.)

      Without -Y: Approx. 3200 g (7.1 lb.)

    • Storage Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Startup and Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
    • General Function Heartbeat, mirror, flash log, password reset via email, pixel counter
    • Heater Yes
    • De-icing Yes
    • Device Management Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces
