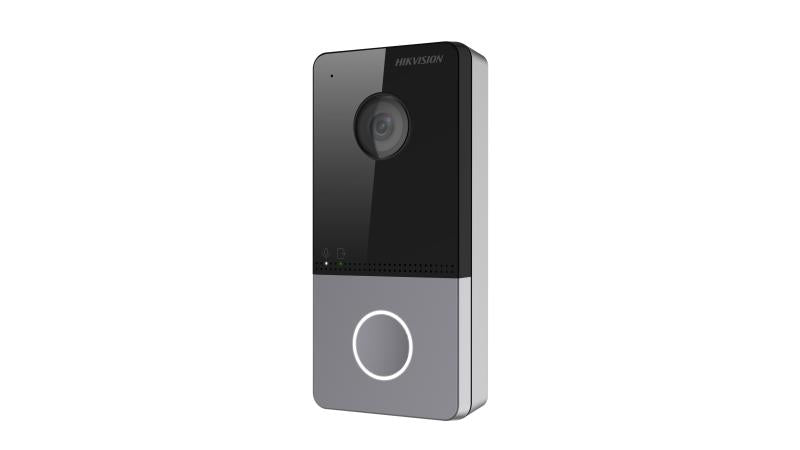

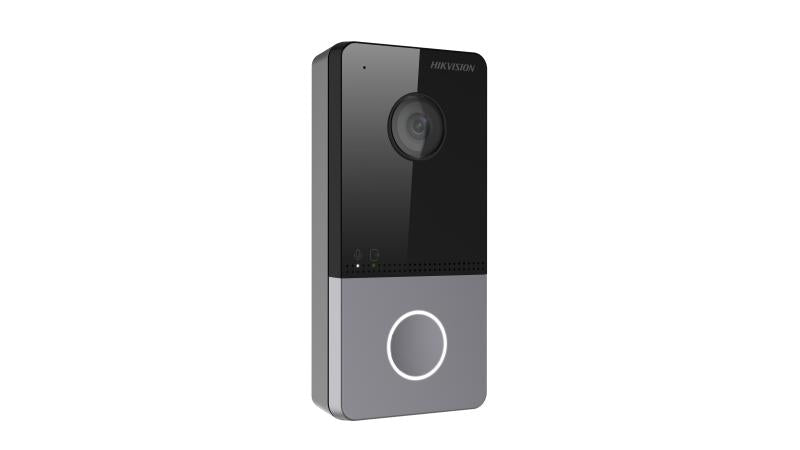

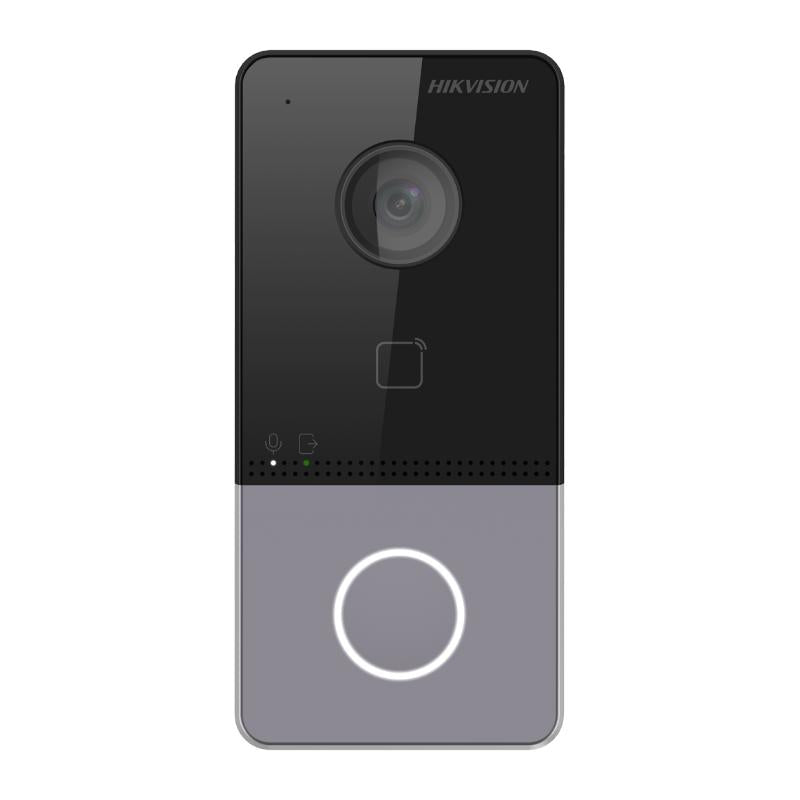

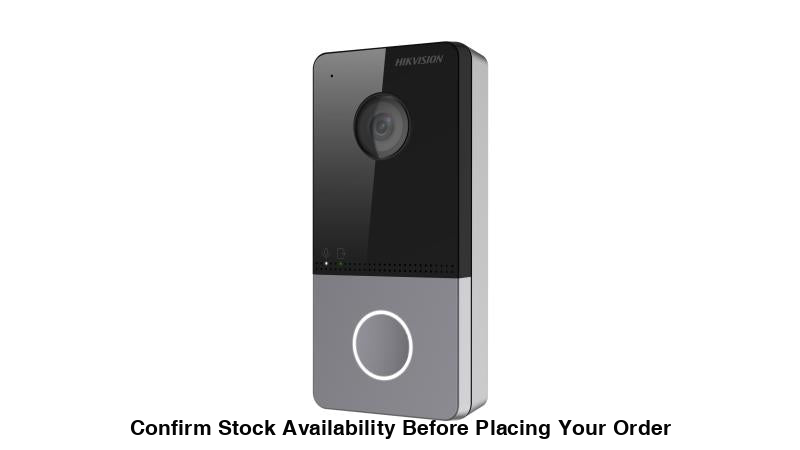

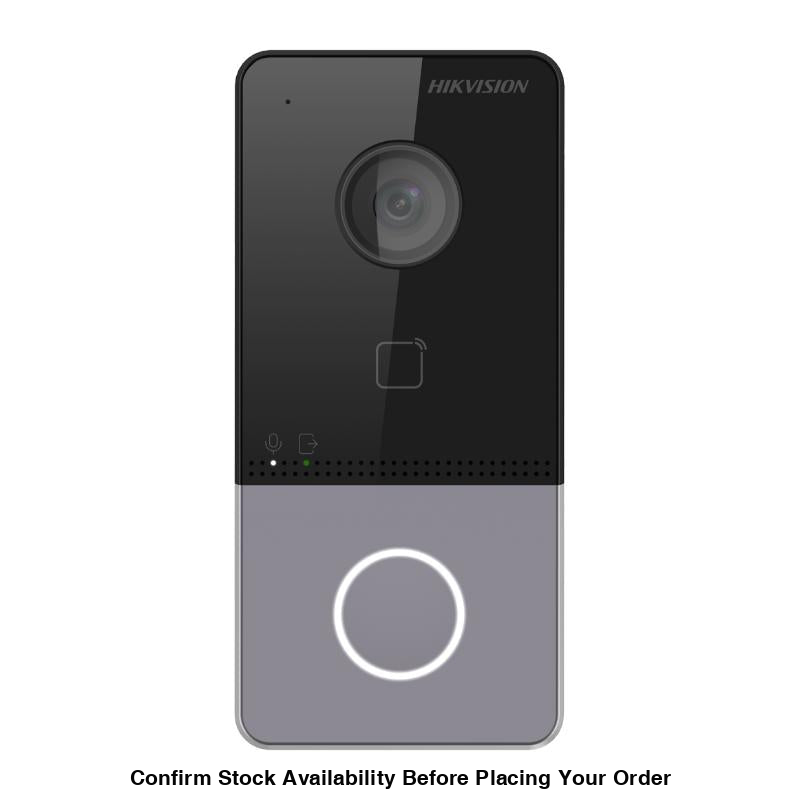

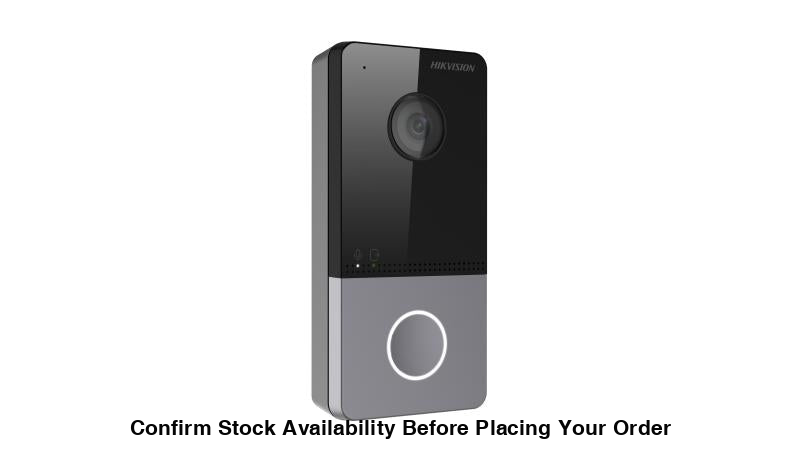

Hikvision Plastic Villa Door Station with card read

Hikvision Plastic Villa Door Station with card read

Regular price R 3,045.00 ZAR
Regular price Sale price R 3,045.00 ZAR
Sale Sold out
Shipping calculated at checkout.
  • Master Card
  • Visa Card
  • Visa Electron
  • Maestro cardMaestro Card
  • Instant Eft Instant Eft
  • MobiCredMobiCred

SKU:DS-KV6113-WPE1

Hikvision Plastic Villa Door Station with card read

  • Support Wifi (Only available in DS-KV6113-WPE1 model), convenient setting up and no wiring required
  • Support web configuration
  • Nice industry design, IP65, 2 indicator integrated;
  • Internal Mifare card reader, 1-ch Indoor station access control;
  • Noise suppression and echo cancellation
  • 2MP HD Camera with IR supplement
  • Standard PoE/ 12 VDC
    • System parameters
    • Operating system Embedded Linux operation system
    • ROM16 M, 32 M
    • RAM256 M
    • CPU Embedded MCU Processor
    • Display parameters
    • Screen size/
    • Operation method/
    • Type/
    • Resolution/
    • Video parameters
    • Lens1
    • Resolution

      Main stream: 1920 × 1080p, 720p

      Sub stream: 704 × 576

    • FOV Horizontal: 129° Vertical: 75°
    • WDR True WDR
    • Supplement light IR supplement
    • Video compression standardH.264
    • Audio parameters
    • Audio compression standardG.711 U
    • Audio input Built-in omnidirectional microphone
    • Audio output Built-in loudspeaker
    • Audio compression bitrate64 Kbps
    • Audio quality Noise suppression and echo cancellation
    • Volume adjustment Adjustable
    • Capacity
    • User capacity/
    • Face capacity/
    • Card capacity/
    • Linked network camera capacity1
    • Network parameters
    • Communication protocol TCP/IP, RTSP
    • Wired network10/100 Mbps self-adaptive Ethernet
    • Wi-Fi standard Support
    • Bluetooth version Not supported.
    • 3G/4G standard/
    • Received frequency2.4 to 2.4835GHz
    • Transmitted frequency2.4 to 2.4835 GHz
    • Bandwidth20 to 40 MHz
    • Frequency power

      802.11b:16dBm +/- 1.5dBm

      802.11g:15dBm +/- 1.5dBm

      802.11n(ht20):14dBm +/- 1.5dBm

      802.11n(ht40):12dBm +/- 1.5dBm

    • Device interfaces
    • Alarm input4
    • Network interface1
    • TAMPER1
    • Exit button1
    • RS-4851
    • USB0
    • Wiegand0
    • TF card0
    • Alarm output0
    • Lock control1
    • Door contact input1
    • Power interface1
    • Performances
    • Multi-factor authentication2000
    • General
    • Button1
    • Installation Surface mounting
    • Indicator2
    • Weight265g
    • Protective levelIP65
    • Working temperature-40° C to +55° C(-40° F to 131° F)
    • Working humidity10% to 95%
    • Dimensions138 mm × 65 mm × 27 mm
    • Battery/
    • Application environment Outdoor
    • Power consumption< 10 W
    • Language English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian
